CS 5018 (59AM658-150) - Cub Cadet 18" Chainsaw Carburetor Parts Diagram

18" Chainsaw

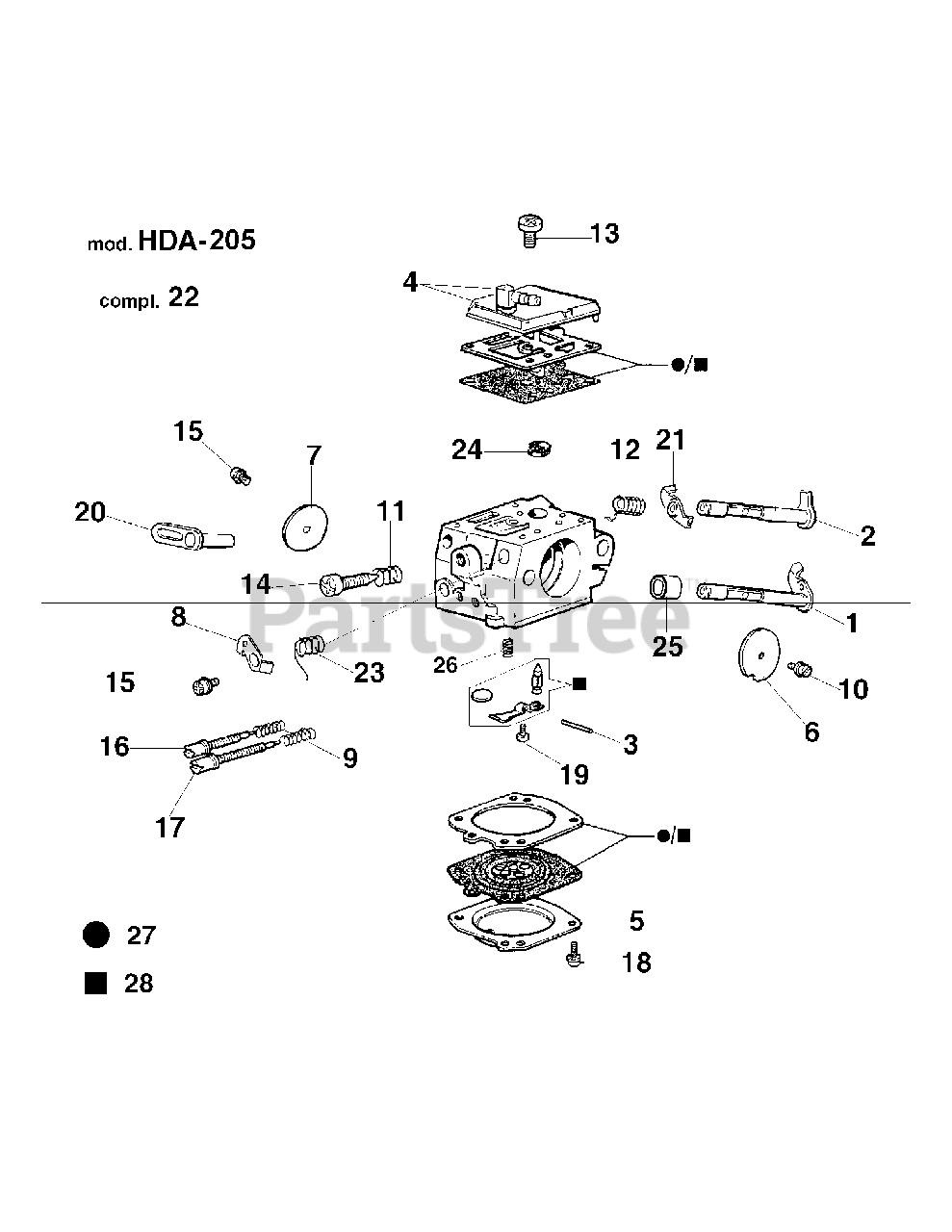

Carburetor Parts Diagram

  • Title

1

Cub Cadet EM-50070155

THROTTLE SHAFT

$

$

Not available

2

Cub Cadet EM-50070157

STARTER SHAFT

$

$

Not available

3

Cub Cadet EM-003300201

SPINDLE

$

$

Not available

4

Cub Cadet EM-50070154

COVER

$

$

Not available

5

Cub Cadet EM-50070153

COVER

$

$

Not available

6

Cub Cadet EM-50070156

THROTTLE VALVE

$

$

Not available

7

Cub Cadet EM-50070159

CHOKE SHUTTER

$

$

Not available

8

Cub Cadet EM-50070160

THROTTLE LEVER

$

$

Not available

9

Cub Cadet EM-095000147

SPRING

$

$

Not available

10

Cub Cadet EM-380000338

SCREW

$

$

Not available

11

Cub Cadet EM-094600148

SPRING

$

$

Not available

12

Cub Cadet EM-50070166

SPRING

$

$

Not available

13

Cub Cadet EM-50010109

SCREW

$

$

Not available

14

Cub Cadet EM-50070163

SCREW

$

$

Not available

15

Cub Cadet EM-50010141

SCREW

$

$

Not available

16

Cub Cadet EM-50070173

SCREW "H"

$

$

Not available

17

Cub Cadet EM-50070172

SCREW "L"

$

$

Not available

18

Cub Cadet EM-035000162

SCREW

$

$

Not available

19

Cub Cadet EM-003300202

SCREW

$

$

Not available

20

Cub Cadet EM-50070158

STARTER LEVER

$

$

Not available

21

Cub Cadet EM-50070171

LEVER

$

$

Not available

22

Cub Cadet EM-50070011A

CARBURETOR

$

$

Not available

23

Cub Cadet EM-50070165

SPRING

$

$

Not available

24

Cub Cadet EM-003300204

FILTER

$

$

Not available

25

Cub Cadet EM-50070169

BUSHING

$

$

Not available

26

Cub Cadet EM-50070164

SPRING

$

$

Not available

27

Cub Cadet EM-50010122A

DIAPH./GASKETSET

$

$

Not available

28

Cub Cadet EM-50010123A

REPAIR KIT

$

$

Not available
