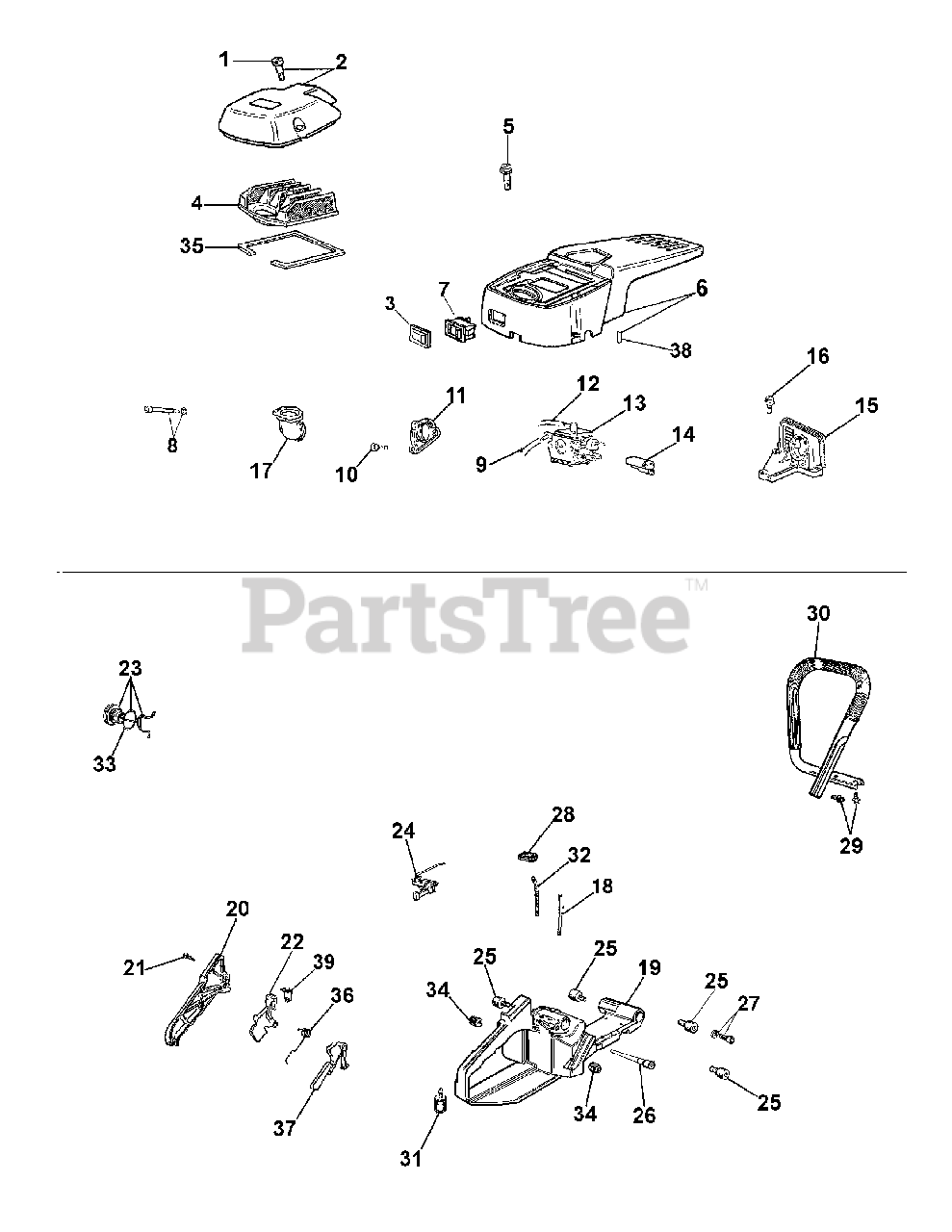

CS 5720 (59AN659-150) - Cub Cadet 20" Chainsaw Fuel Tank, Air Filter, Chain Parts Diagram

20" Chainsaw

Fuel Tank, Air Filter, Chain Parts Diagram

  • Title

1

Cub Cadet EM-093000468A

SCREW

$

$

Not available

2

Cub Cadet EM-50010288

AIR FILTER COVER

$

$

Not available

3

Cub Cadet EM-2317013

SWITCH GUARD.

$

$

Not available

4

Cub Cadet EM-098000092

AIR FILTER

$

$

Not available

5

Cub Cadet EM-099900296

SCREW

$

$

Not available

6

Cub Cadet EM-50012120

CYLINDER COVER
(Superseded to EM-50022055R)

$

$

Not available

7

Cub Cadet EM-2317021

SWITCH
(Superseded to EM-2317021R)

$30.99

$

In Stock, only 1 left!

0

8

Cub Cadet EM-61052009

SCREW

$

$

Not available

9

Cub Cadet EM-50010093

FUEL LINE

$59.99

$

Usually ships in 3-6 days

0

10

Cub Cadet EM-3960057

SCREW

$

$

Not available

11

Cub Cadet EM-50010028

SPACER

$

$

Not available

12

Cub Cadet EM-094000215A

FUEL LINE

$

$

Not available

13

Cub Cadet EM-2318780B

CARBURETOR
(Superseded to EM-50010302A)

$

$

Not available

14

Cub Cadet EM-50010125

SCREW GUIDE

$

$

Not available

15

Cub Cadet EM-50010017

SUPPORT

$

$

Not available

16

Cub Cadet EM-097000092

SCREW
(Superseded to EM-097000092AR)

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet EM-50010027

MANIFOLD

$

$

Not available

18

Cub Cadet EM-61060012

FUEL LINE

$

$

Not available

19

Cub Cadet EM-50010280

FUEL/OIL TANK
(Superseded to EM-50010227FR)

$

$

Not available

20

Cub Cadet EM-50010279

COVER

$

$

Not available

21

Cub Cadet EM-3960040

SCREW

$

$

Not available

22

Cub Cadet EM-52010079

THROTTLE LEVER
(Superseded to EM-52010092)

$

$

Not available

23

Cub Cadet EM-52022005

CAP ASSY

$

$

Not available

24

Cub Cadet EM-52022048A

THROTTLE LEVER

$

$

Not available

25

Cub Cadet EM-097000038A

ANULAR BUFFER.
(Superseded to EM-097000038AR)

$37.99

$

Usually ships in 3-6 days

0

26

Cub Cadet EM-099900083A

TANKBREATHER

$

$

Not available

27

Cub Cadet EM-005100913

SCREW

$

$

Not available

28

Cub Cadet EM-50010029

GROMMET

$

$

Not available

29

Cub Cadet EM-097000061A

SCREW

$

$

Not available

30

Cub Cadet EM-50010189

HANDLE

$

$

Not available

31

Cub Cadet EM-50010218

FUEL FILTER

$27.99

$

Usually ships in 3-6 days

0

32

Cub Cadet EM-50010093

FUEL LINE

$59.99

$

Usually ships in 3-6 days

0

33

Cub Cadet EM-099900090

O-RING

$

$

Not available

34

Cub Cadet EM-50010061

ANULAR BUFFER
(Superseded to EM-50010061R)

$

$

Not available

35

Cub Cadet EM-097000056

GASKET

$

$

Not available

36

Cub Cadet EM-097000028

SPRING
(Superseded to EM-097000028R)

$

$

Not available

37

Cub Cadet EM-52010077

LEVER

$

$

Not available

38

Cub Cadet EM-094500183

TUBE

$

$

Not available

39

Cub Cadet EM-50010157

PLATE

$

$

Not available

Cub Cadet 737-0320

CCC 2-CYCLE OIL 2.6 OZ BLT 50:1

Note: (Not shown)

$

$

Not available

Cub Cadet 490-700-0006

BAR 20'' PRO

Note: NLA (Not shown)

$

$

Not available

Cub Cadet 490-700-0009

CHAIN 20'' PRO

Note: NLA (Not shown)

$

$

Not available

Cub Cadet 731-04544

SHEATH-CHAIN & BAR 20''

Note: (Not shown)

$

$

Not available

Cub Cadet EM-50012128

LABEL KIT

Note: (Not shown)

$

$

Not available
