CS-620 P - Echo Chainsaw (SN: C32026001001 - C32026999999) Flywheel, Ignition Parts Diagram

Chainsaw

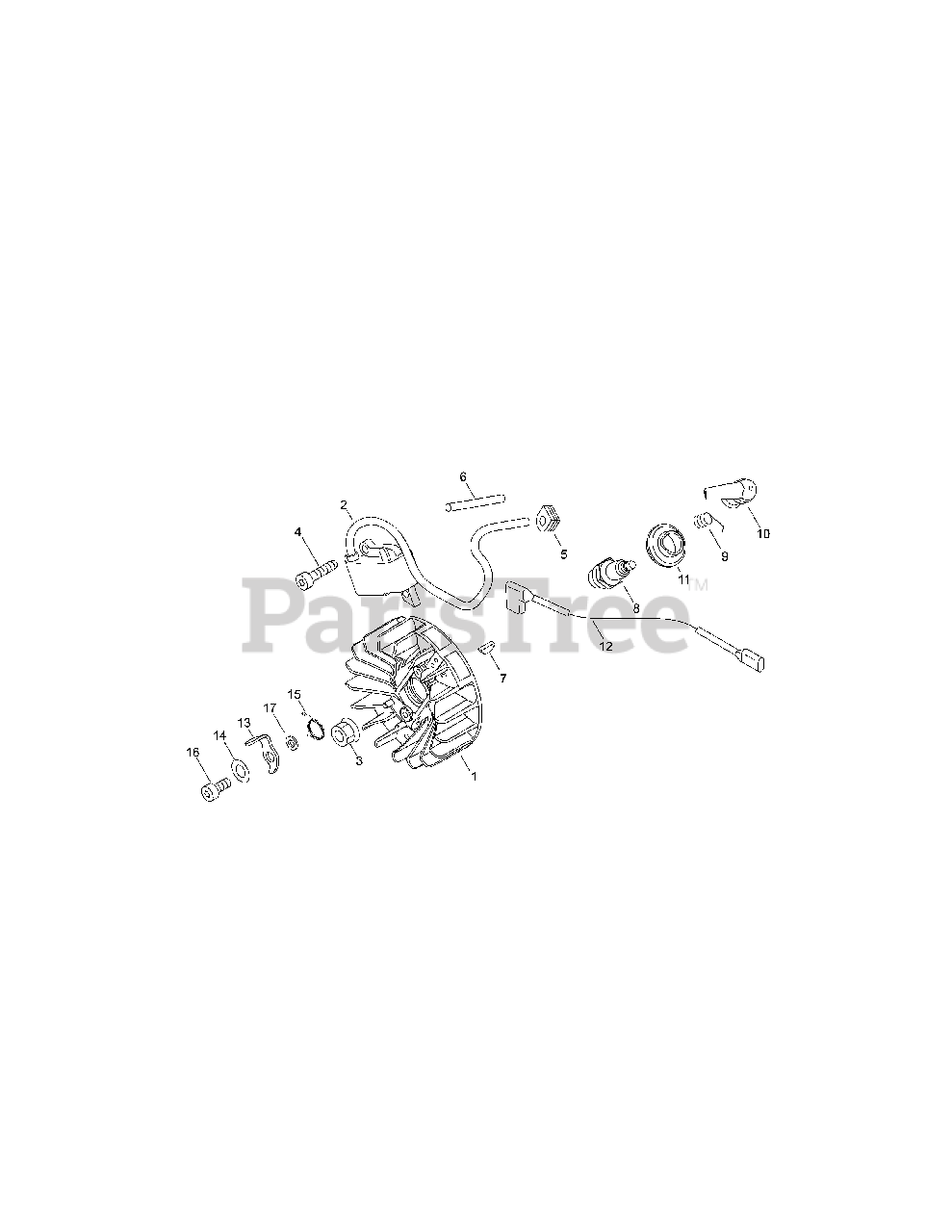

Flywheel, Ignition Parts Diagram

  • Title

1

Echo A409000360

ROTOR, MAGNETO

$120.99

$

Usually ships in 2-4 days

0

2

Echo P021044000

COIL, IGNITION
(Superseded to A411001430)

$107.99

$

Usually ships in 2-4 days

0

3

Echo 90051500008

NUT, FLANGE 8

$1.99

$

In Stock, Qty 5

0

4

Echo V805000000

BOLT, TORX 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 15611004920

BUSHING

$0.99

$

In Stock, Qty 20+

0

6

Echo V475004130

TUBE

$3.49

$

In Stock, only 1 left!

0

7

Echo 10014230830

KEY, WOODRUFF

$1.49

$

In Stock, Qty 18

0

8

Echo 15901019830

PLUG, SPARK (BPM-8Y)

$3.49

$

In Stock, Qty 20+

0

9

Echo A426000010

TERMINAL,SPARKPLUG

$1.49

$

In Stock, Qty 20+

0

10

Echo A427000013

CAP,SPARK PLUG

$2.99

$

In Stock, Qty 20+

0

11

Echo A429000040

COVER,CAP

$6.99

$

In Stock, only 4 left!

0

12

Echo V485001091

LEAD

$4.49

$

In Stock, only 1 left!

0

13

Echo 17721819830

PAWL, STARTER

$4.49

$

In Stock, Qty 7

0

14

Echo 90060300005

WASHER 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 17723435430

SPRING, RETURN

$2.49

$

In Stock, only 3 left!

0

16

Echo V835000000

BOLT, TORX 5

$1.99

$

In Stock, Qty 16

0

17

Echo 17724704630

SPACER, RATCHET

$1.99

$

In Stock, Qty 14

0
