CS-620 PW - Echo Chainsaw (SN: C69315001001 - C69315999999) Chain Brake Parts Diagram

Chainsaw

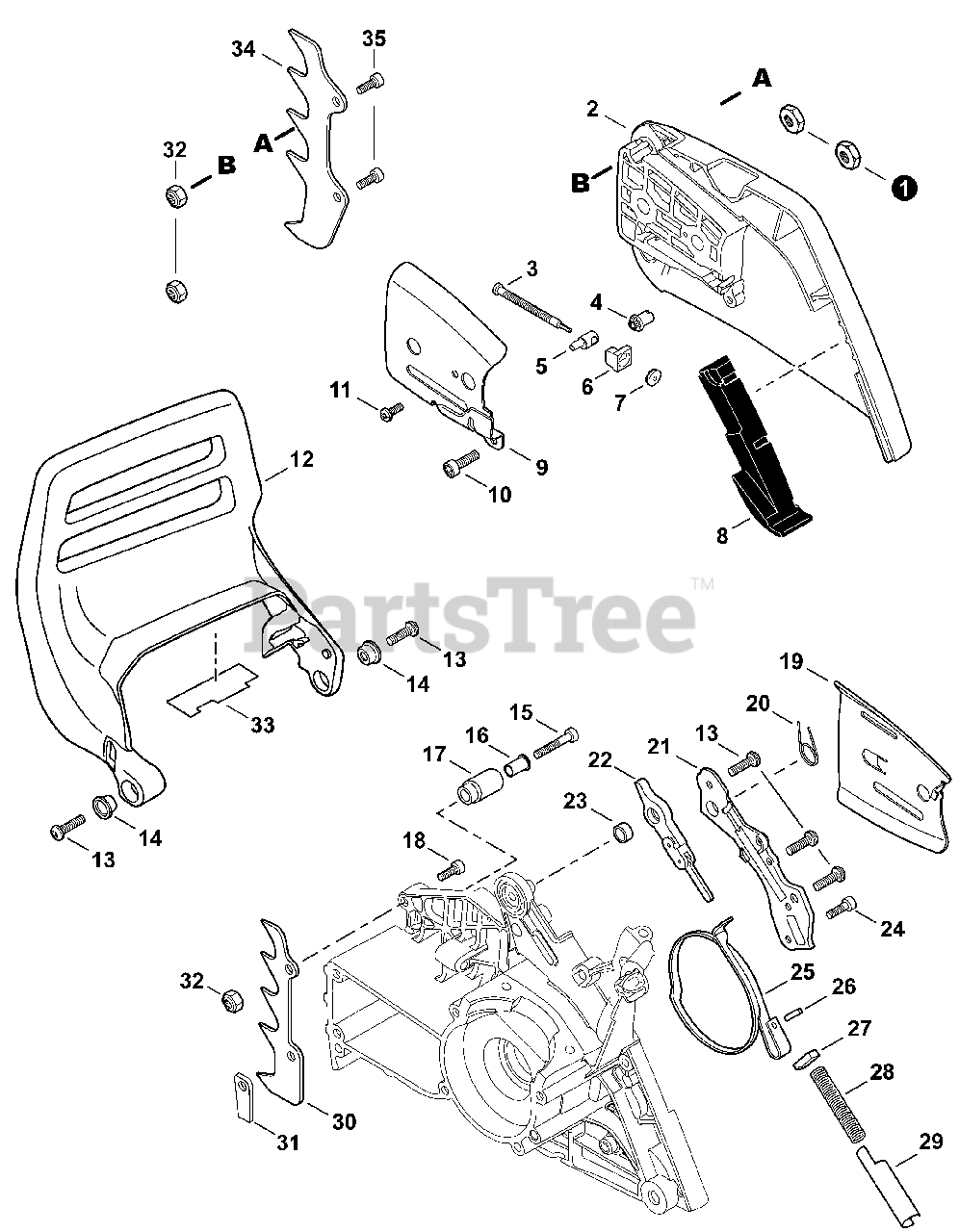

Chain Brake Parts Diagram

  • Title

1

Echo V265000250

NUT 8

$0.99

$

In Stock, Qty 20+

0

2

Echo C300000991

GUARD, SPROCKET
(Superseded to C300001200)

$51.99

$

In Stock, only 1 left!

0

3

Echo V203002140

SCREW, CHAIN TENSION 63 MM

$5.99

$

In Stock, Qty 20+

0

4

Echo V651001040

GEAR, BEVEL

$17.99

$

In Stock, Qty 9

0

5

Echo C309000160

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

6

Echo V355000800

COLLAR 8

$1.49

$

In Stock, Qty 20+

0

7

Echo V651001050

GEAR, BEVEL

$8.49

$

In Stock, Qty 10

0

8

Echo C302000011

CUSHION

$11.99

$

In Stock, only 2 left!

0

9

Echo C305000101

PLATE, GUIDE - OUTER

$11.99

$

In Stock, only 4 left!

0

10

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

11

Echo 9132503005

SCREW 3×5

$0.99

$

In Stock, Qty 20+

0

12

Echo C320000182

LEVER, BRAKE

$30.99

$

In Stock, Qty 20+

0

13

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

14

Echo V356000440

COLLAR 11.2×16.2×T0.6

$3.49

$

In Stock, Qty 20+

0

15

Echo V805000020

BOLT, TORX 5×35
(Superseded to Discontinued)

$

$

Not available

16

Echo V353000120

COLLAR 5

$4.99

$

In Stock, only 2 left!

0

17

Echo C310000030

CHAIN CATCHER

$2.49

$

Usually ships in 2-4 days

0

18

Echo V805000250

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

19

Echo C305000111

PLATE, GUIDE - INNER

$14.99

$

In Stock, only 1 left!

0

20

Echo V452000400

SPRING, TORSION

$3.49

$

In Stock, Qty 12

0

21

Echo C345000283

COVER, BRAKE

$8.49

$

In Stock, Qty 6

0

22

Echo C334000110

CONNECTOR, BRAKE
(Superseded to C334000111)

$16.99

$

In Stock, Qty 11

0

23

Echo V356000470

SPACER 12×10×T: 1.0

$6.49

$

In Stock, only 1 left!

0

24

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

25

Echo C328000121

BAND, BRAKE

$14.99

$

In Stock, Qty 6

0

26

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

27

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 15

0

28

Echo V450000740

SPRING, COMPRESSION Ø12×70.5

$14.99

$

In Stock, only 1 left!

0

29

Echo C603000220

PLATE, SIDE

$3.99

$

In Stock, only 1 left!

0

30

Echo C304000290

SPIKE, BUMPER

$20.99

$

Usually ships in 2-4 days

0

31

Echo V376001890

SPACER

$1.49

$

Usually ships in 2-4 days

0

32

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

33

Echo V341000131

SHIELD, HEAT 75×27×0.15

$2.99

$

In Stock, Qty 11

0

34

Echo C304000300

SPIKE, BUMPER

$20.99

$

In Stock, only 1 left!

0

35

Echo V805000300

BOLT, TORX 5×12

$1.49

$

In Stock, Qty 20+

0
