CS-802 S - Echo Chainsaw Oil Tank Parts Diagram

Chainsaw

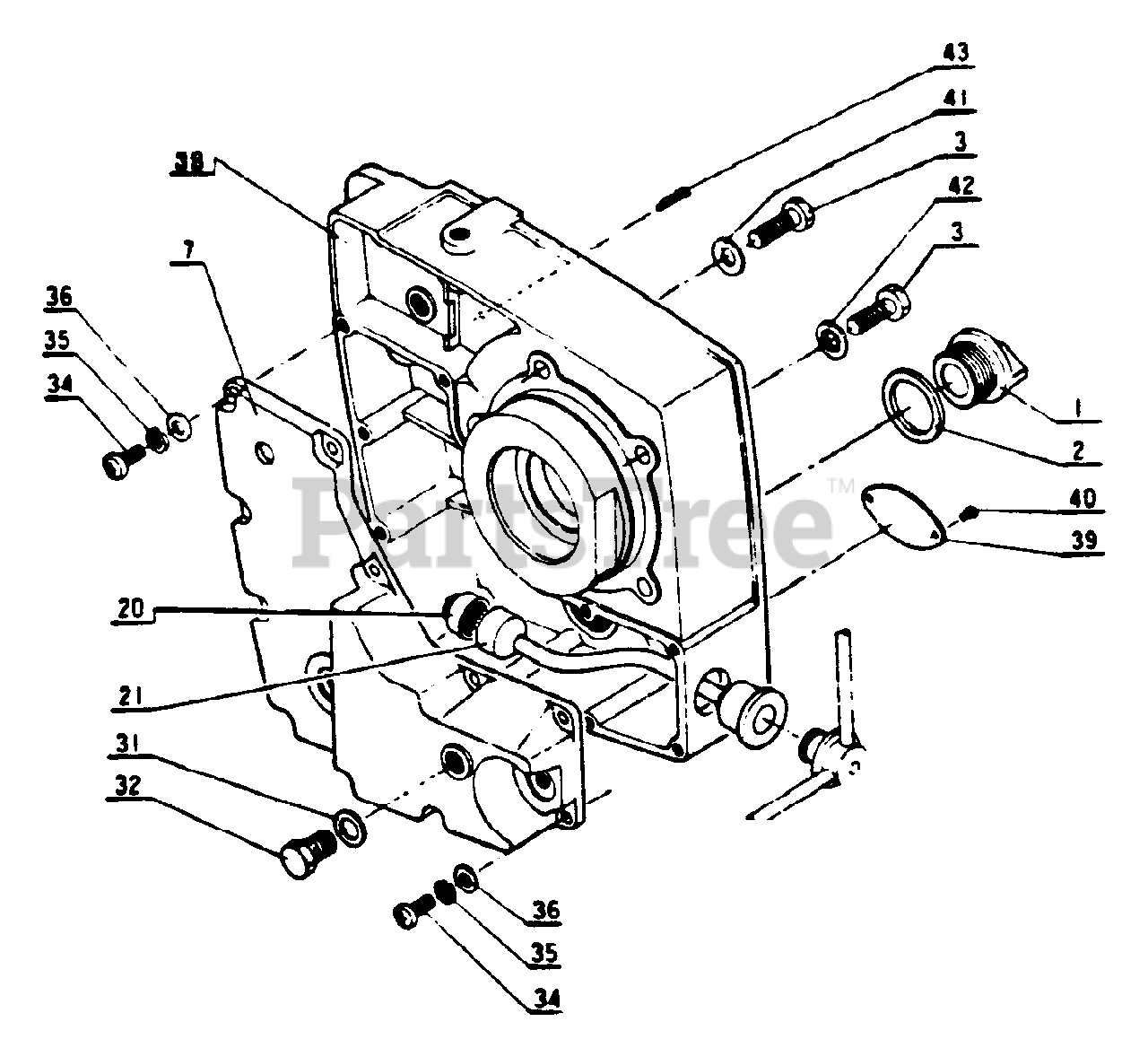

Oil Tank Parts Diagram

  • Title

1

Echo 43601300430

CAP
(Superseded to 43601300330)

$

$

Not available

2

Echo 43601200430

GASKET, CAP

$0.99

$

Usually ships in 2-4 days

0

3

Echo 10024400430

BOLT
(Superseded to Discontinued)

$

$

Not available

7

Echo 43602000630

TANK, OIL
(Superseded to Discontinued)

$

$

Not available

20

Echo 43621000332

FILTER, OIL

$4.99

$

Usually ships in 2-4 days

0

21

Echo 43721000430

PIPE, OIL - INNER
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

31

Echo 43721900130

GASKET
(Superseded to Discontinued)

$

$

Not available

32

Echo 90010008012

BOLT - 8X12
(Superseded to Discontinued)

$

$

Not available

34

Echo 90021004012

SCREW - 4X12
(Superseded to 90022004012)

$0.99

$

Usually ships in 2-4 days

0

35

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

36

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 16

0

38

Echo 10020500630

CRANKCASE
(Superseded to Discontinued)

$

$

Not available

39

Echo 89001000630

PLATE, MODEL
(Superseded to Discontinued)

$

$

Not available

40

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available

41

Echo 10024700430

WASHER
(Superseded to Discontinued)

$

$

Not available

42

Echo 10024600430

WASHER
(Superseded to Discontinued)

$

$

Not available

43

Echo 90030020015

PIN, SPLIT -- 2X15
(Superseded to Discontinued)

$

$

Not available
