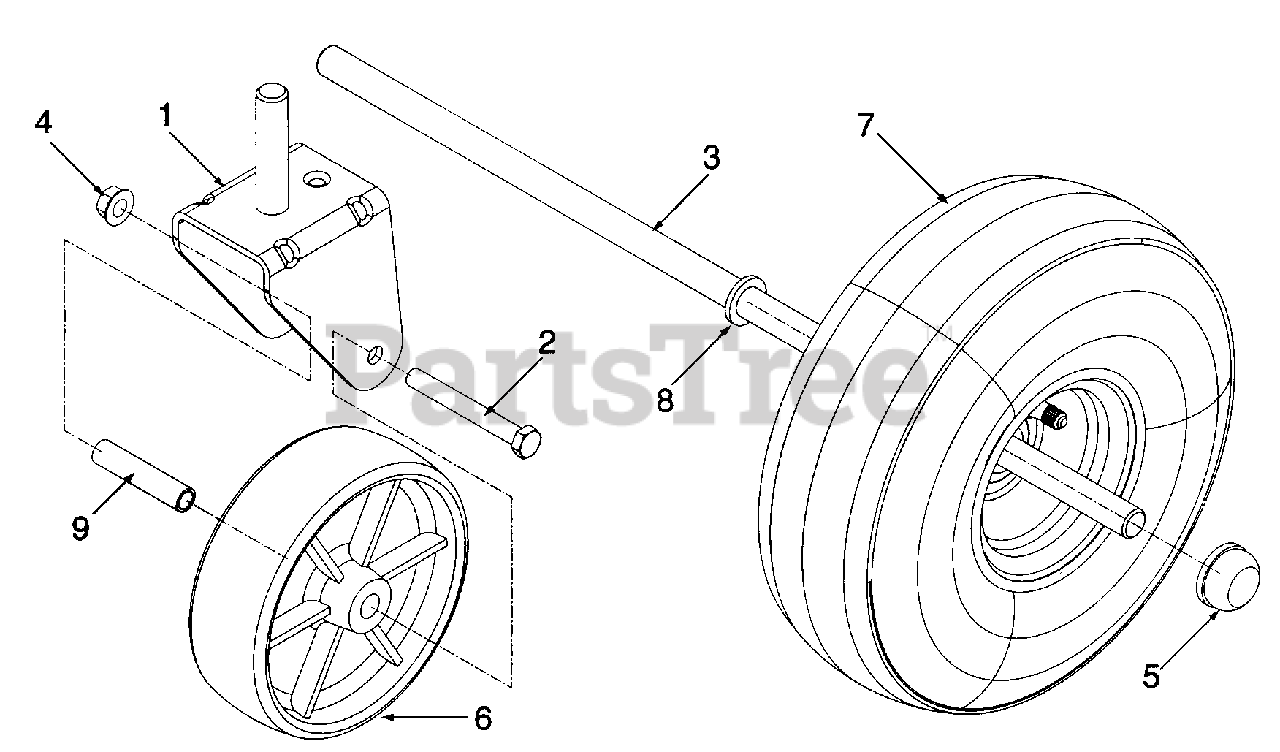

CSV 24 (247-103A100) - Cub Cadet Chipper/Shredder/Vacuum (1997) Wheel Assembly Parts Diagram

Chipper/Shredder/Vacuum

Wheel Assembly Parts Diagram

  • Title

1

Cub Cadet 681-0088

Bracket Assembly, Pivot Wheel

Note: Code 0498

Variations

Cub Cadet 681-0088-0483

BRACKET ASSY PIVOT WHEEL - CHARCOAL GRAY (0483)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0498

BRACKET ASSY PIVOT WHEEL - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0637

BRACKET ASSY PIVOT WHEEL - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0638

BRACKET ASSY PIVOT WHEEL - MTD/TROY-BILT RED (0638)

$56.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0650

BRACKET ASSY PIVOT WHEEL - RED METALLIC (0650)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0662

BRACKET ASSY PIVOT WHEEL - OYSTER GRAY (0662)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0665

BRACKET ASSY PIVOT WHEEL - YARDMAN GREEN (0665)

$56.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0691

USE 681-0088-0637 BRACKET ASS - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0716

BRACKET ASSY PIVOT WHEEL - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0194

Screw, Hex Cap, 3/8-16 x 3.0

$

$

Not available

3

Cub Cadet 711-1084

Shaft, Rear Axle

$

$

Not available

4

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 726-0214

Push Cap

$10.99

$

In Stock, Qty 20+

0

6

Cub Cadet 734-1804

Wheel, 6.00 x 2.00
(Superseded to 734-1804A)

$41.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 734-1817

Wheel Assembly, Complete, 10 x 4 x 4

$

$

Not available

8

Cub Cadet 736-0366

Washer, Flat, .64 x 1.12 x .12

$4.49

$

In Stock, Qty 11

0

9

Cub Cadet 750-1042

Spacer, .384 ID x .5 OD x 2.3 Lg

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 777-3147

Label-Warning Top Flail Housing

$

$

Not available

Cub Cadet 777-3379

Label-Warning Back Flail Housing

$

$

Not available

Cub Cadet 777-4421

Label-Lock Caster Wheel

$

$

Currently unavailable

Cub Cadet 777-4444

Label-Cub Cadet Chipper/Shredder/Vac

$

$

Not available

Cub Cadet 777-5201

Label-Shredder Vac Bag Caution
(Superseded to 777S30131)

$

$

Not available
