CSV 260 (247-315C100) - Cub Cadet Chipper/Shredder/Vacuum (1997) Height Adjustment Parts Diagram

Chipper/Shredder/Vacuum

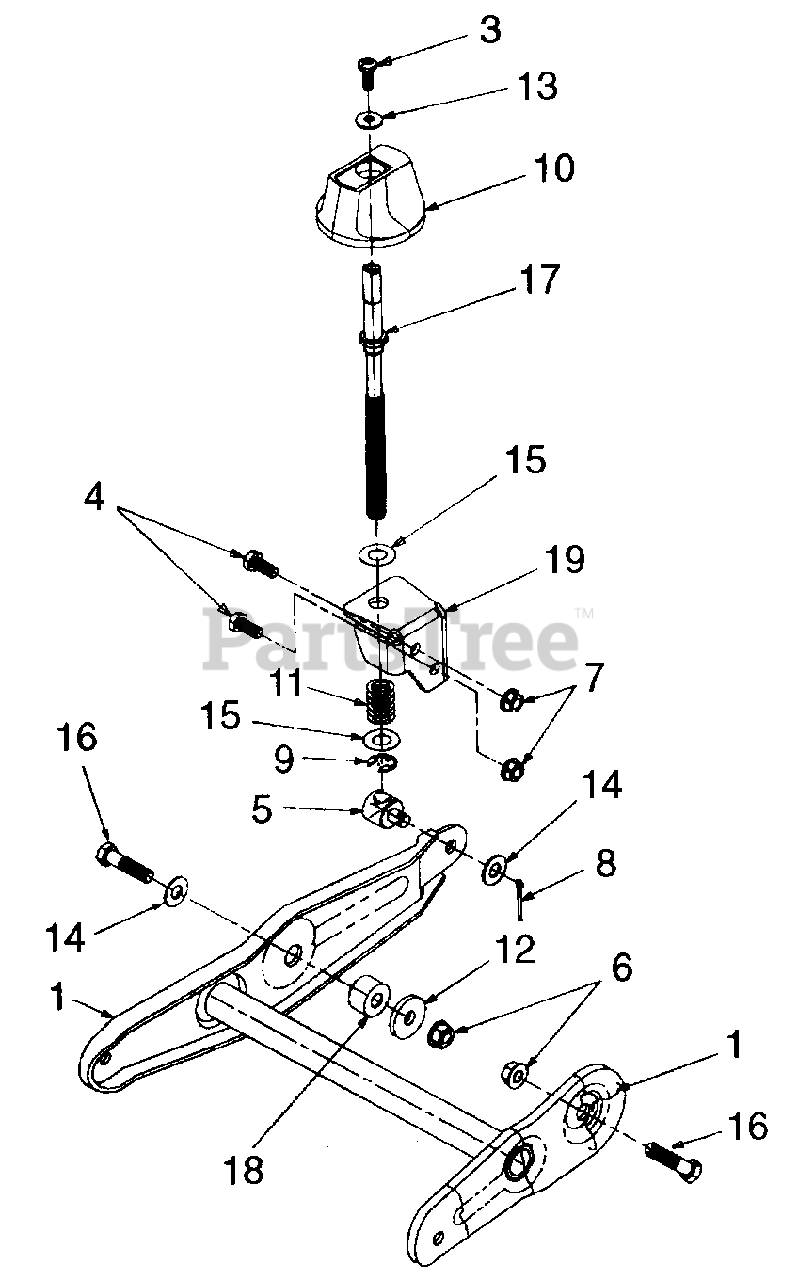

Height Adjustment Parts Diagram

  • Title

1

Cub Cadet 681-0096

Bracket Ass'y, Wheel Pivot

Note: Code 0498

Variations

Cub Cadet 681-0096-0483

PIVOT BRACKET ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 681-0096-0498

PIVOT BRACKET ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0096-0629

PIVOT BRACKET ASSEMBLY - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 681-0096-0637

PIVOT BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 681-0096-0648

PIVOT BRACKET ASSEMBLY - TECH GRAY (0648)

$

$

Not available

Cub Cadet 681-0096-0667

PIVOT BRACKET ASSEMBLY - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 681-0096-0716

PIVOT BRACKET ASSEMBLY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

Cub Cadet 710-0924

Screw, Pan Hd Mach, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 711-1041

Ferrule, Adjustment

$

$

Not available

6

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 714-0115

Pin, Cotter, 1/8 x 1.0

$3.99

$

In Stock, only 1 left!

0

9

Cub Cadet 716-0104

E-Ring, .50 Dia
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 17

0

10

Cub Cadet 720-0236

Knob
(Superseded to 920-0236)

$18.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-0645

Spring, Compression
(Superseded to 932-0645)

$2.99

$

In Stock, Qty 6

0

12

Cub Cadet 736-0247

Washer, Flat, .406 x 1-1/4

$9.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 10

0

14

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0369

Washer, Flat, .508 x 1.0 x .020

$4.49

$

In Stock, Qty 6

0

16

Cub Cadet 738-0955

Shoulder Bolt, .75 x .43:3/8-16

$

$

Not available

17

Cub Cadet 747-0631

Rod, Height Adjustment

$

$

Not available

18

Cub Cadet 711-0242

Spacer, .380 ID x 1.0 OD x .32 Lg

$4.49

$

In Stock, Qty 11

0

19

Cub Cadet 781-0605

Bracket, Height Adj

Note: Code 0498

Variations

Cub Cadet 781-0605-0637

BRACKET-HGT-ADJ (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$
