CT 131 (960610222-01) - Husqvarna Lawn Tractor (2008-06) MOWER DECK / CUTTING DECK Parts Diagram
Lawn Tractor

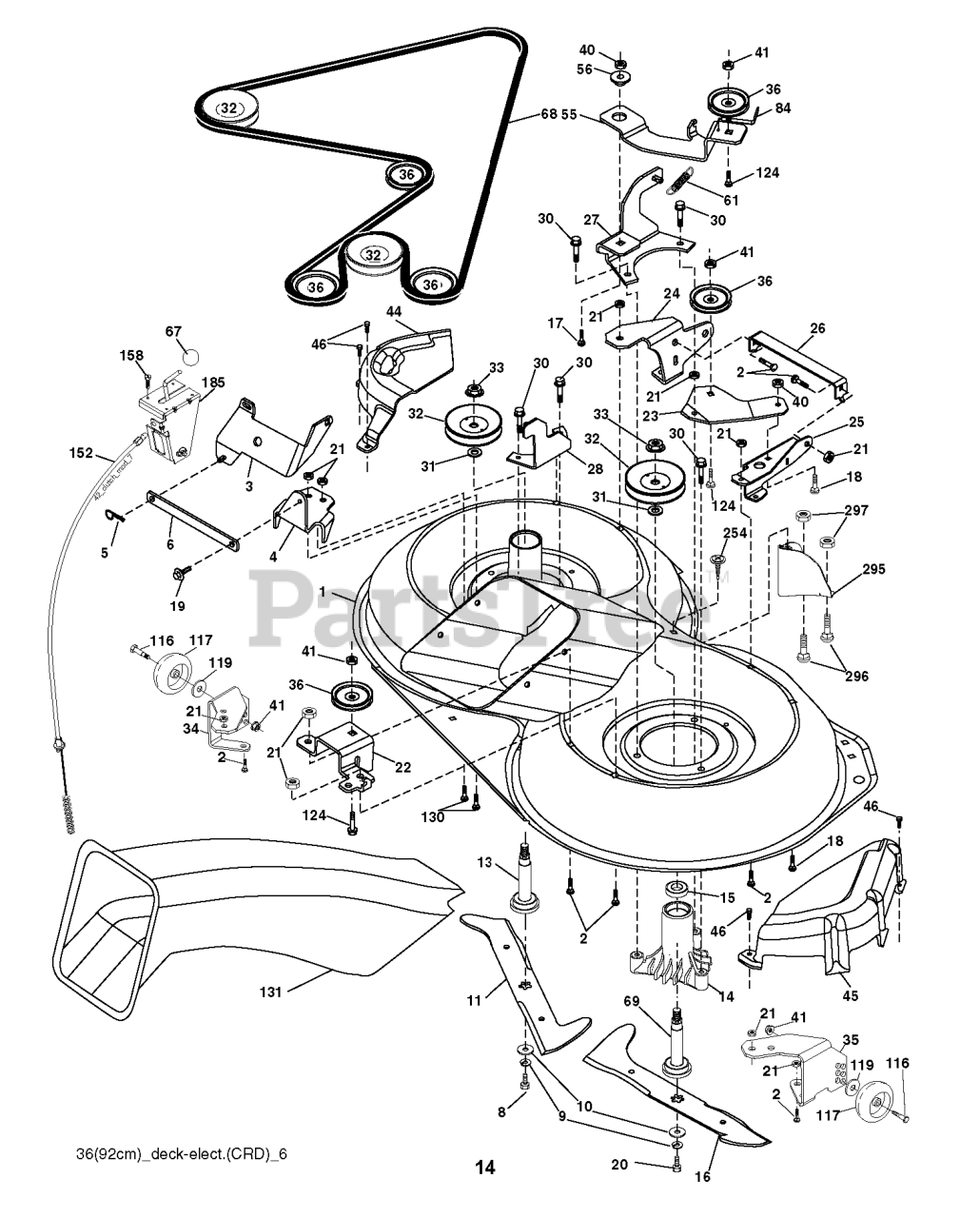

MOWER DECK / CUTTING DECK Parts Diagram
Husqvarna 532400107
$
$
Not available
Husqvarna 872110506
$7.49
$
Husqvarna 532186385
$
$
Not available
$3.99
$
Husqvarna 532413711
Note: Replacement Mower, Complete (Std. Deck - Order separately guage wheel components key nos. 116 - 119)
$
$
Not available
Husqvarna 532165567
$
$
Not available
Husqvarna 532181857
Note: Mandrel Assembly (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)
$84.99
$
$3.99
$
Husqvarna 532165558
$
$
Not available
Husqvarna 532165244
$
$
Not available
Husqvarna 532132827
$6.49
$
Husqvarna 532402008
$91.99
$
Husqvarna 532186386
$
$
Not available
$4.99
$
Husqvarna 532165557
$
$
Not available
Husqvarna 872110606
$4.99
$
Husqvarna 532165568
$27.99
$
Husqvarna 532165482
$66.99
$
$4.99
$
Husqvarna 532400108
$
$
Not available
$4.99
$
Husqvarna 872110612
$6.49
$
Husqvarna 532165661
$93.99
$
Husqvarna 532140296
$6.49
$
Husqvarna 532400106
$
$
Not available
$3.99
$
Husqvarna 532165723
$6.49
$
Husqvarna 532146763
$
$
Not available
Husqvarna 532412171
$
$
Not available
$3.49
$
$10.99
$
$
$
Not available
$4.99
$
$3.99
$
Husqvarna 532175538
$
$
Not available
$3.99
$
$84.99
$
$3.49
$
Husqvarna 532188234
$53.99
$
$26.99
$
$30.99
$
$3.49
$
Husqvarna 817000616
$7.49
$
Husqvarna 532165446
$
$
Not available
Husqvarna 532165242
$
$
Not available
Husqvarna 532124670
$
$
Not available
Husqvarna 532165569
$
$
Not available
Husqvarna 532175539
$21.99
$
Husqvarna 873680600
$3.99
$
Husqvarna 532106932
$6.49
$
$
$
Not available
$7.49
$
Husqvarna 532187690
$3.49
$
$3.49
$
$7.49
$
$12.99
$
Husqvarna 532110485
$10.99
$
Husqvarna 532137729
$4.99
$
$
$
Not available
Husqvarna 532199590
$
$
Not available
Husqvarna 532128774
$31.99
$
