CTH 135 (954170050-A) - Husqvarna Lawn Tractor (2002-01) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

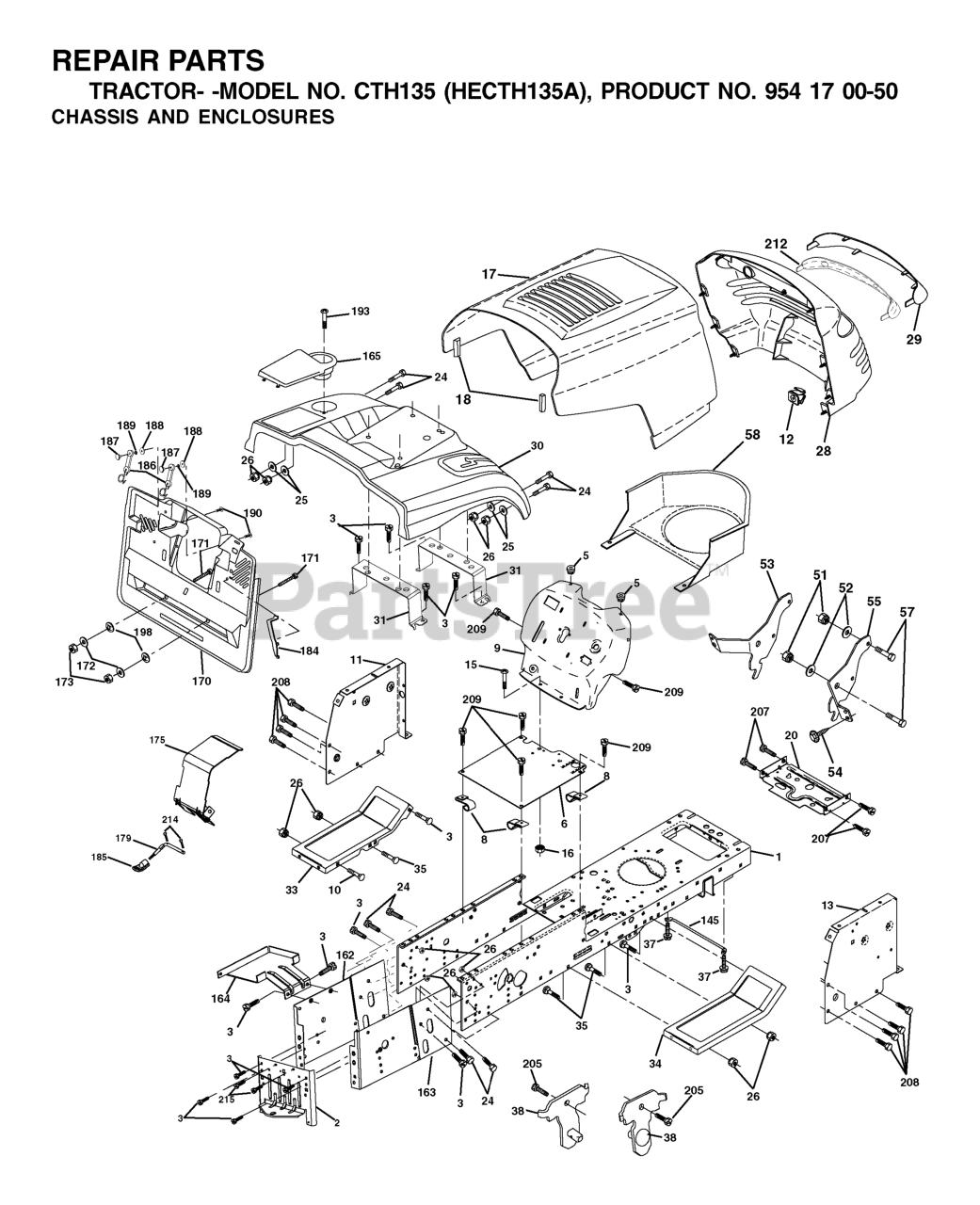

CHASSIS & ENCLOSURES Parts Diagram

  • Title

35

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

188

Husqvarna 819061216

WASHER

$4.99

$

In Stock, Qty 16

0

34

Husqvarna 532181058

FOOTREST PNT RH
(Superseded to 532442579)

$27.99

$

Usually ships in 3-10 days

0

172

Husqvarna 819132016

WASHER
(Superseded to 819132012)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

187

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

189

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 20+

0

215

Husqvarna 817060508

SCREW 5/16-18X1/2"

$4.99

$

Usually ships in 3-10 days

0

185

Husqvarna 532181101

$

$

Not available

184

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532155923

SADDLE FLAT

$14.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532144697

BRACKET.GRILLE.LH

$

$

Not available

198

Husqvarna 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532162237

HOOD ASM.
(Superseded to 532159639)

$61.99

$

In Stock, only 2 left!

0

8

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532161464

SCREW.HEX.WS.HD.8-18 X 7/8

$

$

Not available

212

Husqvarna 532156229

REPL BY 532 1745-03
(Superseded to 532174503)

$

$

Not available

175

Husqvarna 532180310

NEEDS DESCRIPTION

$

$

Not available

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

171

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

186

532160793

LATCH ASSY

$

$

Not available

31

Husqvarna 532165156

BRACKET SUPPORT FENDER

$

$

Not available

13

Husqvarna 532172108

DASH PANEL RH

$

$

Not available

33

Husqvarna 532181057

FOOTREST PNT LH
(Superseded to 532182507)

$27.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532176645

LENS
(Superseded to 532146654)

$

$

Not available

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

164

Husqvarna 532165605

SUPPORT

$

$

Not available

18

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available

163

Husqvarna 532180383

BRACKET EXTEN CHASSIS RH CRD
(Superseded to 583100901)

$42.99

$

Usually ships in 3-10 days

0

193

Husqvarna 817070412

Screw Truss 1/4-20 x 3/4 Tap/R

$

$

Not available

55

Husqvarna 532144696

BRACKET

$

$

Not available

30

Husqvarna 532175791

FENDER.CRD.ORANGE

$311.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 19

0

173

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180384

DRAWBAR
(Superseded to 583101001)

$

$

Not available

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

165

Husqvarna 532167979

COVER BATTERY
(Superseded to 583687501)

$

$

Not available

190

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532174620

CHASSIS

$136.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

205

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532171796

DASH

$

$

Not available

28

Husqvarna 532179845

GRILLE/LENS ASM

$

$

Not available

12

Husqvarna 532145660

CLIP

$3.49

$

In Stock, only 1 left!

0

11

Husqvarna 532155927

PANEL DASH LH
(Superseded to 532174996)

$11.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$9.99

$

In Stock, only 2 left!

0

15

Husqvarna 874180512

Screw, Machine, Truss Head 5/16-18 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532180382

BRACKET
(Superseded to 583100801)

$47.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, Qty 5

0

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$6.49

$

In Stock, only 2 left!

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

58

Husqvarna 532150127

AIR DUCT P/L/LT

$

$

Not available

20

Husqvarna 532180679

PLATE MTG.BATTERY/FUEL TANK

$10.99

$

Usually ships in 3-10 days

0

57

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

179

Husqvarna 532180376

NEEDS DESCRIPTION

$

$

Not available

170

Husqvarna 532178862

NEEDS DESCRIPTION

$

$

Not available
