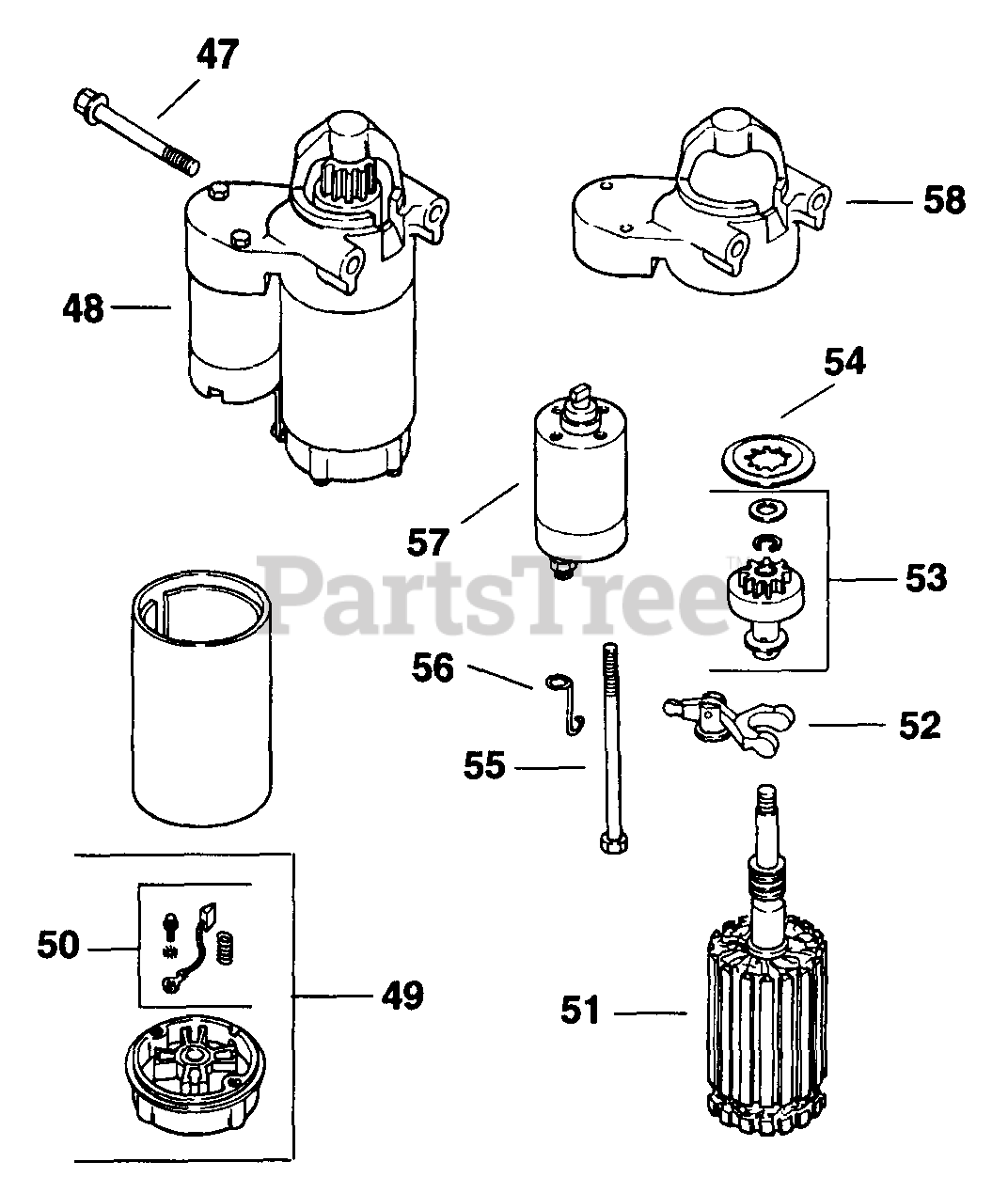

CV12.5-1215 - Kohler Command PRO Engine, Made for John Deere, 12.5hp Starting System 7-27-209 (TP-2351) Parts Diagram

Command PRO Engine, Made for John Deere, 12.5hp

Starting System 7-27-209 (TP-2351) Parts Diagram

  • Title

47

Kohler SM-0839075

Screw, hex. flange M8x1.25x75.6

Note: Use before Serial No. 1913612604

$

$

Not available

48

Kohler 12 098 01

STARTER ASSEMBLY - USE 25 098 11-S

Note: United Technology. Includes 49-58. Use before Serial No. 1913612604

$

$

Not available

49

Kohler 12 243 02-S

CAP - DISCONTINUED

$

$

Not available

50

Kohler 52 755 15

KIT - USE 82 755 28
(Superseded to 82 755 28)

Note: Replaced by 82-755-28

$

$

Not available

51

Kohler 12 170 01-S

ARMATURE - DISCONTINUED

$

$

Not available

52

Kohler 12 090 07-S

LEVER - DISCONTINUED

$

$

Not available

53

Kohler 12 755 05

KIT, DRIVE - DISCONTINUED

$

$

Not available

54

Kohler 12 032 07-S

SEAL

$4.99

$

Usually ships in 2-5 days

0

55

Kohler 12 086 03-S

SCREW - DISCONTINUED

$

$

Not available

56

Kohler 12 154 03-S

CLIP

$5.99

$

Usually ships in 2-5 days

0

57

Kohler 12 435 03-S

SOLENOID - UES 25 098 11-S
(Superseded to 25 098 21-S)

$

$

Not available

58

Kohler 12 227 02

CAP - DISCONTINUED

$

$

Not available
