CV20S-65610 - Kohler Command PRO Engine, Made for Cub Cadet, 20hp, 14.9kW Head Valve Breather Parts Diagram

Command PRO Engine, Made for Cub Cadet, 20hp, 14.9kW

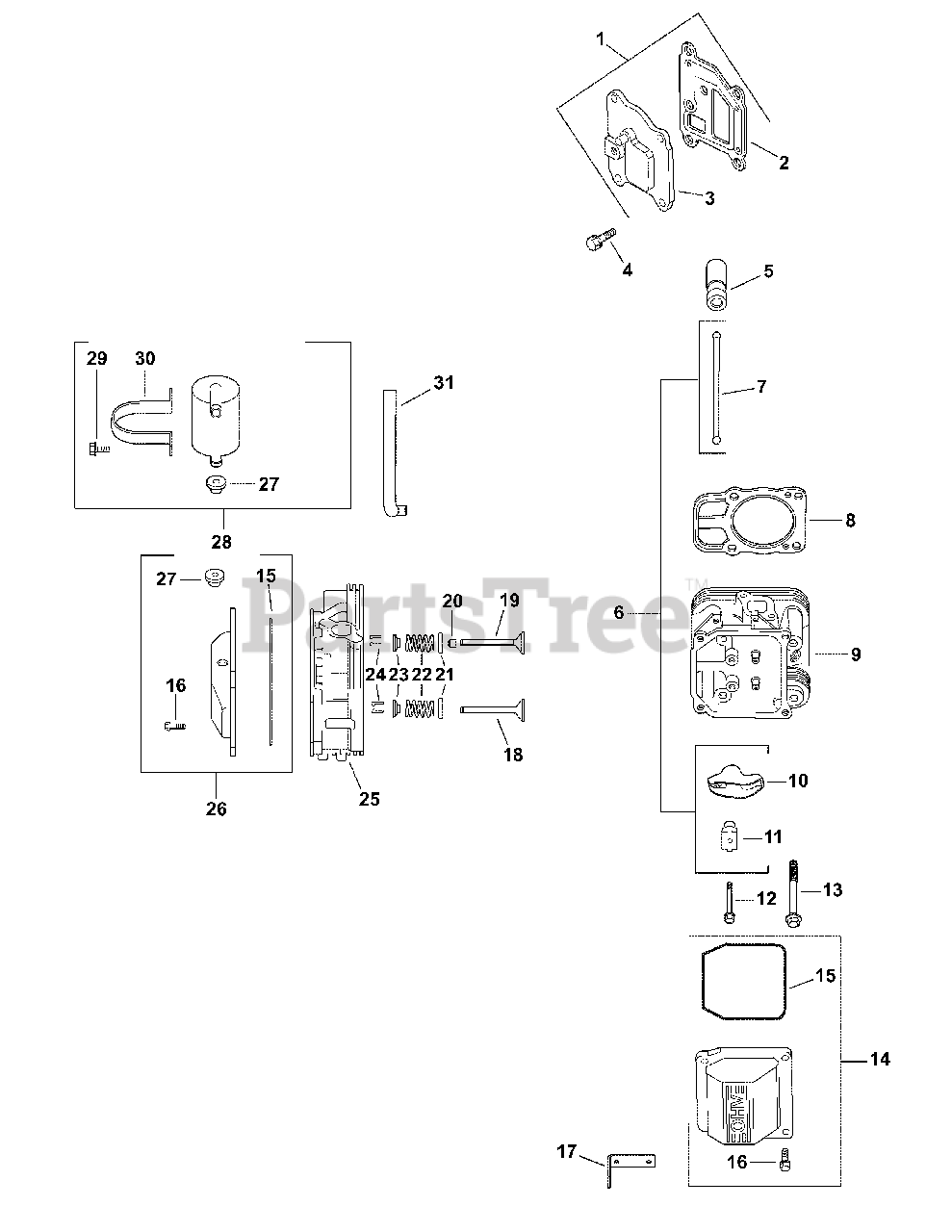

Head Valve Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

KIT, BREATHER COVER W/GASKET

Note: (Includes Ref No. 2-4)

$

$

Not available

2

Cub Cadet KH-24-041-51-S

GASKET, BREATHER
(Superseded to KH-24-041-67-S)

$12.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-24-096-87-S

COVER, BREATHER
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-M-645020-S

SCREW, FLG THD FRM M6X1.0X20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, Qty 20+

0

5

Cub Cadet KH-25-351-04-S

KIT, HYDRAULIC VALVE LIFTER
(Superseded to KH-25-351-11-S)

Note: (Includes Lubricant)

$22.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-755-66

KIT, VALVE TRAIN

Note: (Includes Ref No. 8, 11, 12)

$

$

Not available

7

Cub Cadet KH-24-411-05

ROD, PUSH

$

$

Not available

8

Cub Cadet KH-24-841-01-S

KIT, GASKET CYLINDER HEAD

$45.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-24-318-70-S

KIT, HEAD #2 (Includes KH-25-072-04-S)
(Superseded to KH-24-318-195-S)

$

$

Not available

10

Cub Cadet KH-25-186-01

ARM, ROCKER

$

$

Not available

11

Cub Cadet KH-24-599-02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 13

0

13

Cub Cadet KH-12-086-16

SCREW, FLG M10X1.5X90
(Superseded to KH-62-086-08-S)

$5.49

$

In Stock, Qty 5

0

14

Cub Cadet KH-24-755-141-S

KIT, VALVE COVER-PLAIN

Note: (Includes Ref No. 16,17)

$35.99

$

In Stock, Qty 5

0

15

Cub Cadet KH-24-153-30-S

O-RING, VALVE COVER

$11.99

$

In Stock, Qty 10

0

16

Cub Cadet KH-M-651030-S

SCREW, FLG M6X1.0X30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-25-445-01-S

STRAP, LIFTING
(Superseded to KH-25-445-03-S)

$2.49

$

In Stock, only 1 left!

0

18

Cub Cadet KH-24-016-01

VALVE, EXHAUST (STD)
(Superseded to KH-32-016-01-S)

$14.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-24-016-02

VALVE, EXHAUST (.25)

$

$

Not available

19

Cub Cadet KH-24-017-01

VALVE, INTAKE (STD)

$

$

Not available

19

Cub Cadet KH-24-017-02

VALVE, INTAKE (.25)

$

$

Not available

20

Cub Cadet KH-66-032-05-S

SEAL, VALVE STEM
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

21

Cub Cadet KH-235011-S

RETAINER, SPRING

$6.49

$

In Stock, Qty 12

0

22

Cub Cadet KH-24-089-02

SPRING, VALVE

$

$

Not available

23

Cub Cadet KH-12-173-01

CAP, VALVE SPRING
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

24

Cub Cadet KH-12-755-03

KIT, RETAINER

$5.99

$

In Stock, only 4 left!

0

25

Cub Cadet KH-24-318-67-S

KIT, HEAD #1
(Superseded to KH-24-318-194-S)

Note: (Includes KH-25-072-04-S)

$246.99

$

Usually ships in 3-6 days

0

26

Cub Cadet KH-24-755-142-S

KIT, VALVE COVER BREATHER

Note: (Includes Ref No.16, 17, 28)

$38.99

$

In Stock, only 4 left!

0

27

Cub Cadet KH-25-313-03-S

GROMMET, RUBBER

$10.99

$

In Stock, Qty 8

0

28

Cub Cadet KH-24-755-57-S

KIT, BREATHER SEPERATOR
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, only 2 left!

0

29

Cub Cadet KH-M-645016-S

SCREW, FLG M6X1.0X16

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet KH-24-445-02

STRAP, BREATHER
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, only 2 left!

0

31

KH-24-326-93

HOSE BREATHER

$

$

Not available

Cub Cadet KH-24-755-147-S

KIT, CYLINDER HEAD HARDWARE

Note: (Not Shown) (Services 1 Head. Qtys Listed are for Both Heads)(Includes Ref No. 8, 11, 12, 19-25)

$96.99

$

In Stock, only 4 left!

0
