CW 36 - Cub Cadet Snow Thrower Attachment Front Power Take-Off -90 Degree Gear Box- Parts Diagram

Snow Thrower Attachment

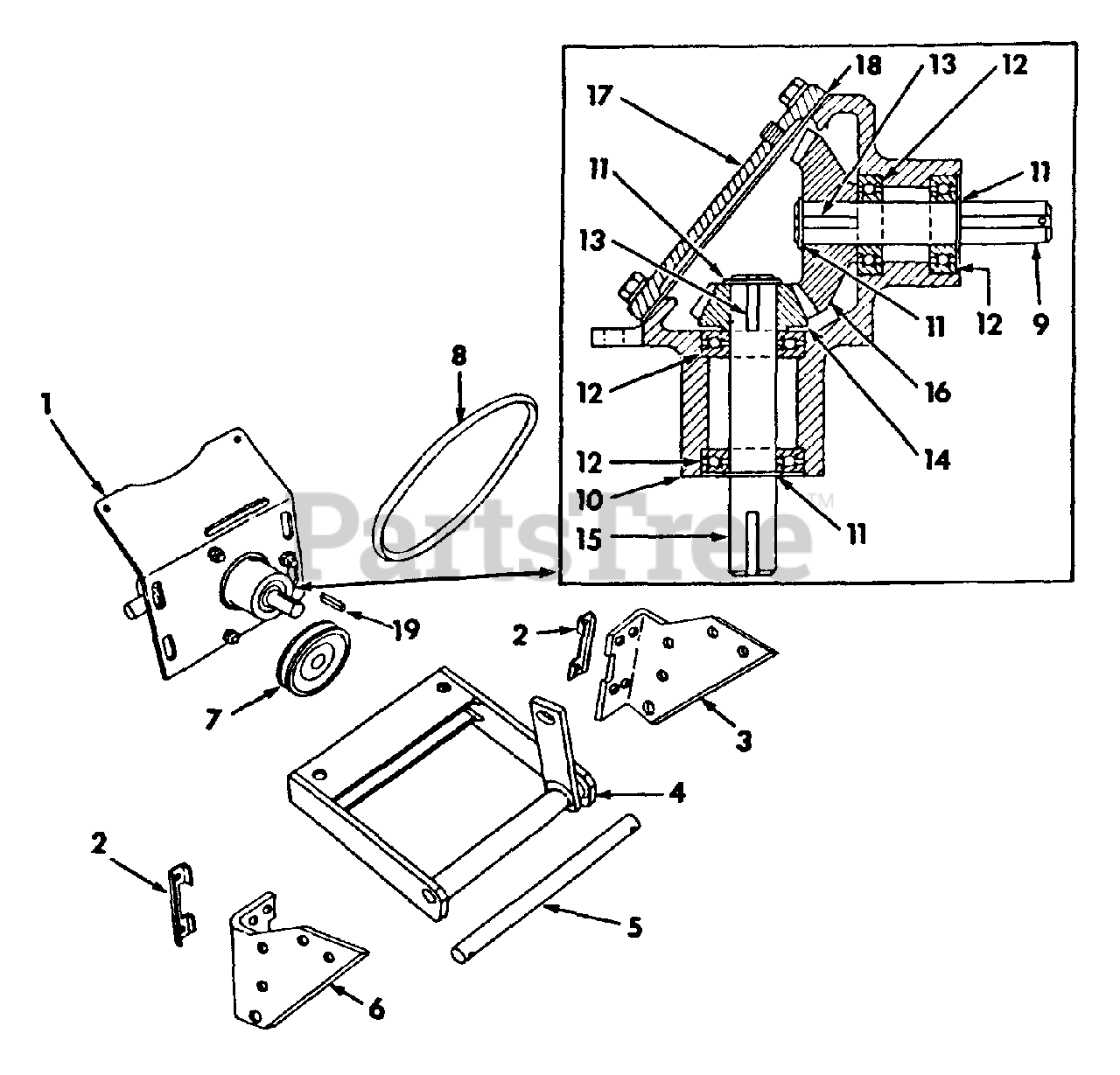

Front Power Take-Off -90 Degree Gear Box- Parts Diagram

  • Title

1

Cub Cadet 475570-R1

PLATE, FRONT

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 180122

SCREW, 3/8-16 X 1 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-446548

WASHER, 3/8 X 3/4 X .065 C-Z

$

$

Currently unavailable

Cub Cadet 120382

WASHER, 3/8 C-Z MED LOCK

$

$

Currently unavailable

2

475571-R1

CLIP, LOCKING

$

$

Not available

3

475562-R1

PLATE, RH SIDE

$

$

Not available

17452-R1

BOLT, 1/2-13 X 1 C-Z HEX-HD MACH

$

$

Not available

Cub Cadet IH-120378

NUT. 1/2-13 C-Z HEX.
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

429108

SCREW, 1/2-13 X 1 C-Z SL-RD-HD MACH

$

$

Not available

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

4

475574-R91

BRACKET ASSY. LIFT

$

$

Not available

5

475576-R1

SHAFT PIVOT

$

$

Not available

Cub Cadet IH-187988

PIN, 3/16 X 1-1/4 C-Z COTTER
(Superseded to 714-0142)

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet IH-475561-R1

PLATE, LH

$

$

Currently unavailable

429108

SCREW, 1/2-13 X 1 C-Z SLT-RD-HD MACH

$

$

Not available

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-485247-R91

PULLEY, GEAR BOX

Note: REPLACES 475613-R91

$

$

Not available

102581

SCREW, 5/16-18 X 3/8 HEX-SOC-HD CUP-PT SET

$

$

Not available

8

Cub Cadet IH-487043-R1

BELT

$31.99

$

Usually ships in 3-6 days

0

9

Cub Cadet IH-475602-R1

SHAFT, OUTPUT

$

$

Not available

10

475596-R1

BOX, GEAR

$

$

Not available

18475-R1

BOLT, 5/16-18 X 1-1/4 C-Z HEX-HD MACH

$

$

Not available

Cub Cadet IH-120376

NUT 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet IH-269181-R1

RING, RETAINING SNAP
(Superseded to 916-0101)

$3.49

$

Usually ships in 3-6 days

0

12

Cub Cadet IH-475627-R91

BEARING, BALL

$

$

Not available

13

Cub Cadet IH-475642-R1

KEY, 3/16 X 11/16 SQ PARALLEL

$

$

Currently unavailable

14

Cub Cadet IH-475604-R1

GEAR, BEVEL PINION

$

$

Not available

15

Cub Cadet IH-475606-R1

SHAFT, INPUT

$

$

Not available

16

Cub Cadet IH-475600-R1

GEAR, BEVEL

$

$

Currently unavailable

17

475597-R1

COVER GEAR BOX

$

$

Not available

Cub Cadet IH-444687

PLUG, 1/8-27 AUTOMOTIVE HEX-SOC-HD PIPE

$

$

Currently unavailable

180020

SCREW, 1/4-20 X 3/4 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

18

Cub Cadet IH-475598-R1

GASKET, GEAR BOX COVER

$

$

Not available

19

Cub Cadet IH-474098-R1

KEY, 3/16 X 1-1/4 SQ PARALLEL

$

$

Currently unavailable
