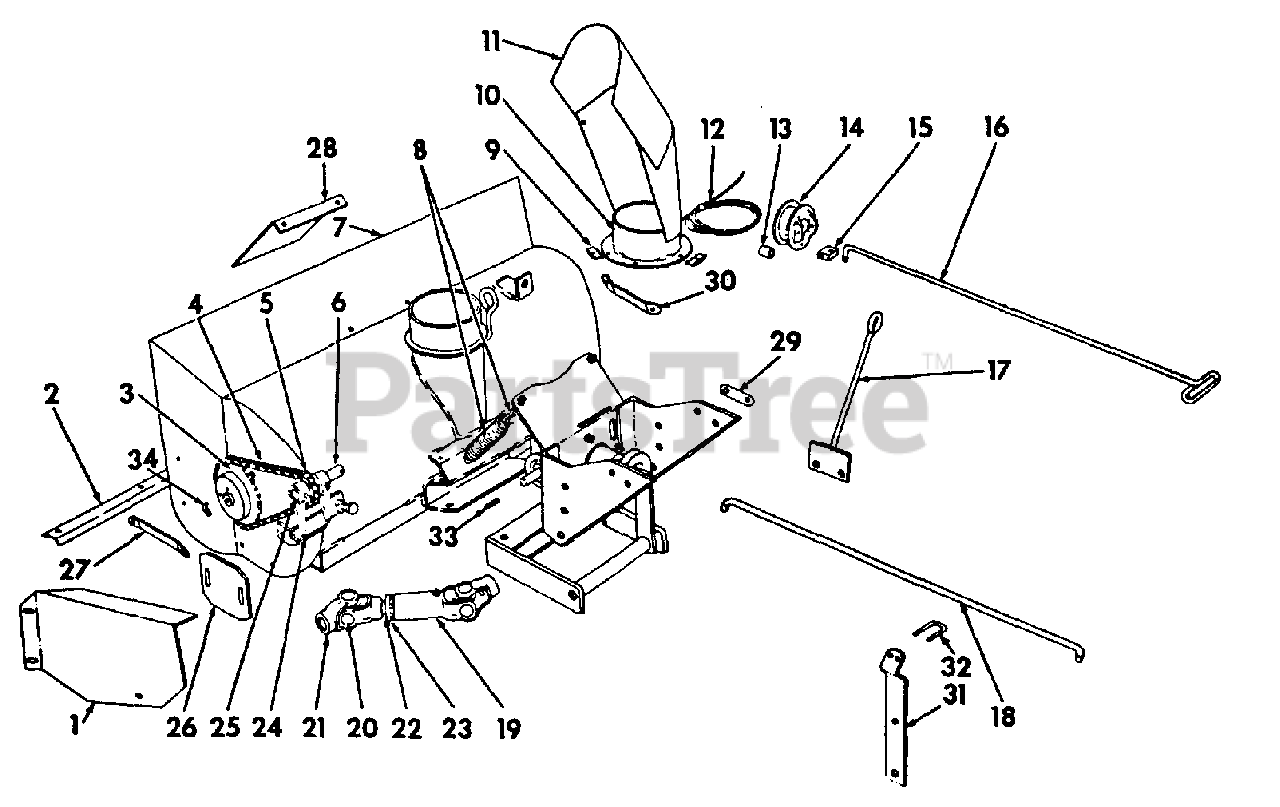

CW 36 - Cub Cadet Snow Thrower Attachment Thrower Housing And Drive Parts Diagram

Snow Thrower Attachment

Thrower Housing And Drive Parts Diagram

  • Title

1

Cub Cadet IH-475547-R1

GUARD. CHAIN

$

$

Currently unavailable

Cub Cadet IH-18673-R1

BOLT, 5/16-18 X 1/2 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-16897-R1

BOLT, 5/16-18 X 3/4 C-Z SQ-NK CRG
(Superseded to 710-0451)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 HEX-HD CAP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120386

WASHER, 5/16 X 3/4 X .065 C-Z

$

$

Currently unavailable

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet IH-475566-R1

BLADE

$

$

Not available

Cub Cadet IH-18673-R1

BOLT, 5/16-18 X 1/2 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet IH-475540-R1

SPROCKET - 24T

Note: SERIAL NO. 11100 & BELOW

$

$

Currently unavailable

Cub Cadet IH-617939-R1

PIN. 5/16 X 1-1/2 COILED SPRING
(Superseded to 715-3002)

$7.99

$

Usually ships in 3-6 days

0

3

Cub Cadet IH-482666-R1

SPROCKET -24T

Note: SERIAL NO. 11101 AND ABOVE

$

$

Currently unavailable

Cub Cadet IH-21714-R1

WASHER, .906 X 1.500 X .105

$

$

Currently unavailable

Cub Cadet IH-102677

PIN. SHEAR

$

$

Currently unavailable

4

CHAIN, ROLLER - FOR 24 T SPROCKET-

Note: USE 51 LINKS 1/2 PITCH ROLLER CHAIN FROM 10 FT. ROLLS MARKED, IH-1790D AND 1 CONNECTING LINK, IH-1301D-

$

$

Not available

Cub Cadet IH-1301D

LINK, #40 SINGLE PITCH CONNECTING

$

$

Not available

5

Cub Cadet IH-475543-R1

SPROCKET - SMALL

$

$

Not available

Cub Cadet IH-120378

NUT, 1/2-13 C-Z HEX.
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-591184-R1

PIN. 3/16 X 1-1/4 COILED SPRING

$

$

Not available

Cub Cadet IH-656643-R1

SCREW, 1/2-13 X 2 HEX-HD CAP

$

$

Currently unavailable

6

Cub Cadet IH-475542-R1

SHAFT, TRANSFER

$

$

Not available

7

Cub Cadet IH-475532-R92

HOUSING ASSY

$

$

Currently unavailable

Cub Cadet IH-18812-R1

BOLT, 1/2-13 X 3 C-Z HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120378

NUT, 1/2-13 C-Z HEX.
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet IH-475580-R1

SPRING, TENSION

$

$

Not available

Cub Cadet IH-475581-R1

BOLT, EYE

$

$

Currently unavailable

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet IH-475550-R1

CLIP, CHUTE HOLDER

$

$

Currently unavailable

Cub Cadet IH-18626-R1

BOLT, 1/4-20 X 1/2 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

10

Cub Cadet IH-475548-R91

CHUTE ASSY, SNOW

$

$

Currently unavailable

11

Cub Cadet IH-475549-R1

CAP, DEFLECTOR

$

$

Currently unavailable

Cub Cadet IH-126032

NUT, 3/8-16 C-Z WING

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-446548

WASHER, 3/8 X 3/4 X .065 C-Z

$

$

Currently unavailable

12

Cub Cadet IH-475556-R1

CABLE SWIVEL CONTROL

$

$

Currently unavailable

Cub Cadet IH-102570

SCREW, 1/4-20 X 3/4 HEX-SOC-HD CUP-PT SET

$

$

Not available

13

Cub Cadet IH-475553-R1

BUSHING

$

$

Currently unavailable

14

Cub Cadet IH-475551-R1

SPOOL, SWIVEL

$

$

Currently unavailable

Cub Cadet IH-120378

NUT, 1/2-13 C-Z HEX.
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-180181

SCREW, 1/2-13 X 2 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120384

WASHER. 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120396

WASHER, 17/32 X 1-1/16 X .095
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet IH-475554-R1

CROSS

$

$

Currently unavailable

Cub Cadet IH-386365-R1

PIN, CROSS MOUNTING

$

$

Currently unavailable

Cub Cadet IH-177923

PIN, 1/8 X 3/4 C-Z COTTER
(Superseded to 914-0474)

$

$

Not available

Cub Cadet IH-120386

WASHER, 5/16 X 3/4 X .065

$

$

Currently unavailable

16

Cub Cadet IH-475557-R1

ARM, CONTROL

$

$

Currently unavailable

Cub Cadet IH-177923

PIN. 1/8 X 3/4 C-Z COTTER
(Superseded to 914-0474)

$

$

Not available

Cub Cadet IH-120394

WASHER. 13/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

17

Cub Cadet IH-475558-R91

BRACKET, CONTROL ARM SUPPORT

$

$

Currently unavailable

Cub Cadet IH-120378

NUT 1/2-13 C-Z HEX.
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-180173

SCREW, 1/2-13 X 1 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet IH-473924-R1

ROD. LIFT -WILL WORK FOR IH-47557881-

$

$

Not available

Cub Cadet IH-475579-R1

PIN, SPECIAL
(Superseded to 714-3020)

$3.99

$

In Stock, Qty 9

0

Cub Cadet IH-120396

WASHER, 17/32 X 1-1/16 X .095 C-Z
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet IH-475607-R92

JOINT ASSY, UNIVERSAL -TRACTOR HALF-

$

$

Not available

20

Cub Cadet IH-124348-R91

KIT, UNIVERSAL JOINT

$

$

Not available

21

Cub Cadet IH-475608-R92

JOINT ASSY, UNIVERSAL -BLOWER HALF-

$

$

Not available

22

Cub Cadet IH-475609-R1

RETAINER. GREASE

$

$

Not available

23

Cub Cadet IH-124355-R1

CAP, RETAINER

$

$

Currently unavailable

Cub Cadet IH-475642-R1

KEY, 3/16 X 11/16 SO PARALLEL -TRANSFER SHAFT TO UNIVERSAL-

$

$

Currently unavailable

Cub Cadet IH-137218

PIN, 5/32 X 1-1/4 ZND COTTER

$

$

Currently unavailable

Cub Cadet IH-102592

SCREW, 3/8-16 X 3/8 HEX-SOC-HD CUP-PT SET

$

$

Currently unavailable

24

Cub Cadet IH-475541R2

BRACKET, SPROCKET MOUNTING

$

$

Currently unavailable

Cub Cadet IH-620536R2

PIN, MOUNTING

$

$

Currently unavailable

Cub Cadet IH-177923

PIN, 1/8 X 3/4 C-Z COTTER
(Superseded to 914-0474)

$

$

Not available

Cub Cadet IH-109454

FITTING, 1/4 LUB

$

$

Not available

25

Cub Cadet IH-387835-R91

BEARING ASSY, NEEDLE
(Superseded to IH-387835-R92)

$

$

Not available

26

Cub Cadet IH-475565-R1

RUNNER

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8-16 X 1 C-Z SQ-NK CRG
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-446548

WASHER, 3/8 X 3/4 X .065 C-Z

$

$

Currently unavailable

27

Cub Cadet IH-475533-R1

STRAP, SUPPORT LH

$

$

Currently unavailable

28

Cub Cadet IH-475567-R1

PLATE, DEFLECTOR

$

$

Currently unavailable

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180073

SCREW, 5/16-18 X 1/2 C-Z HEX-HD CAP
(Superseded to 710-3039)

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet IH-475564-R91

CLIP, MOUNTING

$

$

Currently unavailable

30

Cub Cadet IH-475534-R1

STRAP, SUPPORT - RH

$

$

Currently unavailable

Cub Cadet IH-16897-R1

BOLT, 5/16-18 X 3/4 C-Z SQ-NK CRG
(Superseded to 710-0451)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet IH-475611-R1

BRACKET, LIFT ROD

Note: USED ONLY ON TRACTORS W/O SHIELD ON LIFT HANDLE-

$

$

Currently unavailable

31

Cub Cadet IH-485469-R1

BRACKET, LIFT ROD

Note: USED ONLY ON TRACTORS WITH SHIELD ON LIFT HANDLE-

$

$

Currently unavailable

Cub Cadet IH-485420-R1

SPACER, LIFT ROD BRACKET

$

$

Not available

32

Cub Cadet IH-475612-R1

U-BOLT -USED W/BRACKET IH-475611-R1

$

$

Currently unavailable

32

Cub Cadet IH-485419-R1

U-BOLT -USED W/BRACKET IH-485469-R1

$

$

Not available

Cub Cadet IH-120375

NUT. 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

33

Cub Cadet IH-475642-R1

KEY, 3/16 X 11/16 SO PARALLEL

$

$

Currently unavailable

34

Cub Cadet IH-482665-R1

RETAINER, SHEAR PIN -SERIAL NO. 11101 AND ABOVE-

$

$

Currently unavailable

Cub Cadet IH-180120

SCREW, 3/8-16 X 3/4 C-Z HEX-HD CAP
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

Cub Cadet IH-120382

WASHER, 3/8 MED LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-446548

WASHER, 3/8 X 3/4 X .065 C-Z

$

$

Currently unavailable
