CZ 4818 (968999276) - Husqvarna 48" Zero-Turn Mower (2004-09) Briggs & Stratton Engine Assembly Parts Diagram

48" Zero-Turn Mower

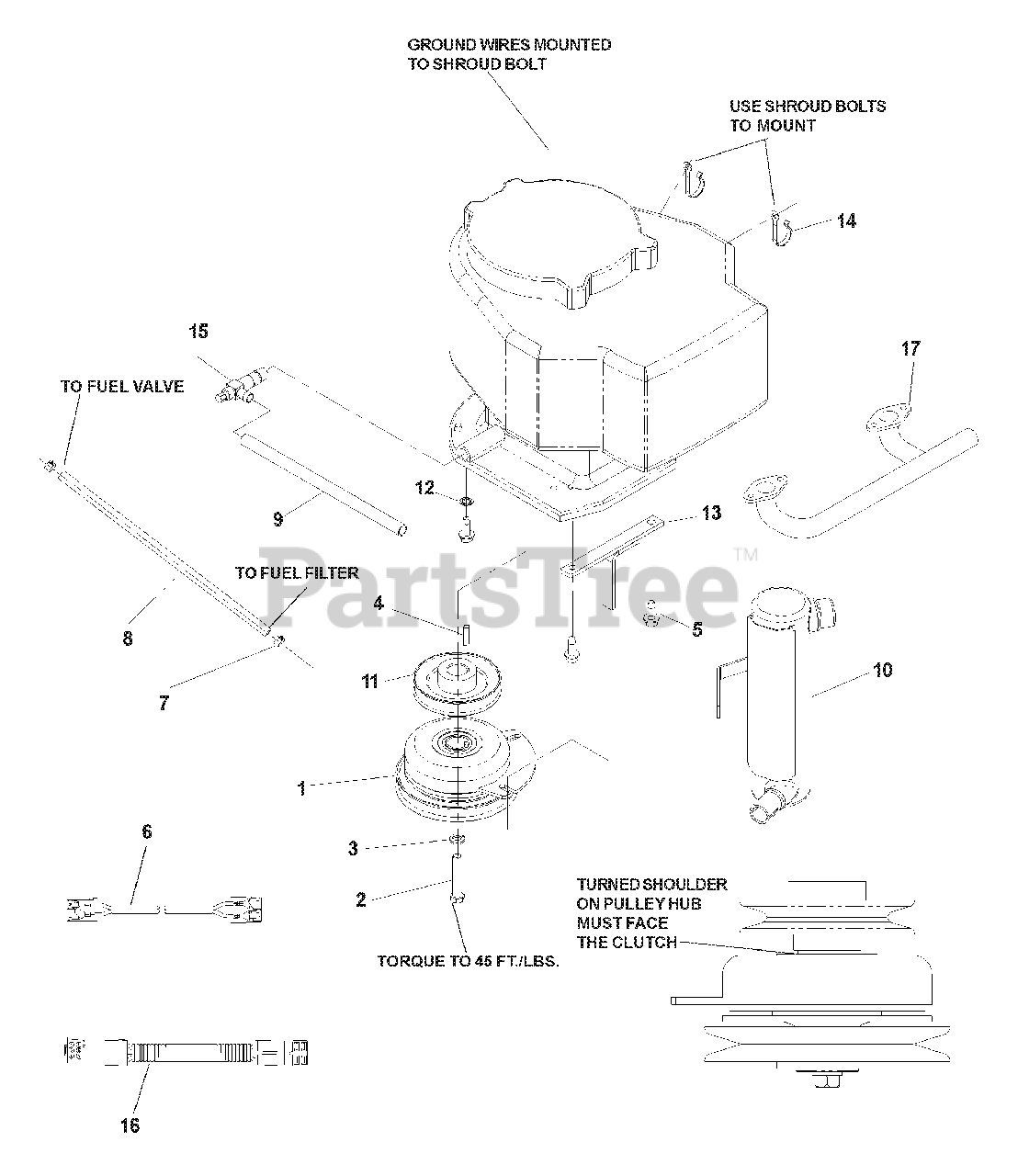

Briggs & Stratton Engine Assembly Parts Diagram

  • Title

1

Husqvarna 539105804

CLUTCH, 125 FT/LB

$

$

Not available

2

Husqvarna 539991120

HCS 7/16-20 X 2 1/2, GR5

$6.49

$

In Stock, Qty 11

0

3

Husqvarna 539990247

LOCKWASHER, 7/16

$

$

Not available

4

Husqvarna 539101995

KEY, 1/4" SQ. X 1 1/8"

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 539107476

BOLT, 3/8-16 X 1, THREAD FORMING

$6.49

$

In Stock, only 3 left!

0

6

Husqvarna 539105637

CLUTCH HARNESS

$24.99

$

In Stock, Qty 6

0

7

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 539105527

FUEL LINE, 24"
(Superseded to 539110424)

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 539107937

HOSE, OIL DRAIN

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539109843

MUFFLER

$279.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107557

PULLEY

$

$

Not available

12

Husqvarna 539108266

WASHER, 3/8, INTERNAL TOOTH
(Superseded to 539990390)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539106819

CLUTCH TIE DOWN WELDMENT

$

$

Not available

14

Husqvarna 539107098

CLAMP

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539109837

DRAIN VALVE
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

16

Husqvarna 539107516

PIGTAIL

$44.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539109844

MANIFOLD

$303.99

$

Usually ships in 3-10 days

0

Husqvarna 539109980

CLAMP, EXHAUST

Note: (NOT SHOWN)

$7.49

$

Usually ships in 3-10 days

0
