CZT 2650 (7800382) - Simplicity Axion 50" Zero-Turn Mower, 26hp Engine Group - 26 H.P. Parts Diagram

Axion 50" Zero-Turn Mower, 26hp

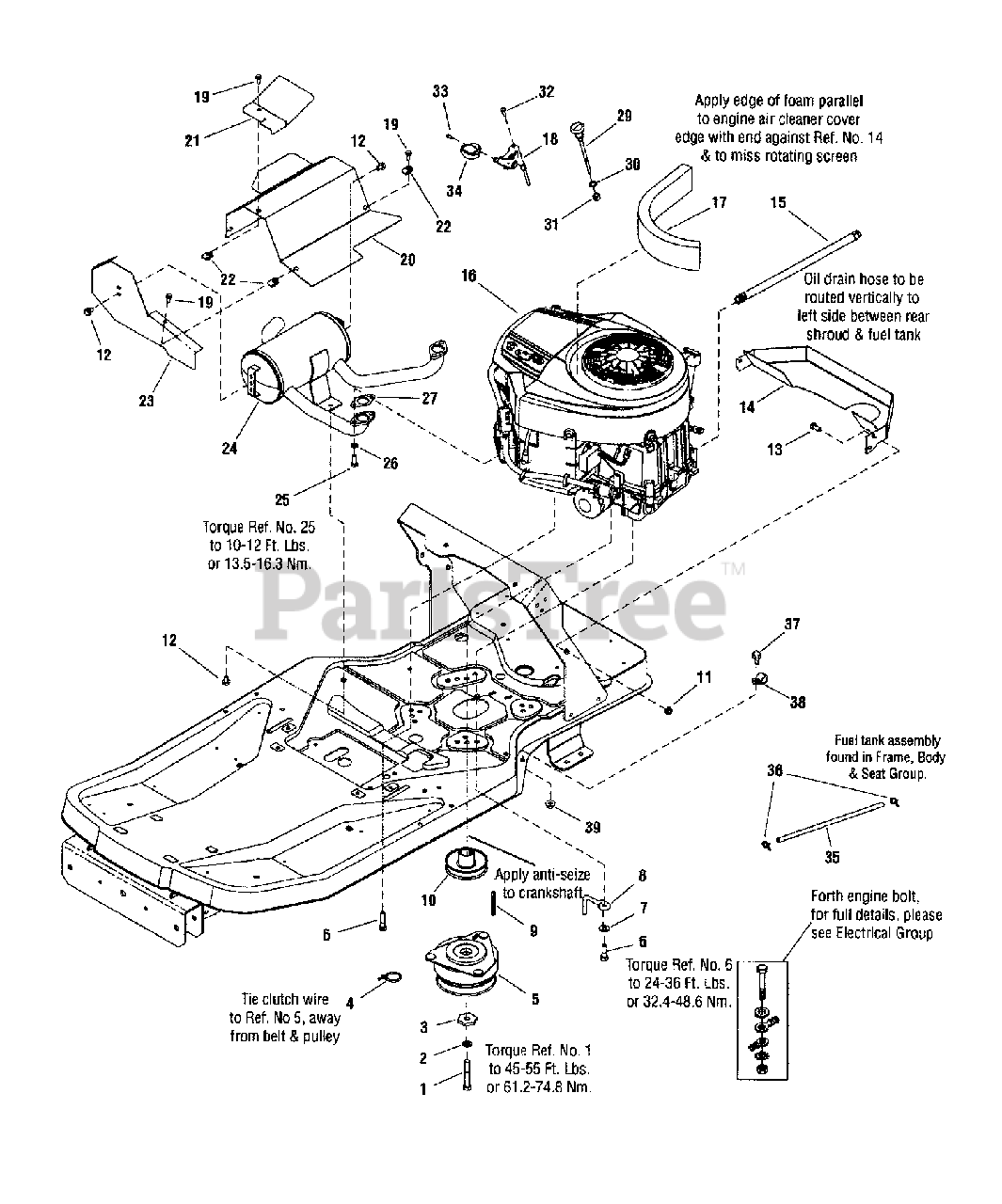

Engine Group - 26 H.P. Parts Diagram

  • Title

1

Simplicity 7027266SM

SCREW, 7/16-20 x 3" Hex Head Cap, GR5 (w/Nyloc Patch)

$7.49

$

Usually ships in 2-12 days

0

2

Simplicity 1918199SM

LOCKWASHER, Spring, .438
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

3

Simplicity 1708264SM

WASHER, Hex, .453 I.D. x 1-1/2"

$8.99

$

In Stock, Qty 7

0

4

Simplicity 2832747SM

TIE, Self Locking 3-5/8" Long

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1686880SM

CLUTCH, Ogura JD-11
(Superseded to 1687746YP)

$376.99

$

Usually ships in 2-12 days

0

6

Simplicity 2828635SM

SCREW, 3/8-16 x 1-1/4" Hex Washer Head Taptite

$4.99

$

In Stock, Qty 20+

0

7

Simplicity 1924940SM

WASHER, 3/8", (.41 I.D. x .87 O.D. x .08 Thick)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 7101717SM

RETAINER, Clutch

$

$

Not available

9

Simplicity 2154096SM

KEY, .250 Square x .91 Long Parallel

$6.99

$

In Stock, only 2 left!

0

10

Simplicity 7101716SM

PULLEY, Engine- ZT

$50.99

$

Usually ships in 2-12 days

0

11

Simplicity 1931277SM

NUT, 5/16-18 Hex Whiz Lock Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Simplicity 1924856SM

SCREW, 5/16-18 x 1/2" Hex Washer Head Taptite
(Superseded to 703985)

$4.49

$

In Stock, Qty 14

0

13

Simplicity 1921332SM

SCREW, 5/16-18 x 3/4" Hex Head Cap, Black
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

14

Simplicity 1733414ASM

AIR DUCT, Inlet

$70.99

$

Usually ships in 2-12 days

0

15

Simplicity 1726498SM

HOSE, Oil Drain, 16-1/2" Long

$26.99

$

Usually ships in 2-12 days

0

16

* ENGINE, 26 HP Briggs & Stratton, ELS, Mod. 44P777-0141-B1

$

$

Not available

16

* ENGINE, 26 HP, Briggs & Stratton, ELS-Calif., Mod. 44P777-0141-G1

$

$

Not available

17

Simplicity 1734169SM

SEAL, Foam Air Inlet

$32.99

$

In Stock, only 1 left!

0

18

Simplicity 1734332SM

CONTROL, Throttle, .187 Cable 18.80 Long

$37.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960295SM

SCREW, 1/4-20 x 5/8" Hex Whiz Lock Flange

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1734246ASM

HEAT SHIELD, Muffler Top

$56.99

$

Usually ships in 2-12 days

0

21

Simplicity 1728017SM

HEAT SHIELD, Throttle

$7.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960368SM

NUT, Speed, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, only 4 left!

0

23

Simplicity 1727939SM

HEAT SHIELD, Muffler Side
(Superseded to 1727939ASM)

$29.99

$

Usually ships in 2-12 days

0

24

Simplicity 1734061SM

MUFFLER, 24 HP V-Twin ELS

$384.99

$

In Stock, only 1 left!

0

25

Simplicity 1936228SM

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR8

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 1917356SM

LOCKWASHER, Spring 5/16" Black
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1731214SM

GASKET, Exhaust B&S

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 1734333SM

CABLE, Choke, 20" Long

$37.99

$

Usually ships in 2-12 days

0

30

Simplicity 7090390SM

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, Qty 6

0

31

Simplicity 7091630SM

NUT, 3/8-24 Hex
(Superseded to 703895)

$4.49

$

In Stock, Qty 8

0

32

Simplicity 7090999SM

SCREW, 1/4-20 x 5/8" Pan Head Taptite Torx
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

33

Simplicity 7091195SM

SCREW, #10-16 x 3/4" Pan Head Taptite Combo

$4.49

$

In Stock, only 1 left!

0

34

Simplicity 7100529SM

KNOB, Throttle, Red
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

35

Simplicity 1734995SM

** HOSE, Fuel, Low Perm, 1/4" I.D. x 19-1/2" Long

$11.99

$

Usually ships in 2-12 days

0

36

Simplicity 7029900SM

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1930591SM

SCREW, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 13

0

38

Simplicity 7900020SM

CLIP, Harness, 5/8"

$4.49

$

Usually ships in 2-12 days

0

39

Simplicity 1932377SM

NUT, 5/16-18 Hex Whiz Lock Flange

$

$

Not available
