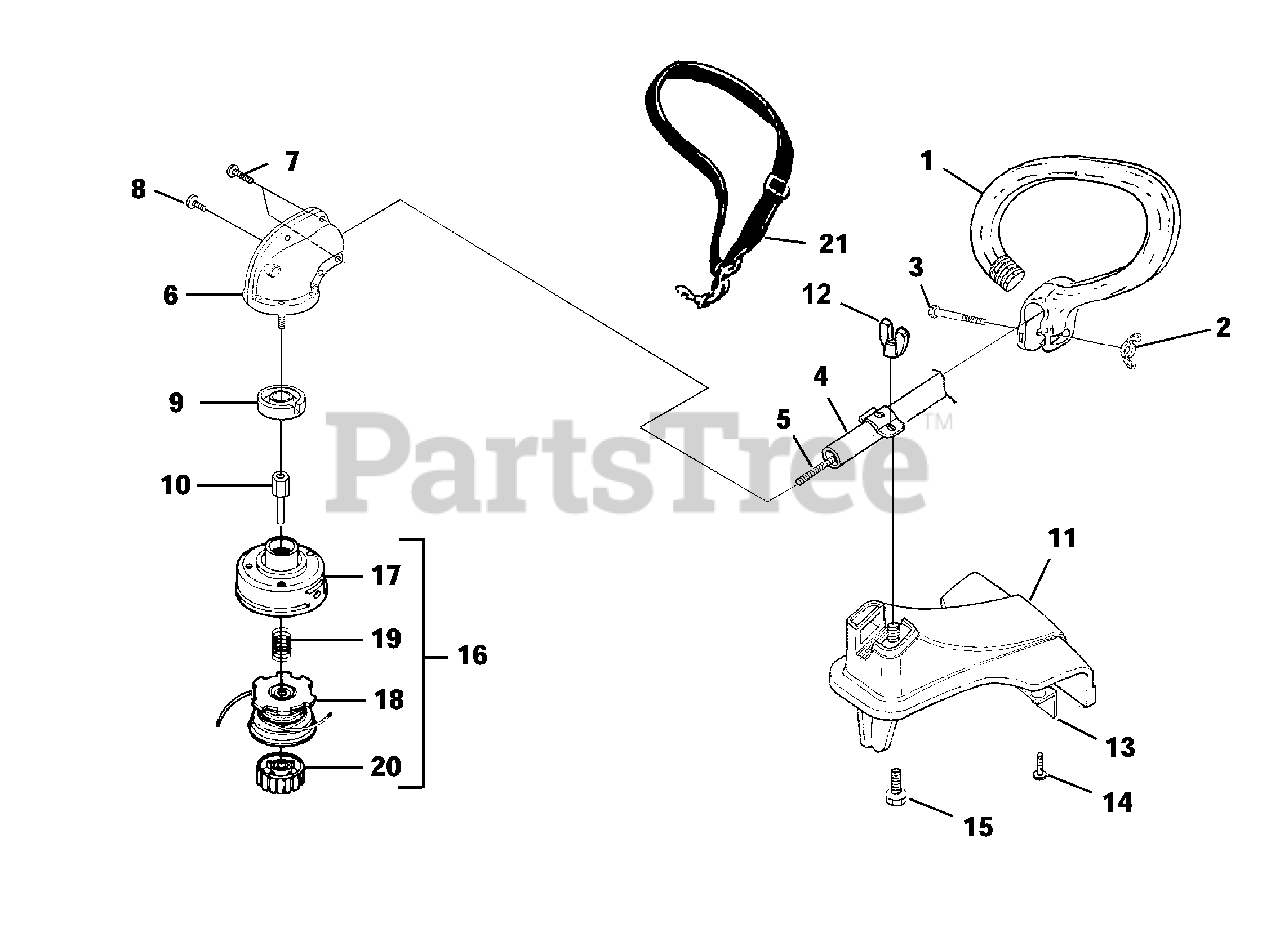

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP06959

HANDLE-Anti-Vibe
(Superseded to 308472001)

$

$

Not available

2

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Specs Hand Tight

$

$

Not available

3

Homelite UP06523

SCREW-Cap Hex Hd. (1/4-20 x 2")
(Superseded to 80295)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite UP04891

DRIVESHAFT HOUSING ASSY.
(Superseded to UP04891A)

$53.99

$

Usually ships in 3-7 days

0

5

Homelite UP04717

SHAFT-Flexible
(Superseded to 98818)

$

$

Not available

6

Homelite UP06970

GEARHEAD
(Superseded to UP06970A)

$

$

Not available

7

Homelite UP04157

Screw, Taptite Hex Hd. (10-24 x 1/2")
(Superseded to 82459)

Note: Torque Specs 15-20 In/Lbs; 1.7-2.3 Nm

$

$

Not available

8

Homelite UP04155

Screw-Hex Hd. (10-24 x 5/8")
(Superseded to PS01605)

Note: Torque Specs 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

9

Homelite UP04126

WASHER-Flanged
(Superseded to 099078001005)

$6.49

$

In Stock, only 1 left!

0

10

Homelite UP04128

ADAPTER-Shaft
(Superseded to 04355)

Note: Torque Specs 100-120 In/Lbs; 11.3-13.6 Nm

$11.99

$

Usually ships in 3-7 days

0

11

Homelite UP04888

GRASS DEFLECTOR KIT
(Superseded to UP04888A)

$

$

Not available

12

Homelite UP04893

WING NUT
(Superseded to PS02453)

Note: Torque Specs Hand Tight

$1.49

$

In Stock, only 3 left!

0

13

Homelite UP04890

BLADE-Cut-off

$

$

Not available

14

Homelite UP03898

SCREW-Mach.Hex Hd. (10-24 X 3/8")
(Superseded to 82546)

Note: Torque Specs 30-40 In/Lbs; 3.4-4.5 Nm

$1.49

$

Usually ships in 3-7 days

0

15

Homelite UP04892

SCREW-Square Head
(Superseded to PS02435)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite DA03001A

STRINGHEAD-Complete (.080")
(Superseded to UP04408A)

Note: (UT20818)

$

$

Not available

Homelite DA04591A

STRINGHEAD-Complete (.095")
(Superseded to DA04591AA)

$60.99

$

In Stock, only 1 left!

0

17

Homelite UP06567

HOUSING & EYELET (Dual Line)
(Superseded to A98231A)

$

$

Not available

18

Homelite UP00145

SPOOL & STRING (.080")
(Superseded to 308044002)

$

$

Not available

Homelite UP00147

SPOOL & STRING (.095")
(Superseded to UP04661A)

$60.99

$

In Stock, only 1 left!

0

19

Homelite UP06526

SPRING-Compression
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

20

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available

21

Homelite UP00108

HARNESS
(Superseded to 944701)

$6.99

$

Usually ships in 3-7 days

0
