D24KH54 (960460037-01) - Dixon 54" Lawn Tractor, 24hp Kohler (2012-08) CHASSIS ENCLOSURES Parts Diagram

54" Lawn Tractor, 24hp Kohler

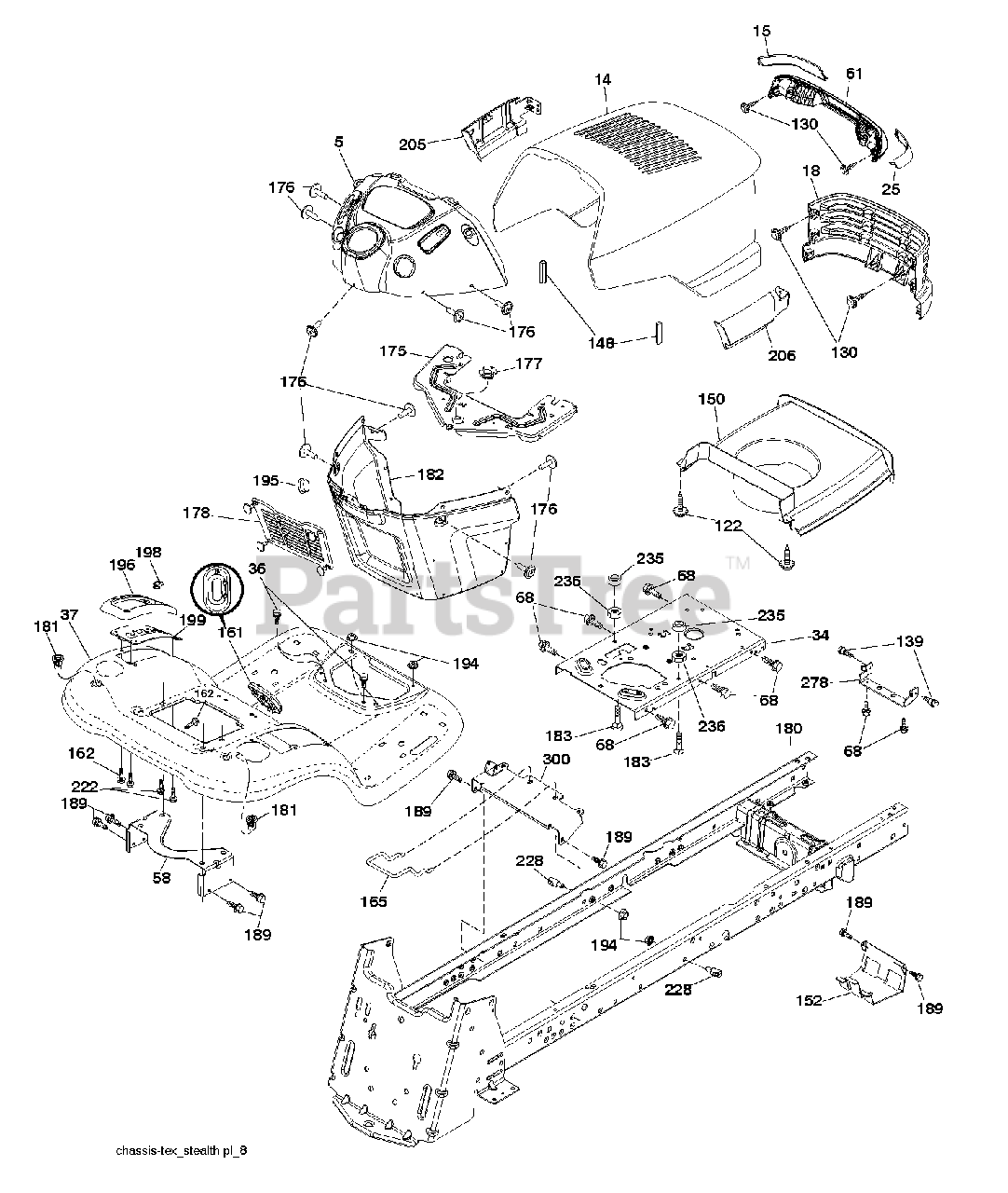

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Dixon 532436368

DASH.STEALTH.EL.LIFT.RND.428

$60.99

$

Usually ships in 3-10 days

0

14

Dixon 532436364

No Description Available

$194.99

$

Usually ships in 3-10 days

0

15

Dixon 532161841

LENS LH
(Superseded to 583125201)

Note: LH

$

$

Not available

18

Dixon 532187114

GRILLE

$120.99

$

In Stock, only 3 left!

0

25

Dixon 532161842

LENS RH
(Superseded to 583125201)

Note: RH

$

$

Not available

34

Dixon 580910801

No Description Available

$49.99

$

Usually ships in 3-10 days

0

36

Dixon 817060512

OBSOLETE - SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 532436369

FENDER.PNT.TXGT.ERGO.SD.FILL
(Superseded to 583733101)

$206.99

$

Usually ships in 3-10 days

0

58

Dixon 532194314

BRKT.SUPPORT.FNDR/TANK

$27.99

$

Usually ships in 3-10 days

0

61

Dixon 532434604

No Description Available

$36.99

$

Usually ships in 3-10 days

0

68

Dixon 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

122

Dixon 532192512

SCREW

$4.99

$

Usually ships in 3-10 days

0

130

Dixon 532416358

SCREW.#10 X 0.750.BOS THREAD

$

$

Not available

139

Dixon 532171873

OBSOLETE - BOLT, SHOULDER 5/16-18
(Superseded to 532179032)

$6.99

$

Usually ships in 3-10 days

0

148

Dixon 532164655

EXTRUSION BUMPER

$8.99

$

Usually ships in 3-10 days

0

150

Dixon 532190309

DUCT HEAT HOOD

$40.99

$

Usually ships in 3-10 days

0

152

Dixon 532199535

SHIELD BROWNING

$

$

Not available

161

Dixon 532411879

No Description Available

$8.99

$

Usually ships in 3-10 days

0

162

Dixon 532142432

SCREW,HEX

$6.49

$

Usually ships in 3-10 days

0

165

Dixon 532194330

SUPPORT.TANK.REAR.B/TE

$12.99

$

Usually ships in 3-10 days

0

175

Dixon 532193236

CROSSMEMBER.

$34.99

$

Usually ships in 3-10 days

0

176

Dixon 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5

0

177

Dixon 532195227

BUSHING.STEERING.YT/GT

$6.49

$

In Stock, Qty 20+

0

178

Dixon 532195651

CARGO.ASM.NET.DASH.LOWER

$9.99

$

Usually ships in 3-10 days

0

180

Dixon 532195477

CHASSIS
(Superseded to 582033001)

$265.99

$

Usually ships in 3-10 days

0

181

Dixon 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Dixon 532192551

DASH.LOWER.

$60.99

$

Usually ships in 3-10 days

0

183

Dixon 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Dixon 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

194

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Dixon 532404137

PLUG.HOLE.DASH.LOWER.1

$6.49

$

Usually ships in 3-10 days

0

196

Dixon 532435015

CONSOLE.ASM.DECK

$14.99

$

Usually ships in 3-10 days

0

198

Dixon 532441552

No Description Available

$15.99

$

Usually ships in 3-10 days

0

199

Dixon 532419351

PLATE.DECK.LIFT.ELECTRIC

$14.99

$

Usually ships in 3-10 days

0

205

Dixon 532187111

SKIRT.GRILLE.STEALTH.RH

Note: RH

$34.99

$

Usually ships in 3-10 days

0

206

Dixon 532187112

SKIRT.GRILLE.STEALTH.LH

Note: LH

$

$

Not available

222

Dixon 532137729

SCREW 1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

228

Dixon 532195161

STUD.FASTNER.W/D.ANTI-

$

$

Not available

235

Dixon 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Dixon 873930500

JAM LOCK NUT

$7.49

$

In Stock, only 1 left!

0

278

Dixon 532196394

BRKT.HOOD/MUFF.STEALTH

$9.99

$

Usually ships in 3-10 days

0

300

Dixon 532421774

BRACKET.ASM.LIFT.ELECTRIC

$

$

Not available

--

Dixon 532437216

No Description Available
(Superseded to 586064001)

$206.99

$

Usually ships in 3-10 days

0
