DB5054 A (DB752 A) - Honda Dozer Blade, Made in USA DOZER BLADE (DB5054-DB752A) Parts Diagram

Dozer Blade, Made in USA

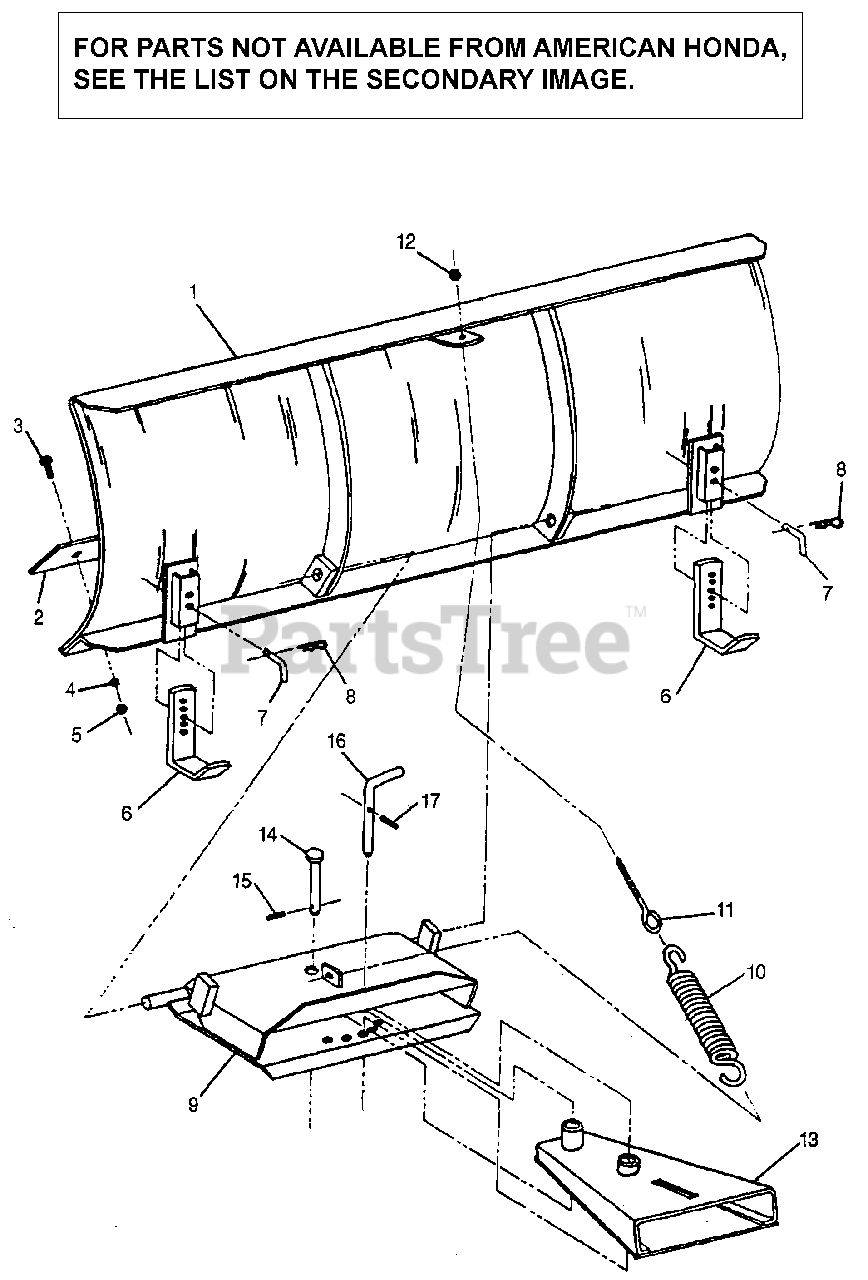

DOZER BLADE (DB5054-DB752A) Parts Diagram

  • Title

2

Honda 72997-0008

CUTTING EDGE (46")

$

$

Not available

2

Honda 72997-5302

CUTTING EDGE (54")

$87.99

$

Usually ships in 3-6 days

0

6

Honda 72997-0006

SHOE, SKID

$

$

Not available

7

Honda 72997-0007

PIN, SKID SHOE

$11.99

$

Usually ships in 3-6 days

0

9

Honda 72997-0009

HITCH BOX (46")

$

$

Not available

9

Honda 72997-5305

HITCH BOX (54")

$206.99

$

Usually ships in 3-6 days

0

10

Honda 76779-771-S00

SPRING, TENSIONER

$41.99

$

Usually ships in 3-6 days

0

11

Honda 72997-0002

BOLT, EYE (5/16"NCX5")

$2.49

$

Usually ships in 3-6 days

0

13

Honda 72997-0005

FEMALE HITCH

$

$

Not available

14

Honda 72997-0003

PIN, ADJUSTMENT

$18.99

$

Usually ships in 3-6 days

0

16

Honda 72997-0004

PIN, PIVOT

$

$

Not available

16

Honda 72997-5312

PIN, ADJUSTMENT (54")

$15.99

$

Usually ships in 3-6 days

0

18

Honda 72997-0010

PIN (3/4"DIAX18")

$26.99

$

Usually ships in 3-6 days

0
