DDSH52 (5900222) - Ferris 52" Quick Adjust Mower Deck 52" Quick Adjust Mower Deck - Frame, Caster & Shield Parts Diagram

52" Quick Adjust Mower Deck

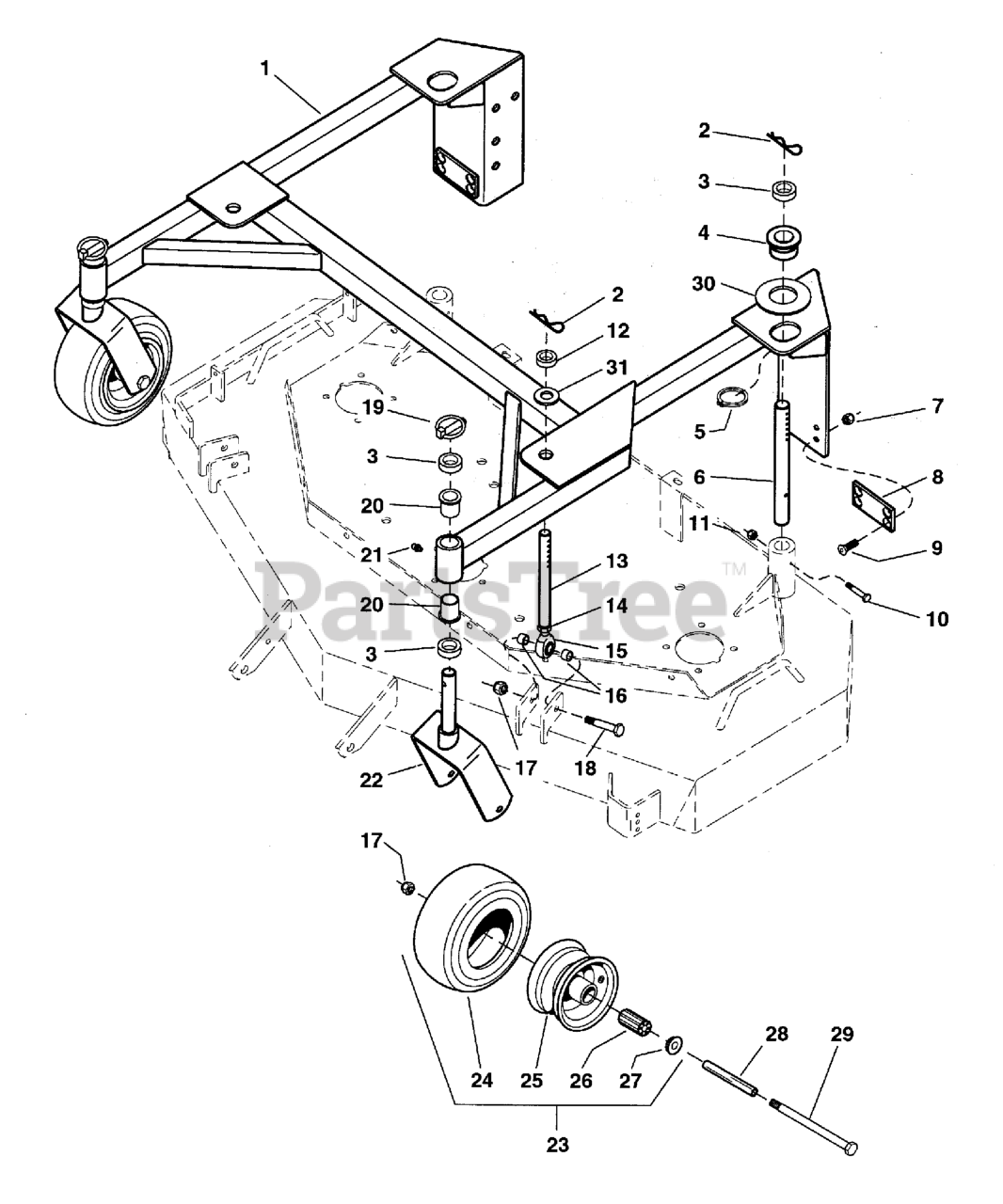

52" Quick Adjust Mower Deck - Frame, Caster & Shield Parts Diagram

  • Title

1

Ferris 5045955B

52" MOUNT FRAME

$655.99

$

Usually ships in 2-12 days

0

2

Ferris 5025302

HAIRPIN CLIP

$

$

Currently unavailable

3

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

Usually ships in 2-12 days

0

4

Ferris 5045979

DECK HEIGHT BUSHING

$54.99

$

Usually ships in 2-12 days

0

5

Ferris 5022455

SNAP RING, External

$2.49

$

Usually ships in 2-12 days

0

6

Ferris 5045980

ADJUSTMENT ROD, Rear

$43.99

$

Usually ships in 2-12 days

0

7

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

8

Ferris 5100780

FRICTION PLATE

$29.99

$

Usually ships in 2-12 days

0

9

Ferris 5025594

SCREW, 5/16-18 X 1 PHILLIPS HD, BZ
(Superseded to 5025594YP)

Note: (Was 5025303)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5025010X18

BOLT, 1/4-20 x 2-1/4
(Superseded to 5025010X18SM)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

12

Ferris 5046011

SPACER, .76 x 1.25 x .50

$10.99

$

Usually ships in 2-12 days

0

13

Ferris 5045981

ADJUSTMENT ROD, Front

$106.99

$

Usually ships in 2-12 days

0

14

NUT, 1/2-20 Hex

$

$

Not available

15

Ferris 5022434

BALL JOINT, 1/2-20 Male
(Superseded to 5022434SM)

$42.99

$

Usually ships in 2-12 days

0

16

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, only 3 left!

0

17

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

18

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

19

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 4 left!

0

20

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

21

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5045993B

CASTER YOKE

$91.99

$

Usually ships in 2-12 days

0

23

USE 5101418 - WHEEL, CASTER, 11 X 4 - 5 SILVER, BEAD LOCK (Max PSI: 25)

Note: (Includes Ref No. 24 - 27) (Replacement Wheel for 5101418 is 5101418X2)

$

$

Not available

24

Ferris 5022433X1

TIRE, Front 11 x 4.0 x 5

$70.99

$

Usually ships in 2-12 days

0

25

Ferris 5022433SX2

WHEEL ASSEMBLY, for 11 x 4.0 x 5 Tires, Complete
(Superseded to 5101418X2YP)

Note: (Includes Ref No. 26 & 27)

$84.99

$

In Stock, only 1 left!

0

26

Ferris 5022579

BEARING, Roller

Note: (2 per tire)

$13.99

$

Usually ships in 2-12 days

0

27

Ferris 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

28

Ferris 5045996

AXLE, Front Caster
(Superseded to 5045996SM)

$15.99

$

In Stock, only 2 left!

0

29

Ferris 5025017X52

BOLT, 1/2-13 x 6-1/2
(Superseded to 5025017X52SM)

$10.99

$

In Stock, only 2 left!

0

30

Ferris 5025304

WASHER, 1-1/2" SAE

$13.99

$

Usually ships in 2-12 days

0

31

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, only 3 left!

0
