DE 40 (25A-564A100) - Cub Cadet Edger Engine (1998) Carburetor, Base & Crankshaft Parts Diagram

Edger Engine

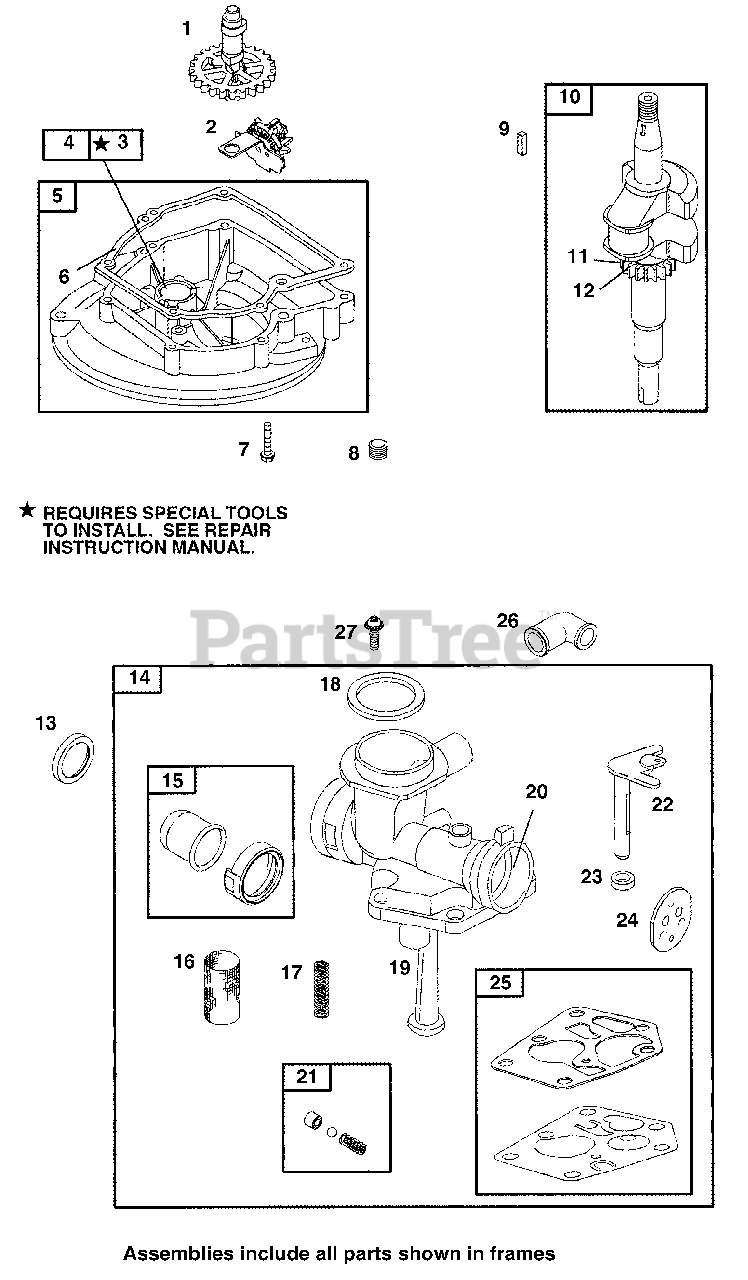

Carburetor, Base & Crankshaft Parts Diagram

  • Title

1

Cub Cadet BS-493747

Cam Gear (Clockwise)

$

$

Not available

2

Cub Cadet BS-491688

Oil Slinger/Governor

$

$

Not available

3

Cub Cadet BS-293709

Bushing

$11.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-391483

Oil Seal
(Superseded to BS-391483S)

$5.99

$

In Stock, Qty 9

0

5

Cub Cadet BS-395384

Engine Sump

$

$

Not available

6

Cub Cadet BS-270833

Crankcase Gasket (Standard)
(Superseded to BS-692218)

$

$

Not available

Cub Cadet BS-270895

Crankcase Gasket (.005")

$9.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-94682

Hex Screw

$

$

Not available

8

Cub Cadet BS-94880

Oil Drain Plug
(Superseded to BS-691680)

$5.99

$

In Stock, only 3 left!

0

9

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

10

Cub Cadet BS-499000

Crankshaft
(Superseded to BS-796217)

$172.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-499047

Timing Key

$4.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-264533

Timing Gear

$

$

Currently unavailable

13

Cub Cadet BS-281661

Trim Ring (Primer Bulb)
(Superseded to BS-694394)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-498811

Carburetor
(Superseded to BS-795477)

$

$

Not available

15

Cub Cadet BS-494408

Carburetor Primer
(Superseded to BS-694394)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet BS-262734

Carburetor Screen

$

$

Not available

17

Cub Cadet BS-262764

Choke Diaphragm Spring
(Superseded to BS-691839)

$5.99

$

In Stock, only 2 left!

0

18

Cub Cadet BS-271139

Air Cleaner Gasket

$

$

Not available

19

Cub Cadet BS-496046

Pickup Tube
(Superseded to BS-496046S)

$8.99

$

In Stock, only 1 left!

0

20

Cub Cadet BS-270344

Intake Manifold Seal
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-494409

Check Valve Seat

$

$

Not available

22

Cub Cadet BS-281437

Throttle Shaft

$

$

Not available

23

Cub Cadet BS-280566

Dust Seal

$

$

Not available

24

Cub Cadet BS-224412

Throttle Valve
(Superseded to BS-691190)

$7.49

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-495770

Carburetor Diaphragm
(Superseded to BS-795083)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet BS-67838

Grommet
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet BS-94924

Screw Phillips

$

$

Not available
