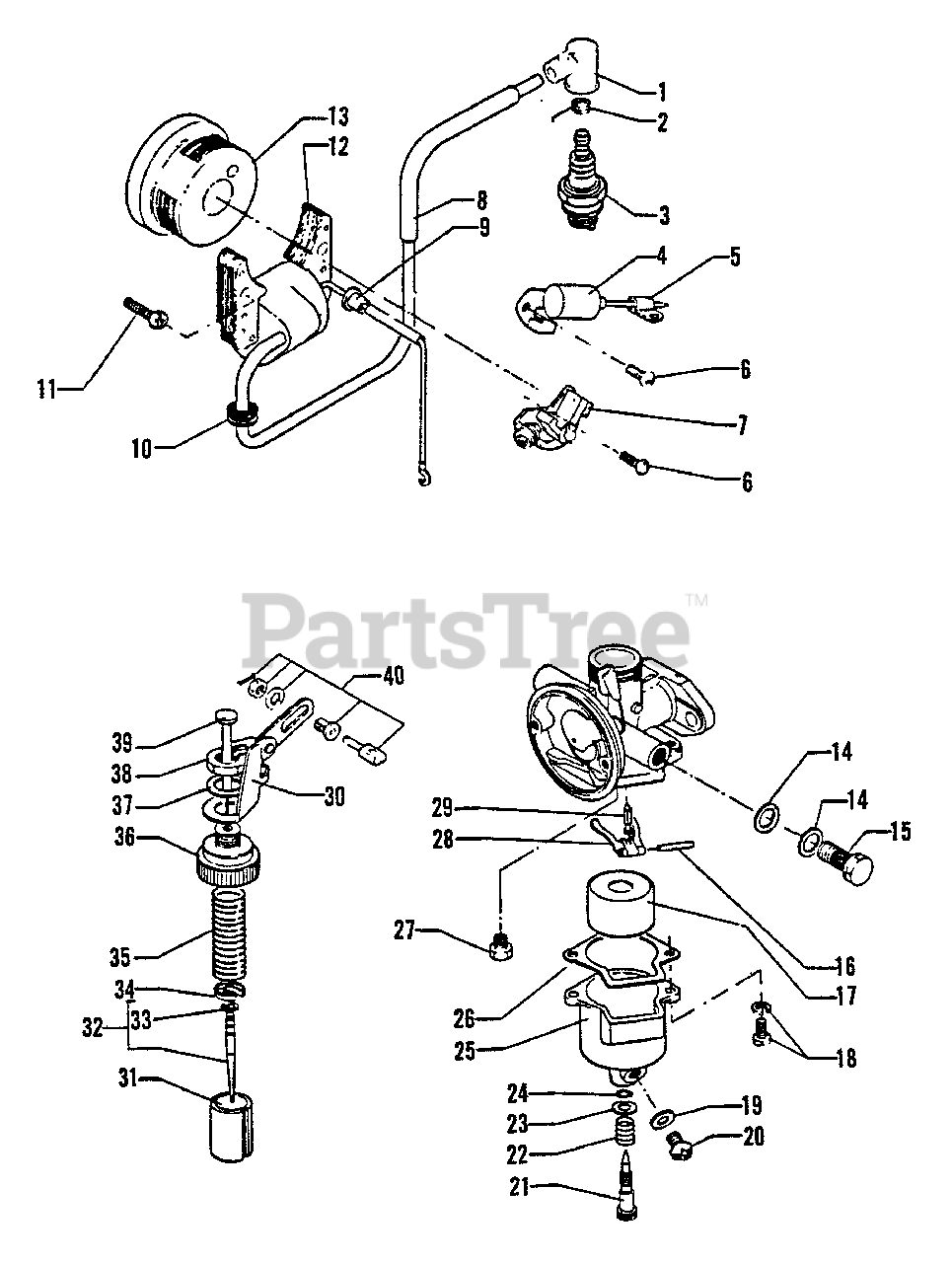

DM-9 - Echo Duster / Mister Ignition, Carburetor Parts Diagram

Duster / Mister

Ignition, Carburetor Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

2

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 20+

0

3

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

4

Echo 15012700910

CONDENSER

$18.99

$

Usually ships in 2-4 days

0

5

Echo 15911201110

CLAMP

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

7

Echo 15010100910

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

8

Echo 15011101110

TUBE

$0.99

$

In Stock, only 1 left!

0

9

Echo 15011400310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

10

Echo 15011200310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

11

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

12

Echo 15012601110

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

13

Echo 15020001110

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

Echo 12000001112

CARBURETOR
(Superseded to Discontinued)

Note: INCLUDES THE FOLLOWING

$

$

Not available

14

Echo 12013000120

GASKET

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12013100120

BOLT, BANJO
(Superseded to Discontinued)

$

$

Not available

16

Echo 12013200120

PIN, METERING LEVER
(Superseded to Discontinued)

$

$

Not available

17

Echo 12013301110

FLOAT
(Superseded to Discontinued)

$

$

Not available

18

Echo 90024104014

SCREW - 4X14

$0.99

$

Usually ships in 2-4 days

0

19

Echo 12013600120

GASKET, DRAIN

$0.99

$

In Stock, only 1 left!

0

20

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 12

0

21

Echo 12012801110

NEEDLE, METERING
(Superseded to Discontinued)

$

$

Not available

22

Echo 12012901110

SPRING, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

23

Echo 12012601110

WASHER
(Superseded to Discontinued)

$

$

Not available

24

Echo 12012500120

O-RING
(Superseded to 12012501110)

$

$

Not available

25

Echo 12012401111

CHAMBER, FLOAT
(Superseded to Discontinued)

$

$

Not available

26

Echo 12012301110

GASKET, FLOAT CHAMBER
(Superseded to Discontinued)

$

$

Not available

27

Echo 12012201111

JET, MAIN
(Superseded to Discontinued)

$

$

Not available

28

Echo 12012101110

LEVER, METERING
(Superseded to Discontinued)

$

$

Not available

29

Echo 12010201110

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

30

Echo 12010001110

LEVEL ASSY
(Superseded to Discontinued)

$

$

Not available

31

Echo 12011801111

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

32

Echo 12010301111

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

33

Echo 12011610211

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

34

Echo 12011500220

SEAT, SPRING

$2.49

$

Usually ships in 2-4 days

0

35

Echo 12011400220

SPRING, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

36

Echo 12011301110

COVER - TOP

$14.99

$

Usually ships in 2-4 days

0

37

Echo 12011200120

WASHER
(Superseded to Discontinued)

$

$

Not available

38

Echo 12011100120

NUT
(Superseded to Discontinued)

$

$

Not available

39

Echo 12011000220

BAR, LINK

$14.99

$

Usually ships in 2-4 days

0

40

Echo 12010101110

CONNECTOR
(Superseded to Discontinued)

$

$

Not available
