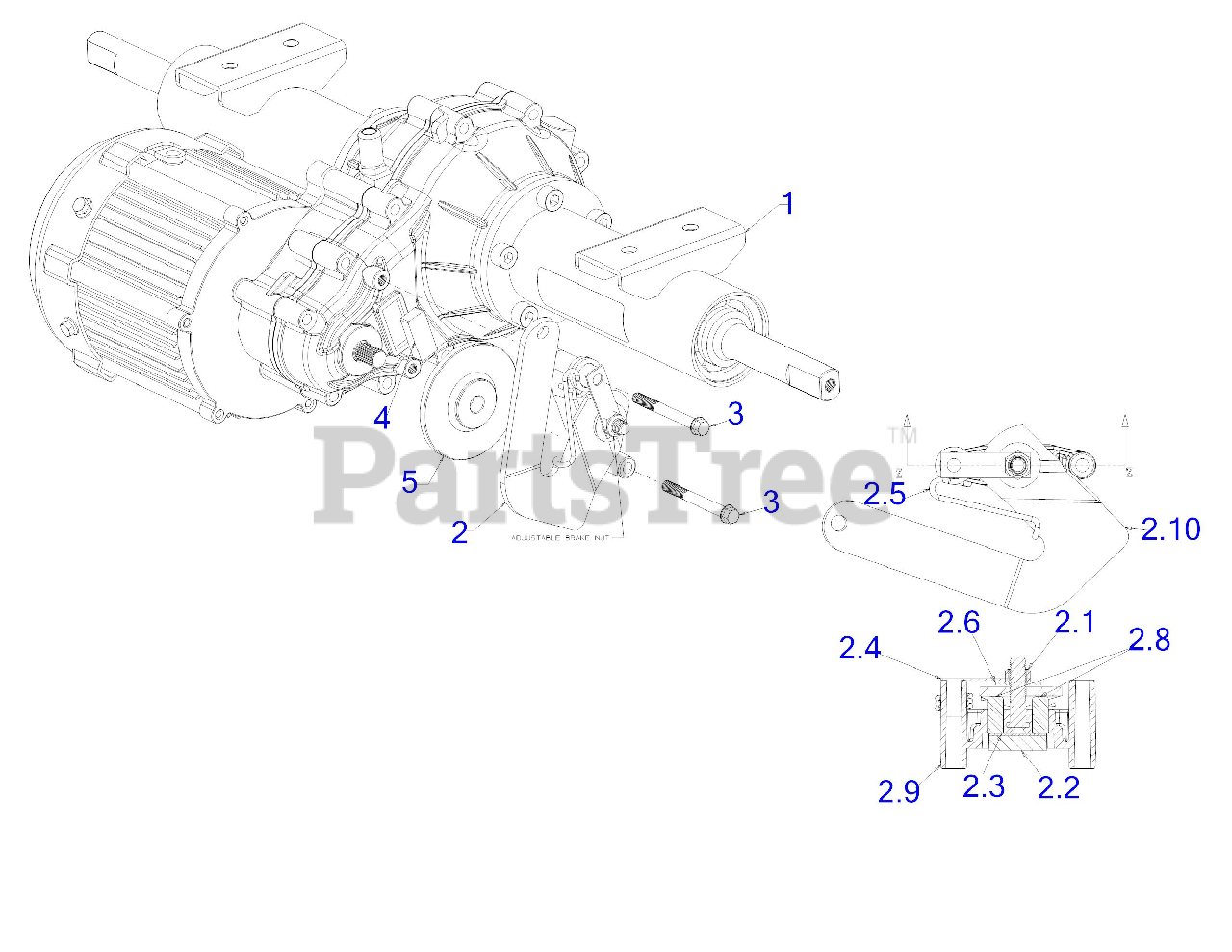

E 150 (CMXGRAM1130049) (33AA27JD793) - Craftsman Rear-Engine Riding Mower, Electric (2020) Transmission Brake Parts Diagram

Rear-Engine Riding Mower, Electric

Transmission Brake Parts Diagram

  • Title

1

MTD 918-07424

TRANSMISSION ASSEMBLY

Note: (Includes Parts Below)

$850.99

$

Usually ships in 3-6 days

0

2

MTD 961-05011

YOKE BRAKE ASSEMBLY
(Superseded to 961-05011A)

$85.99

$

Usually ships in 3-6 days

0

2.1

MTD 912-0273

NUT

$4.99

$

Usually ships in 3-6 days

0

2.1

ACTUATOR ARM

Note: (Order Complete Assembly)

$

$

Not available

2.2

MTD 917-0678

BRAKE PUCK

$7.49

$

In Stock, Qty 20+

0

2.3

MTD 917-0682

PUCK PLATE

$9.99

$

In Stock, Qty 7

0

2.4

MTD 718-0150

ANTI ROTATION BRACKET

$4.99

$

Usually ships in 3-6 days

0

2.5

MTD 932-0742

TORSION SPRING

$4.99

$

Usually ships in 3-6 days

0

2.6

MTD 736-0371

FLAT WASHER

$4.49

$

In Stock, Qty 7

0

2.8

MTD 941-0343

ACTUATING PIN
(Superseded to 741-0343)

$

$

Not available

2.9

MTD 761-0198B

BRAKE YOKE
(Superseded to 961-0198B)

$25.99

$

In Stock, only 1 left!

0

3

MTD 710-06695

SCREW (M6-1 55 CL8.8)

$7.49

$

Usually ships in 3-6 days

0

4

MTD 917-0678

BRAKE PUCK

$7.49

$

In Stock, Qty 20+

0

5

MTD 718-05496

BRAKE DISC

$37.99

$

Usually ships in 3-6 days

0

MTD 918-07424

TRANSMISSION ASSEMBLY

$850.99

$

Usually ships in 3-6 days

0
