E 225 (CMXGRAM1164232) (33ACA7ZS793) - Craftsman Rear-Engine Riding Mower, Electric (2019) Dash Parts Diagram

Rear-Engine Riding Mower, Electric

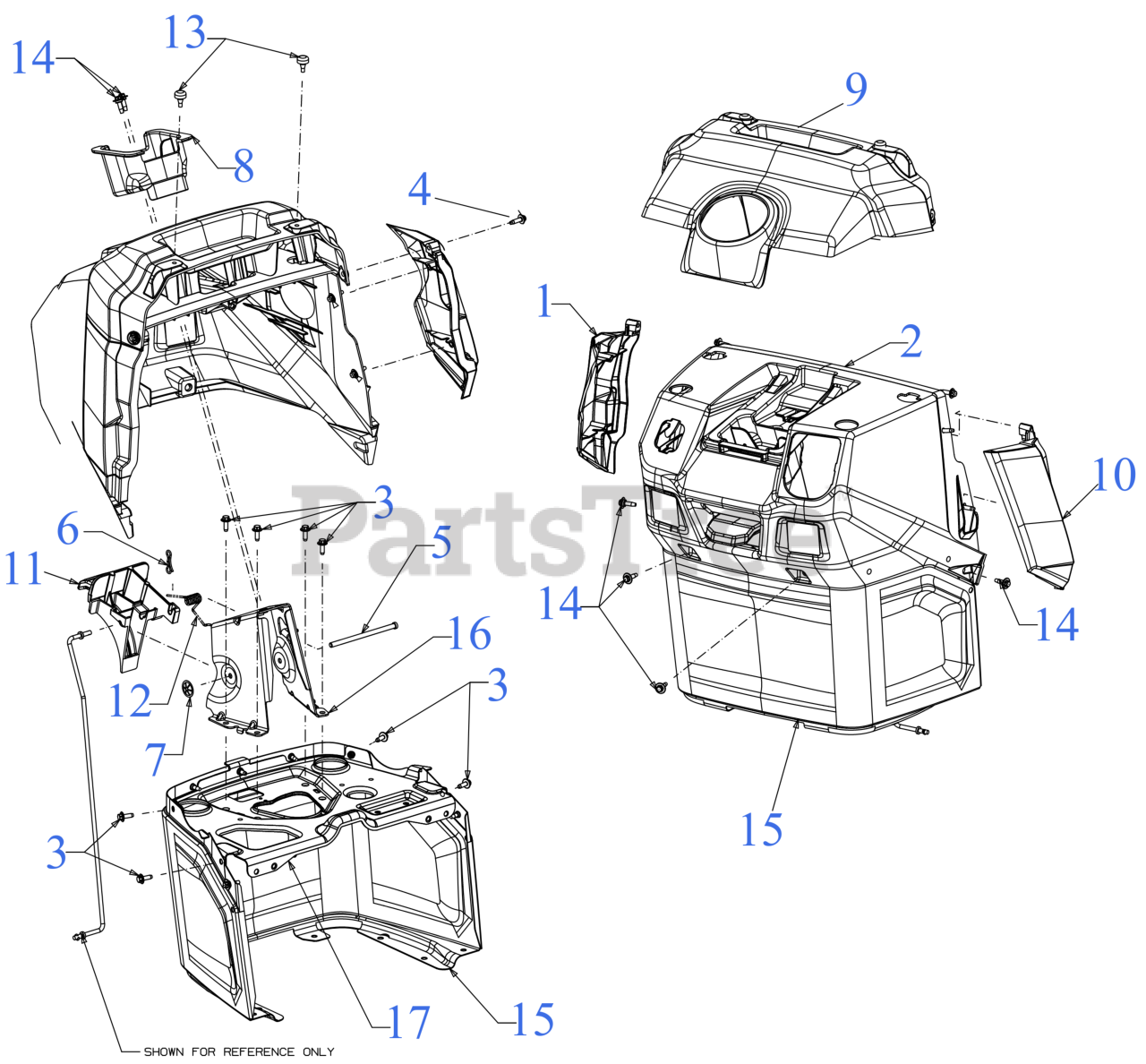

Dash Parts Diagram

  • Title

1

MTD 631-06179

DASH CAP (LH)

$28.99

$

Usually ships in 3-6 days

0

2

MTD 631-06399

DASH (UPPER)

$42.99

$

Usually ships in 3-6 days

0

3

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-06147

SCREW 1/4-10 x .750

$3.99

$

Usually ships in 3-6 days

0

5

MTD 711-06378

HINGE PIN .25 x 4.50

$3.99

$

Usually ships in 3-6 days

0

6

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

7

MTD 726-04012

PUSH ON NUT

$7.49

$

In Stock, Qty 12

0

8

MTD 731-10618

STEERING SHAFT BEARING

$14.99

$

Usually ships in 3-6 days

0

9

MTD 931-10973

UPPER DASH CAP (CRAFTSMAN)

$45.99

$

Usually ships in 3-6 days

0

10

MTD 731-10974

DASH SIDE CAP (RH)

$16.99

$

Usually ships in 3-6 days

0

11

MTD 731-13519

BRAKE LEVER

$7.99

$

Usually ships in 3-6 days

0

12

MTD 732-05199

TORSION SPRING .330 ID

$3.49

$

Usually ships in 3-6 days

0

13

MTD 735-0271A

BUMPER, .62 DIA x .3

$8.99

$

In Stock, Qty 20+

0

14

MTD 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0

15

MTD 783-08391A

LOWER DASH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-08391A-0637

Lower Dash - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 783-08391A-0606

DASH-LOWER - MAJESTIC ORANGE (0606)

$52.99

$

Usually ships in 3-6 days

0

MTD 783-08391A-0691

DASH-LOWER - BLACK JACK (0691)

$48.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

16

MTD 783-08538A

STEERING MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-08538A-0637

Steering Bearing Mounting Bracket - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

17

MTD 783-10089

DASH PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$27.99

$

Usually ships in 3-6 days

0
