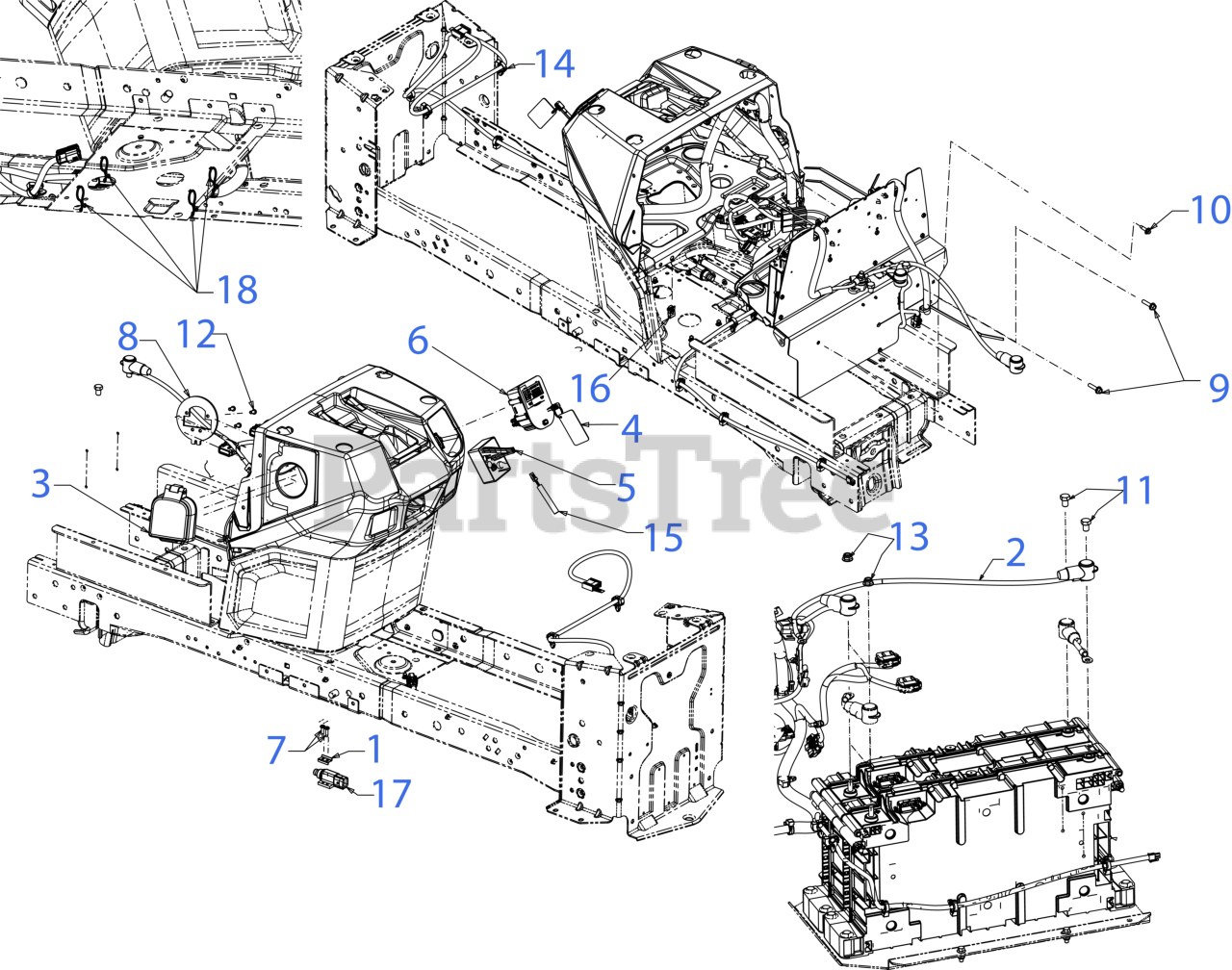

E 225 (CMXGRAM203301) (33CCA7ZS793) - Craftsman Rear-Engine Riding Mower, Electric (2021) Electrical Parts Diagram

Rear-Engine Riding Mower, Electric

Electrical Parts Diagram

  • Title

1

MTD 17962

PLATE-SWITCH

$4.99

$

In Stock, only 4 left!

0

2

MTD 625P05200

MOTOR CONTROL PANEL

$1390.99

$

Usually ships in 3-6 days

0

3

MTD 625P05390A

LI-ION CHARGE PORT ASSEMBLY

$169.99

$

Usually ships in 3-6 days

0

4

MTD 625-06990A

MAGNETIC KEY

$12.99

$

In Stock, only 3 left!

0

5

MTD 625-07791A

ELECTRIC MODULE

$673.99

$

Usually ships in 3-6 days

0

6

MTD 625P08831

VCM SWITCH ASSEMBLY
(Superseded to 625P08831A)

$

$

Not available

7

MTD 791-182195

SCREW #

$7.49

$

In Stock, Qty 7

0

8

MTD 703-08909

CHARGE PORT MOUNTING PLATE

$17.99

$

Usually ships in 3-6 days

0

9

MTD 710-05105

SCREW 1/4-20 x 1.0

$3.99

$

Usually ships in 3-6 days

0

10

MTD 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, only 1 left!

0

11

MTD 710-08794

SCREW 3/8-24 x .50" GR5 STD

$2.49

$

Usually ships in 3-6 days

0

12

MTD 710-1823

SCREW #12-16 x .625

$3.99

$

Usually ships in 3-6 days

0

13

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 725P09645

HARNESS (VCM HPD BATTERY)

$428.99

$

Usually ships in 3-6 days

0

15

MTD 725P15365

HARNESS(6.49K 13.3K)

$39.99

$

Usually ships in 3-6 days

0

16

MTD 726-3054

U-CLIP NUT

$4.99

$

In Stock, Qty 5

0

17

MTD 929-05136

SEALED PLUNGER SWITCH

$43.99

$

In Stock, only 1 left!

0

18

MTD 729-07541

TWIST LOCK CLIP

$3.49

$

Usually ships in 3-6 days

0
