E 2813524BVE (7800978-00) - Snapper 28" Rear-Engine Riding Mower, 13.5hp Mower Belt, Brake & Interlock Group Parts Diagram

28" Rear-Engine Riding Mower, 13.5hp

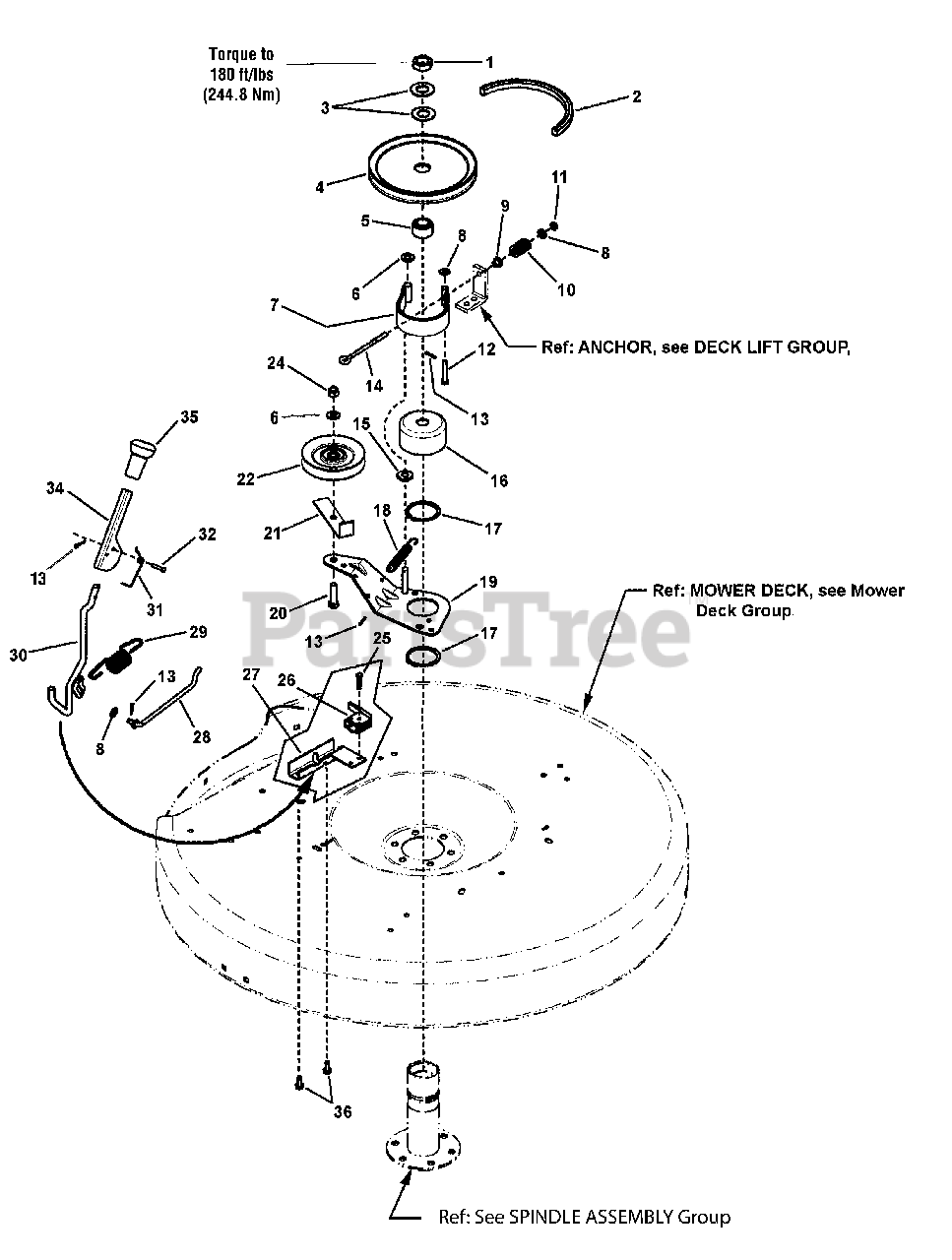

Mower Belt, Brake & Interlock Group Parts Diagram

  • Title

1

Snapper 7074467SM

NUT, 3/4-16 Hex Jam, GR 8

$4.49

$

In Stock, Qty 11

0

2

Snapper 7022252YP

BELT, Spindle Drive (72.75 AA Section, Kevlar)

$25.99

$

In Stock, Qty 20+

0

3

Snapper 7032027SM

WASHER, 49/64x1-1/2x.06, Flat

$4.49

$

In Stock, only 1 left!

0

4

Snapper 7018781YP

PULLEY, Deck Spindle, 6.95 OD
(Superseded to 7018781BMYP)

$43.99

$

Usually ships in 2-12 days

0

5

Snapper 7015290YP

HUB, Pulley, PM

$6.49

$

In Stock, only 2 left!

0

6

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 7

0

7

Snapper 7600133YP

KIT, Brake Band, 10.1" L, 1.25" H (Formed)

$41.99

$

Usually ships in 2-12 days

0

8

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 11

0

9

Snapper 7014343YP

BUSHING, Flanged, .27 ID, Nylon, Black

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7046782YP

SPRING, Rectangular Wire Die, Blue

$12.99

$

In Stock, only 1 left!

0

11

Snapper 704319

NUT, 1/4-20 Hex Top Lock, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7014304YP

PIN, 1/4 x 1-5/8 Clevis

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 703312

PIN, 3/32 X 3/4, GR5, Cotter, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7046677YP

EYE-BOLT, 1/4-20 x 4"

$6.99

$

Usually ships in 2-12 days

0

15

Snapper 7014314YP

SPACER, .31 I.D. x .39 O.D. x 1 Nylon

$4.99

$

In Stock, only 2 left!

0

16

Snapper 7035378YP

DRUM, Brake Spindle (3 OD, 1.6 Tall)

$11.99

$

In Stock, only 1 left!

0

17

Snapper 7010740YP

RING, 2 External Retaining

$5.49

$

In Stock, Qty 7

0

18

Snapper 7036521YP

SPRING, Extension, 4 x 1/2 Diameter

$7.49

$

In Stock, Qty 5

0

19

Snapper 706001

WELDMENT, Idler Arm, RER

$27.99

$

Usually ships in 2-12 days

0

20

Snapper 703406

SCREW, 3/8-16 X 1.50, Hex HD Cap, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 7

0

21

Snapper 7032111YP

RESTRICTOR, Belt, 2.18 w/Lock

$6.99

$

In Stock, Qty 7

0

22

Snapper 7029624YP

PULLEY, Idler, .375 ID, 4 OD

$35.99

$

In Stock, Qty 8

0

24

Snapper 703117

NUT, 3/8-16, Nylock, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7090299YP

SCREW, #10F X1, GR2, Hex Washer Self-Tap, ZP

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 7018524YP

SWITCH, Deck Interlock (NO)

$19.99

$

In Stock, only 1 left!

0

27

Snapper 7038021YP

MOUNT, Handle/Switch

$13.99

$

Usually ships in 2-12 days

0

28

Snapper 7012055YP

ROD, Idler Control

$15.99

$

In Stock, only 2 left!

0

29

Snapper 7014168YP

SPRING, Blade Handle

$6.49

$

In Stock, only 2 left!

0

30

Snapper 7059254YP

WELDMENT, Blade Engagement Handle

$39.99

$

Usually ships in 2-12 days

0

31

Snapper 7046648YP

SPRING, Torsion, Flip Handle

$5.49

$

In Stock, Qty 10

0

32

Snapper 7091974YP

PIN, 3/16 x 1" Clevis

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 7046567BMYP

HANDLE, Blade Engagement (Flip)

$13.99

$

In Stock, Qty 5

0

35

Snapper 7046874YP

GRIP, Handle

$9.99

$

In Stock, only 1 left!

0

36

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, only 2 left!

0
