E300 A (GE300) - Honda Generator, Made in Japan (SN: GE300-100001 - GE300-1106000) CRANKSHAFT + PISTON + RINGS Parts Diagram

Generator, Made in Japan

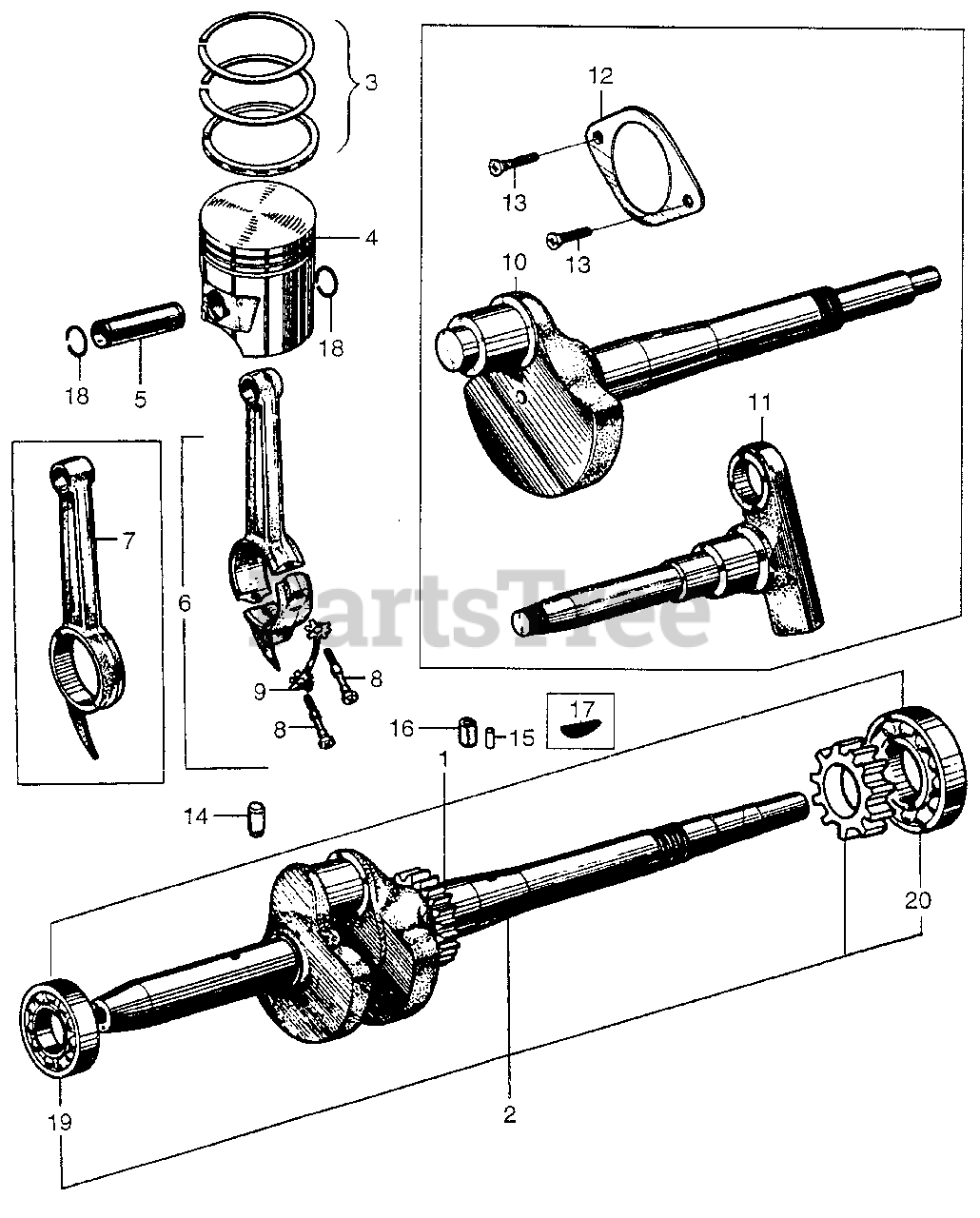

CRANKSHAFT + PISTON + RINGS Parts Diagram

  • Title

1

Honda 13000-812-000

CRANKSHAFT ASSY.

Note: Use from Engine SN 1058041.

$

$

Not available

3

Honda 13010-002-000

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$

$

Currently unavailable

3

Honda 13021-002-000

RING SET, PISTON (OS 0.25)

$56.99

$

Usually ships in 3-6 days

0

3

Honda 13031-002-000

RING SET, PISTON (OS 0.50)

$

$

Not available

3

Honda 13041-002-000

RING SET, PISTON (0.75)

$

$

Currently unavailable

4

Honda 13101-812-000

PISTON (STD) (NOT AVAILABLE)

$33.99

$

Usually ships in 3-6 days

0

4

Honda 13102-812-000

PISTON (OS 0.25)

$25.99

$

Usually ships in 3-6 days

0

4

Honda 13103-812-000

PISTON (OS 0.50)

$

$

Currently unavailable

4

Honda 13104-812-000

PISTON (0.75)

$

$

Currently unavailable

5

Honda 13111-812-000

PIN, PISTON

$

$

Currently unavailable

6

Honda 13200-812-000

ROD, CONNECTING

Note: Use from Engine SN 1058041.

$106.99

$

Usually ships in 3-6 days

0

7

Honda 13201-812-000

ROD, CONNECTING

Note: Use from Engine SN 0100001 to 1058040.

$

$

Not available

8

Honda 13203-812-000

BOLT, CONNECTING ROD

Note: Use from Engine SN 1058041.

$

$

Not available

9

Honda 13204-812-000

PLATE, LOCK (NOT AVAILABLE)

Note: Use from Engine SN 1058041.

$

$

Currently unavailable

10

Honda 13320-812-020

CRANKSHAFT, L.

Note: Use from Engine SN 0100001 to 1007891.

$

$

Not available

10

Honda 13320-812-030

CRANKSHAFT, L.

Note: Use from Engine SN 1007892 to 1058040.

$

$

Not available

11

Honda 13321-812-010

CRANKSHAFT, R.

Note: Use from Engine SN 0100001 to 1024398.

$

$

Not available

11

Honda 13321-812-333

CRANKSHAFT, R.

Note: Use from Engine SN 1024399 to 1058040.

$

$

Not available

12

Honda 13323-812-000

COVER, BEARING

Note: Use from Engine SN 0100001 to 1058040.

$

$

Not available

13

Honda 93600-05012

SCREW, FLAT (5X12) (NOT AVAILABLE)

Note: Use from Engine SN 0100001 to 1058040.

$

$

Currently unavailable

17

Honda 94401-25180

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 0100001 to 1106000.

$1.99

$

In Stock, Qty 12

0

18

Honda 94601-13000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

$0.99

$

In Stock, only 2 left!

0

19

Honda 96100-60020-00

BEARING, RADIAL BALL (6002)

$14.99

$

Usually ships in 3-6 days

0

20

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$16.99

$

In Stock, only 2 left!

0
