EA 250 (UT-15513) - Homelite YardSmart Attachment Edger Attachment - EA250 (UT15513) Parts Diagram

YardSmart Attachment

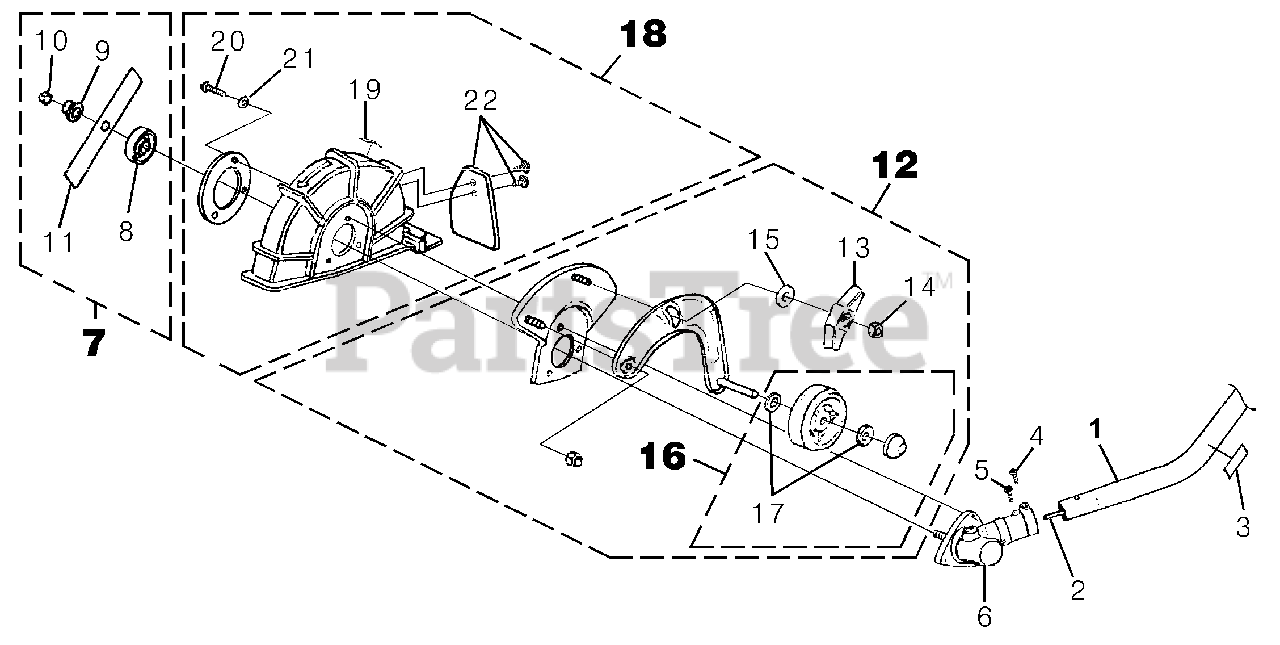

Edger Attachment - EA250 (UT15513) Parts Diagram

  • Title

1

Homelite UP03921

DRIVESHAFT HOUSING
(Superseded to UP03921A)

$

$

Not available

2

Homelite UP04369

SHAFT-Flexible
(Superseded to A07679)

$7.49

$

Usually ships in 3-7 days

0

3

Homelite UP04116

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

4

Homelite UP05572

SCREW-Cap Socket Hd. (1/4-20 X 7/8")
(Superseded to 82586)

Note: Torque Spec 40 - 50 in/lbs (4.5 - 5.6 Nm)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite UP04254

SCREW-Sems Hex Hd. (10-24 X 1/2")
(Superseded to 88049)

Note: Torque Spec 40 - 50 in/lbs (4.5 - 5.6 Nm)

$

$

Not available

6

Homelite UP04124

GEAR HEAD
(Superseded to PA01364)

$

$

Not available

7

Homelite UP06879

BLADE KIT

$14.99

$

Usually ships in 3-7 days

0

8

Homelite UP04126

WASHER-Flanged
(Superseded to 099078001005)

$6.49

$

In Stock, only 1 left!

0

9

Homelite UP04129

WASHER-Flanged (Lower)
(Superseded to 04409)

$2.49

$

In Stock, only 1 left!

0

10

Homelite UP04127

NUT-Lock
(Superseded to 678018001)

Note: Torque Spec 100 - 120 in/lbs (11.3 - 13.6 Nm)

$

$

Not available

11

Homelite D04359A

BLADE (2" X 9")

Note: (Qty.-2)

$

$

Not available

12

Homelite UP06881

SUPPORT ARM ASSEMBLY
(Superseded to UP06881A)

$37.99

$

Usually ships in 3-7 days

0

13

Homelite UP04132

KNOB-Adjusting
(Superseded to PS06364)

$

$

Not available

14

Homelite UP03397

NUT-Hex

$

$

Not available

15

Homelite UP04252

WASHER-Flat
(Superseded to PS84010)

$

$

Not available

16

Homelite UP06882

WHEEL KIT

$

$

Not available

17

Homelite UP04252

WASHER-Flat
(Superseded to PS84010)

$

$

Not available

18

Homelite UP06738

GUARD KIT
(Superseded to UP06738A)

$

$

Not available

19

Homelite UP04532

DECAL-Warning
(Superseded to 03871A)

$

$

Not available

20

Homelite UP04155

SCREW-Hex Hd. (10-24 X 5/8")
(Superseded to PS01605)

Note: Torque Spec 40 - 50 in/lbs (4.5 - 5.6 Nm)

$

$

Not available

21

Homelite UP03411

WASHER-Lock (#10)

$

$

Currently unavailable

22

Homelite UP06883

FLAP KIT

$

$

Not available
