EB11000 K1 A (EZGT) - Honda Generator, Made in Japan (SN: EZGT-1000001 - EZGT-1009999) FUEL TANK Parts Diagram

Generator, Made in Japan

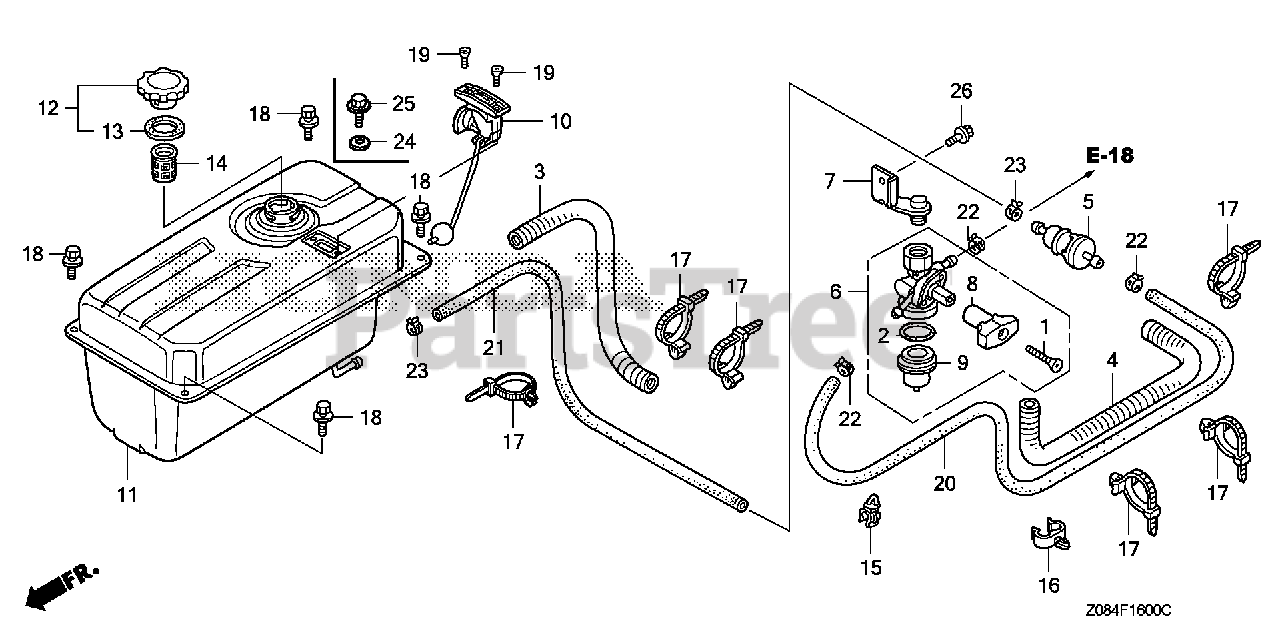

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-191-005

SCREW, OVAL (4X32)

$6.49

$

Usually ships in 3-6 days

0

2

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, Qty 6

0

3

Honda 16865-Z08-E30

PROTECTOR, TUBE (A)

$7.49

$

Usually ships in 3-6 days

0

4

Honda 16866-Z08-E30

PROTECTOR, TUBE (B)

$12.99

$

Usually ships in 3-6 days

0

5

Honda 16910-ZE8-015

FILTER, FUEL

$14.99

$

In Stock, Qty 5

0

6

Honda 16950-ZA0-023

SEE PART DETAILS - PRI; PETCOCK ASSY.

$102.99

$

In Stock, only 1 left!

0

7

Honda 16956-ZA0-010

STAY, PETCOCK

$13.99

$

Usually ships in 3-6 days

0

8

Honda 16963-191-005

LEVER, PETCOCK

$17.99

$

Usually ships in 3-6 days

0

9

Honda 16967-MA2-771

CUP, FUEL STRAINER

$33.99

$

Usually ships in 3-6 days

0

10

Honda 17505-ZC8-003

METER ASSY., FUEL

$28.99

$

Usually ships in 3-6 days

0

11

Honda 17510-Z08-E30ZB

TANK, FUEL *R280* (POWER RED)

$515.99

$

Usually ships in 3-6 days

0

12

Honda 17620-899-013

CAP, FUEL FILLER
(Superseded to 17620-899-023)

$40.99

$

In Stock, only 1 left!

0

13

Honda 17631-899-000

GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$7.99

$

In Stock, only 1 left!

0

14

Honda 17672-899-000

FILTER, FUEL

$17.99

$

In Stock, only 2 left!

0

15

Honda 17938-SE0-941

CLIP, THROTTLE WIRE

$9.49

$

Usually ships in 3-6 days

0

16

Honda 32127-MJ1-670

CLAMP, IGNITION WIRE

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM) (NATURAL)

$9.49

$

Usually ships in 3-6 days

0

18

Honda 93404-06016-07

BOLT-WASHER (6X16)

Note: Use up to Frame SN 1000035.

$2.49

$

Usually ships in 3-6 days

0

19

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, only 4 left!

0

20

Honda 95001-45003-50M

BULK HOSE, FUEL (4.5X3000) (4.5X800)

$82.99

$

In Stock, only 1 left!

0

21

Honda 95001-55003-50M

BULK HOSE, FUEL (5.5X3000) (5.5X700)

$78.99

$

Usually ships in 3-6 days

0

22

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.49

$

In Stock, Qty 10

0

23

Honda 95002-41050-08

CLAMP, TUBE (D10.5)

$3.49

$

In Stock, only 3 left!

0

24

Honda 94103-06700

WASHER, PLAIN (6MM)

Note: Use from Frame SN 1000036.

$0.99

$

In Stock, Qty 5

0

25

Honda 95701-06016-07

BOLT, FLANGE (6X16)

Note: Use from Frame SN 1000036.

$2.49

$

Usually ships in 3-6 days

0

26

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
