EBL 155420 H (2690892) - Beal 42" Lawn Tractor, Hydro Drive, 15.5hp (2010) 42" Mower Deck - Clutch & Support, with Guard (7501373) Parts Diagram

42" Lawn Tractor, Hydro Drive, 15.5hp

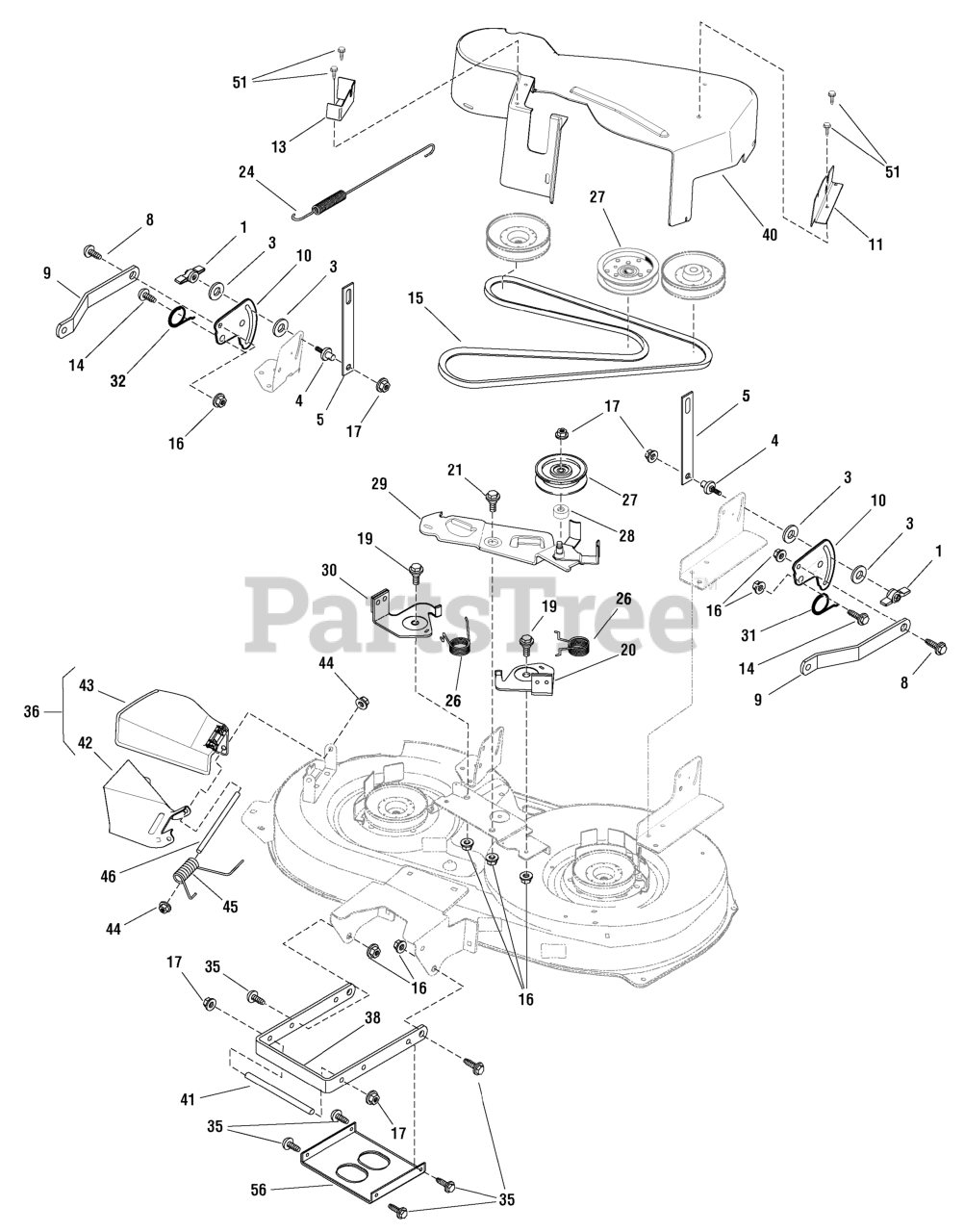

42" Mower Deck - Clutch & Support, with Guard (7501373) Parts Diagram

  • Title

1

Murray 094068MA

KNOB (5/16-18 nut enclosed)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

3

Murray 094137MA

FRICTION PAD

$6.99

$

In Stock, Qty 10

0

4

Murray 095194MA

PIN, Hanger, 3/8-16 x 1-1/4

$20.99

$

In Stock, only 1 left!

0

5

Murray 7300749BMYP

LINK, Lift (LT)
(Superseded to 690212E701MA)

$37.99

$

Usually ships in 2-12 days

0

8

Murray 009X52MA

BOLT, Shoulder, 3/8-16 x 1

$6.49

$

In Stock, only 2 left!

0

9

Murray 7300826BMYP

BRACKET, Suspension

$15.99

$

Usually ships in 2-12 days

0

10

Murray 7300878BMYP

PLATE SUSPENSION

$15.99

$

Usually ships in 2-12 days

0

11

Murray 1735566BMYP

PLATE, Guard, L.H.

$37.99

$

Usually ships in 2-12 days

0

13

Murray 1735614BMYP

PLATE, Guard, R.H.

$26.99

$

Usually ships in 2-12 days

0

14

Murray 009X51MA

BOLT, Shoulder 3/8-16 x 1

$4.99

$

In Stock, Qty 16

0

15

Murray 037X88MA

BELT, V Mower Drive 42"

$33.99

$

In Stock, Qty 6

0

16

Murray 015X84MA

NUT, Hex Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Murray 015X98MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 009X39MA

BOLT, Shoulder, 3/8-16 x 5/8

$6.49

$

In Stock, Qty 9

0

20

Murray 7400244BMYP

BRAKE ASSEMBLY, L.H.

$101.99

$

Usually ships in 2-12 days

0

21

Murray 017X91MA

WASHER, Flat, 3/4

$5.49

$

In Stock, only 1 left!

0

24

Murray 165X119MA

SPRING, Extension

$13.99

$

In Stock, only 2 left!

0

26

Murray 166X41MA

SPRING, Torsion Brake

$4.99

$

In Stock, only 2 left!

0

27

Murray 690387MA

PULLEY, Idler, 4"

$

$

Not available

28

Murray 690369MA

SPACER, 1/2in to 17mm

$5.99

$

In Stock, only 3 left!

0

29

Murray 7400245BMYP

IDLER ARM ASSEMBLY, 42"

$213.99

$

In Stock, only 1 left!

0

30

Murray 7400243BMYP

BRAKE ASSEMBLY, R.H.

$94.99

$

Usually ships in 2-12 days

0

31

Murray 166X43MA

SPRING, Torsion Left

$4.99

$

In Stock, only 3 left!

0

32

Murray 166X42MA

SPRING, Torsion Right

$4.99

$

In Stock, Qty 10

0

35

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

36

Murray 094707MA

DEFLECTOR ASSEMBLY

Note: (Includes Ref Nos 42 & 43)

$108.99

$

Usually ships in 2-12 days

0

38

Murray 7300767BMYP

BRACKET, Front Suspension

$33.99

$

Usually ships in 2-12 days

0

40

Murray 7102795YP

COVER, Deck 42"

$330.99

$

Usually ships in 2-12 days

0

41

Murray 094158ZMA

ROD HANGER

$28.99

$

In Stock, only 1 left!

0

42

Murray 7300846AYP

SUPPORT, Deflector

$35.99

$

Usually ships in 2-12 days

0

43

Murray 094687MA

DEFLECTOR, Chute

$78.99

$

Usually ships in 2-12 days

0

44

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 11

0

45

Murray 0166X4MA

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

46

Murray 094957ZMA

ROD, Deflector

$10.99

$

Usually ships in 2-12 days

0

49

Murray 7091601SM

NUT, Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

51

Murray 1960536SM

SCREW, Hex, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

54

Murray 094066MA

SCREW, Guide

$14.99

$

Usually ships in 2-12 days

0

55

Murray 7300859BMYP

GUIDE, Belt

$31.99

$

In Stock, Qty 6

0

56

Murray 7300871BMYP

STIFFENER

$18.99

$

Usually ships in 2-12 days

0
