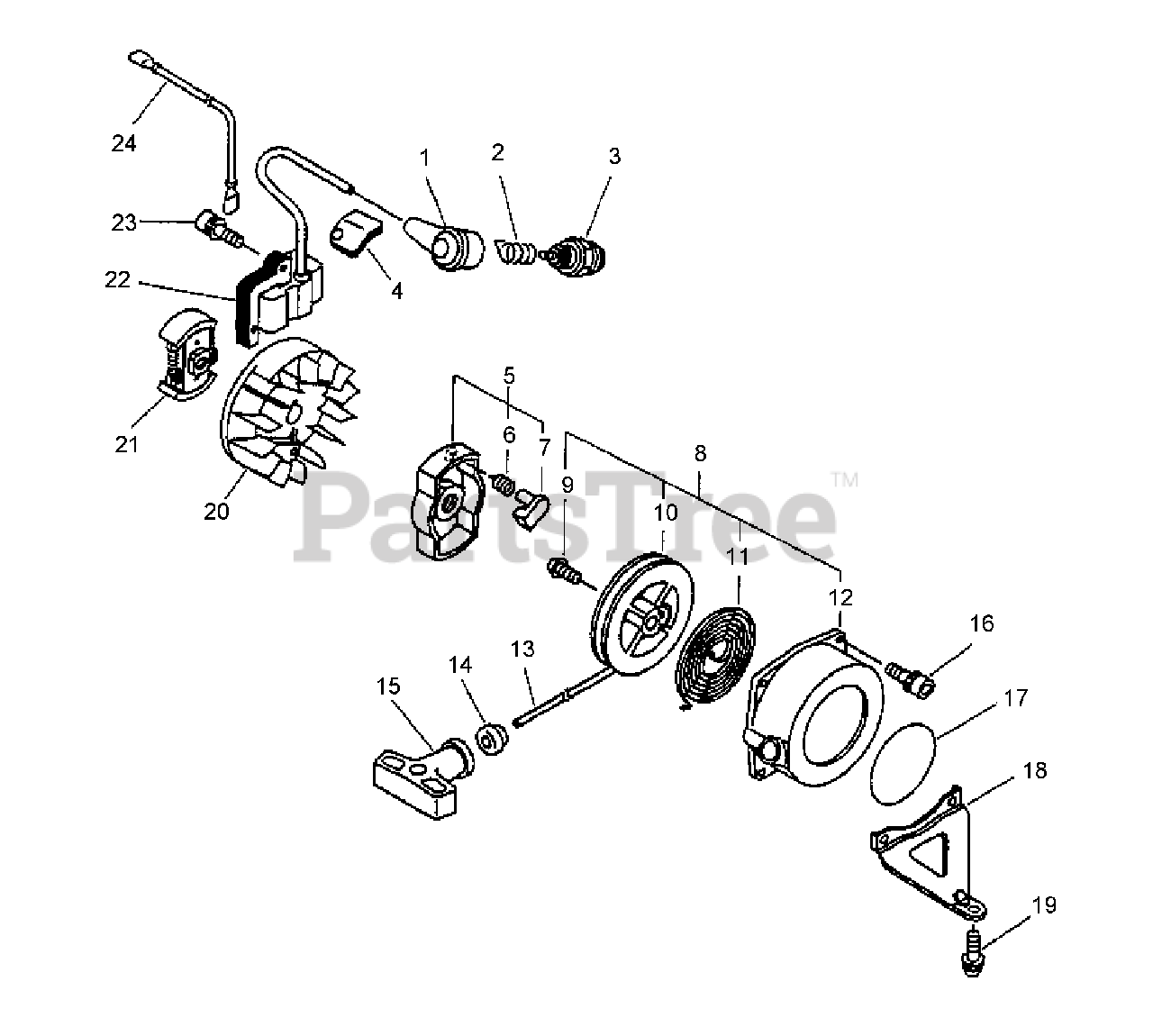

ED-2000 - Echo Engine Drill (Type 1E) Ignition, Starter, Clutch, Fuel System Parts Diagram

Engine Drill (Type 1E)

Ignition, Starter, Clutch, Fuel System Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

2

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo 99944500071

SPARK PLUG -- BPM-7Y

$3.49

$

In Stock, Qty 8

0

4

Echo 15011242030

COVER, DUST

$2.99

$

Usually ships in 2-4 days

0

5

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes ITEMS 6 & 7

$16.99

$

In Stock, Qty 20+

0

6

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 20+

0

7

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

8

Echo 17720042033

STARTER ASSY

Note: INCLUDES ITEMS 9 - 15

$49.99

$

In Stock, Qty 20+

0

9

Echo 17723644330

SCREW

$3.49

$

In Stock, Qty 13

0

10

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 20+

0

11

------------------

ROPE, STARTER - 3X990

Note: RePower BULK OPTION: 99944440000

$

$

Not available

12

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 19

0

13

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

14

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 20+

0

15

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 3 left!

0

16

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

17

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 15

0

18

Echo 35101105560

SUPPORT, REAR HANDLE

$10.99

$

Usually ships in 2-4 days

0

19

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

20

Echo 15680144731

FLYWHEEL

$105.99

$

Usually ships in 2-4 days

0

21

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

Note: S/N 001001 - 501120

$27.99

$

In Stock, Qty 20+

0

21

Echo 17500052130

CLUTCH ASSY

Note: S/N 501121 & UP

$39.99

$

Usually ships in 2-4 days

0

22

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$133.99

$

In Stock, only 2 left!

0

23

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

24

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$3.99

$

In Stock, Qty 9

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$29.99

$

In Stock, Qty 15

0
