ELT 16538RD (2690935) - Snapper 38" Lawn Tractor, 16.5hp Engine Group - 16.5 Gross HP Parts Diagram

38" Lawn Tractor, 16.5hp

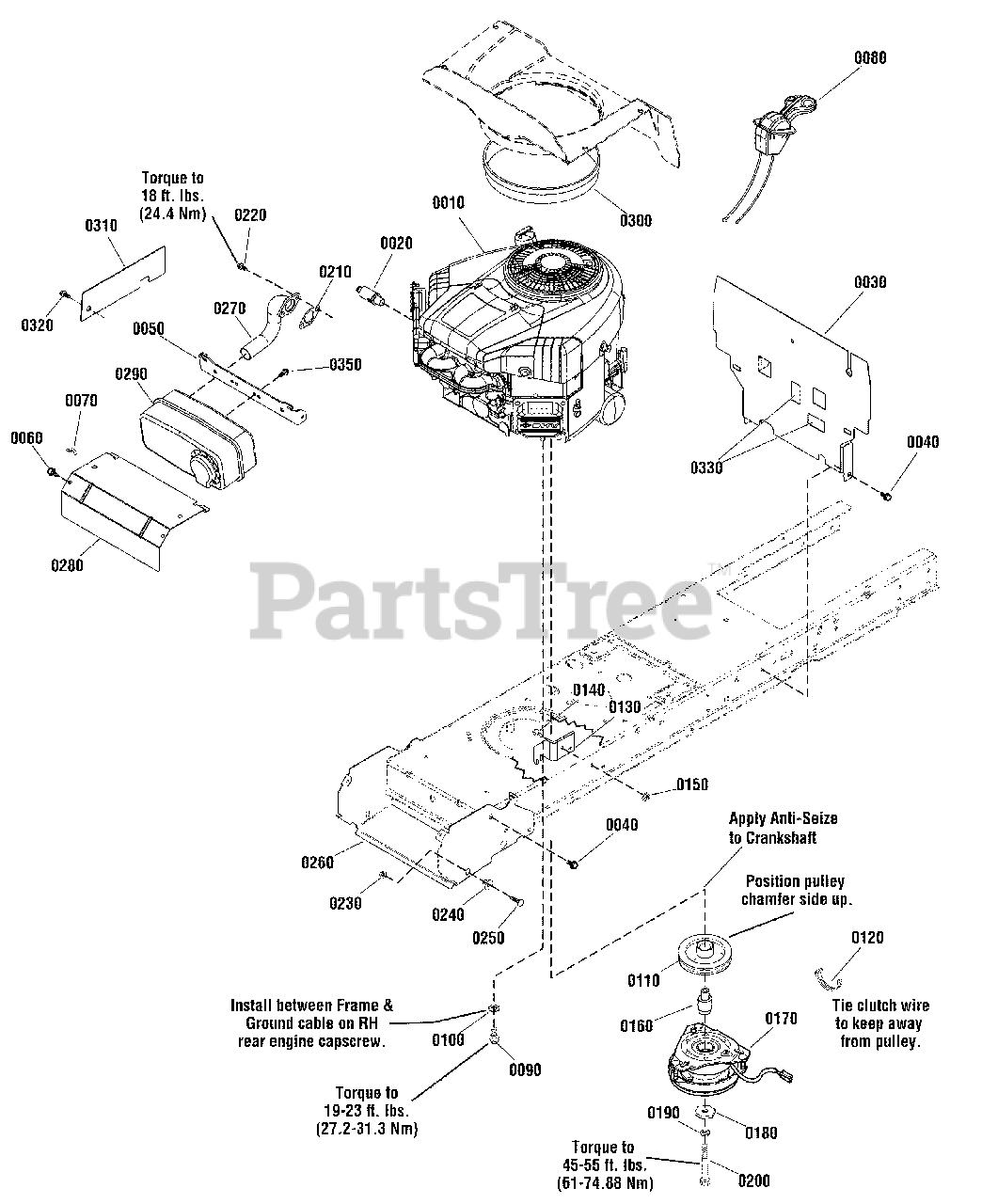

Engine Group - 16.5 Gross HP Parts Diagram

  • Title

0010

Snapper 31E777-0142-B1

* ENGINE, 16.5HP Briggs & Stratton

Note: (Engine Model: 31E777-0142-B1)

$

$

Currently unavailable

0020

Snapper 1750159

VALVE, Shut Off Oil Drain
(Superseded to 1750159YP)

$15.99

$

Usually ships in 2-12 days

0

0030

Snapper 1728058

HEAT SHIELD
(Superseded to 1728058SM)

$42.99

$

Usually ships in 2-12 days

0

0040

Snapper 1930601

SCREW, Hex Washer, Taptit, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0050

Snapper 1727976

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

0060

Snapper 810215

CAPSCREW, Socket Head
(Superseded to 794844)

$4.99

$

In Stock, only 4 left!

0

0070

Snapper 2834683

WIRE CLIP
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

0080

Snapper 885440

THROTTLE CONTROL, Double
(Superseded to 885440YP)

$74.99

$

Usually ships in 2-12 days

0

0090

Snapper 2827187

SCREW, Hex Washer, Taptit, 3/8-16 x 1
(Superseded to 1927187SM)

$4.49

$

In Stock, only 4 left!

0

0100

Snapper 2820427

LOCKWASHER, External Tooth
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0110

Snapper 1732576

PULLEY & HUB ASSEMBLY, Engine
(Superseded to 1732576SM)

$42.99

$

In Stock, only 1 left!

0

0120

Snapper 1701011

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0130

Snapper 885535A

BRACKET, Electric Clutch Torque
(Superseded to 885535AYP)

$29.99

$

Usually ships in 2-12 days

0

0140

Snapper 1921332

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

0150

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0160

Snapper 885427

SPACER, Electric Clutch
(Superseded to 885427YP)

$13.99

$

Usually ships in 2-12 days

0

0170

Snapper 885443

CLUTCH, Electric
(Superseded to 885443YP)

$370.99

$

Usually ships in 2-12 days

0

0180

Snapper 1708264

WASHER, 7/16
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 7

0

0190

Snapper 1918199

LOCKWSHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

0200

Snapper 7102075

CAPSCREW, Hex Head, 7/16-20 x 5
(Superseded to 7102075YP)

$7.99

$

In Stock, only 1 left!

0

0210

Snapper 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

0220

Snapper 94480

* SCREW, Hex SEMS Lock Washer 5/16-18 x 7/8
(Superseded to 690341)

$5.99

$

In Stock, only 2 left!

0

0230

Snapper 1931277

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0240

Snapper 1728086

PIVOT, Hood
(Superseded to 1728086SM)

$5.99

$

In Stock, only 1 left!

0

0250

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0260

Snapper 1727982

BRACKET, Muffler
(Superseded to 1727982ASM)

$70.99

$

Usually ships in 2-12 days

0

0270

Snapper 1728959

EXHAUST PIPE
(Superseded to 1728959SM)

$34.99

$

Usually ships in 2-12 days

0

0280

Snapper 1727996

HEAT SHIELD
(Superseded to 7300918ASM)

$48.99

$

Usually ships in 2-12 days

0

0290

Snapper 885615

MUFFLER, Briggs & Stratton, Single
(Superseded to 885615YP)

$66.99

$

Usually ships in 2-12 days

0

0300

Snapper 1734166

EDGING, Rubber
(Superseded to 1734166SM)

$21.99

$

Usually ships in 2-12 days

0

0310

Snapper 1736025A

GUARD, Pulley

$

$

Not available

0320

Snapper 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0330

Snapper 7070814

TRIM
(Superseded to 1735680SM)

$8.99

$

Usually ships in 2-12 days

0

0350

Snapper 810215

CAPSCREW, Socket Head, Torx Recess
(Superseded to 794844)

$4.99

$

In Stock, only 4 left!

0
