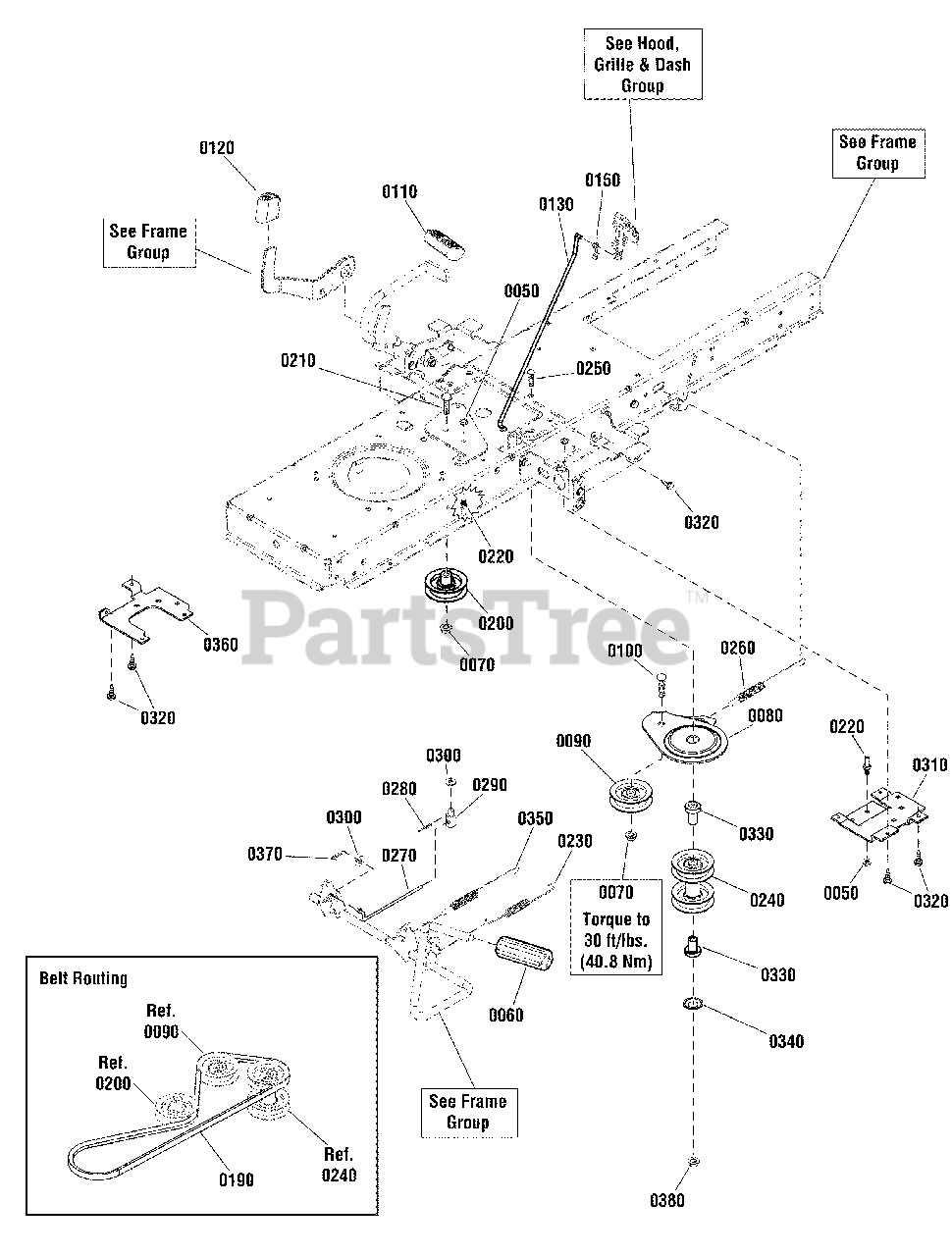

ELT 18V38RDF (1696112-00) - Snapper 38"/96cm Lawn Tractor, Rear-Discharge, 18hp Controls Group Parts Diagram

38"/96cm Lawn Tractor, Rear-Discharge, 18hp

Controls Group Parts Diagram

  • Title

0050

Snapper 1931277

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0060

Snapper 1727261

PEDAL, Brake Rubber
(Superseded to 1727261SM)

$9.99

$

Usually ships in 2-12 days

0

0070

Snapper 1960687

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0080

Snapper 885410A

BRACKET, Idler Front Movable
(Superseded to 885410AYP)

$20.99

$

Usually ships in 2-12 days

0

0090

Snapper 885645

PULLEY, 3 OD Plastic
(Superseded to 1760012YP)

$33.99

$

Usually ships in 2-12 days

0

0100

Snapper 1931352

BOLT, Carriage, 3/8-16 x 1-1/2
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 8

0

0110

Snapper 1721675

PAD, Foot Pedal Forward
(Superseded to 1721675SM)

$8.99

$

Usually ships in 2-12 days

0

0120

Snapper 1727259

PAD, Foot Pedal Reverse
(Superseded to 1727259SM)

$8.49

$

Usually ships in 2-12 days

0

0130

Snapper 1727267

ROD, Parking Brake, 16-3/8"
(Superseded to 1727267SM)

$15.99

$

Usually ships in 2-12 days

0

0150

Snapper 1728111

CLIP, Linkage, Black
(Superseded to 1728111SM)

$6.99

$

In Stock, only 1 left!

0

0190

Snapper 885484

BELT, Primary, M/D
(Superseded to 885484YP)

$32.99

$

Usually ships in 2-12 days

0

0200

Snapper 885565

IDLER, Backside
(Superseded to 885565YP)

$66.99

$

Usually ships in 2-12 days

0

0210

Snapper 1921971

CAPSCREW, Hex Head, 3/8-16 x 1-3/4, G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0220

Snapper 885534

BELT GUIDE
(Superseded to 885534YP)

$9.49

$

Usually ships in 2-12 days

0

0230

Snapper 885421

SPRING, Extension
(Superseded to 885421YP)

$14.99

$

Usually ships in 2-12 days

0

0240

Snapper 885426

PULLEY, Secondary Stack
(Superseded to 885426YP)

$92.99

$

Usually ships in 2-12 days

0

0250

Snapper 885577

BOLT, Carriage, 3/8-16 x 5
(Superseded to 885577YP)

$5.99

$

Usually ships in 2-12 days

0

0260

Snapper 1729620

SPRING, Extension 7-1/2"
(Superseded to 1729620SM)

$8.49

$

Usually ships in 2-12 days

0

0270

Snapper 885683

ROD, Clutch
(Superseded to 885683YP)

$16.99

$

Usually ships in 2-12 days

0

0280

Snapper 7091809

PIN, Cotter
(Superseded to 7091809YP)

$4.49

$

In Stock, only 2 left!

0

0290

Snapper 727774

NUT, Adjusting
(Superseded to 021920ZMA)

$17.99

$

Usually ships in 2-12 days

0

0300

Snapper 1960103

WASHER, 3/8
(Superseded to 1960103SM)

$4.49

$

In Stock, only 2 left!

0

0310

Snapper 885684BM

BRACKET, Stack Pulley, Left
(Superseded to 885684BMYP)

$56.99

$

Usually ships in 2-12 days

0

0320

Snapper 1664847

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0330

Snapper 885575

SPACER
(Superseded to 885575YP)

$6.99

$

Usually ships in 2-12 days

0

0340

Snapper 1931942

NUT, Push Pal, 3/8
(Superseded to 703986)

$4.49

$

In Stock, Qty 10

0

0350

Snapper 1721995

SPRING, Extension
(Superseded to 1721995SM)

$8.49

$

In Stock, only 1 left!

0

0360

Snapper 885685BM

BRACKET, Stack Pulley, Right
(Superseded to 885685BMYP)

$55.99

$

Usually ships in 2-12 days

0

0370

Snapper 1918447

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0380

Snapper 720142

NUT, Hex Flange, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+
