ELT 18V38RDF (1696112-00) - Snapper 38"/96cm Lawn Tractor, Rear-Discharge, 18hp Guard Group - 38" RD Parts Diagram

38"/96cm Lawn Tractor, Rear-Discharge, 18hp

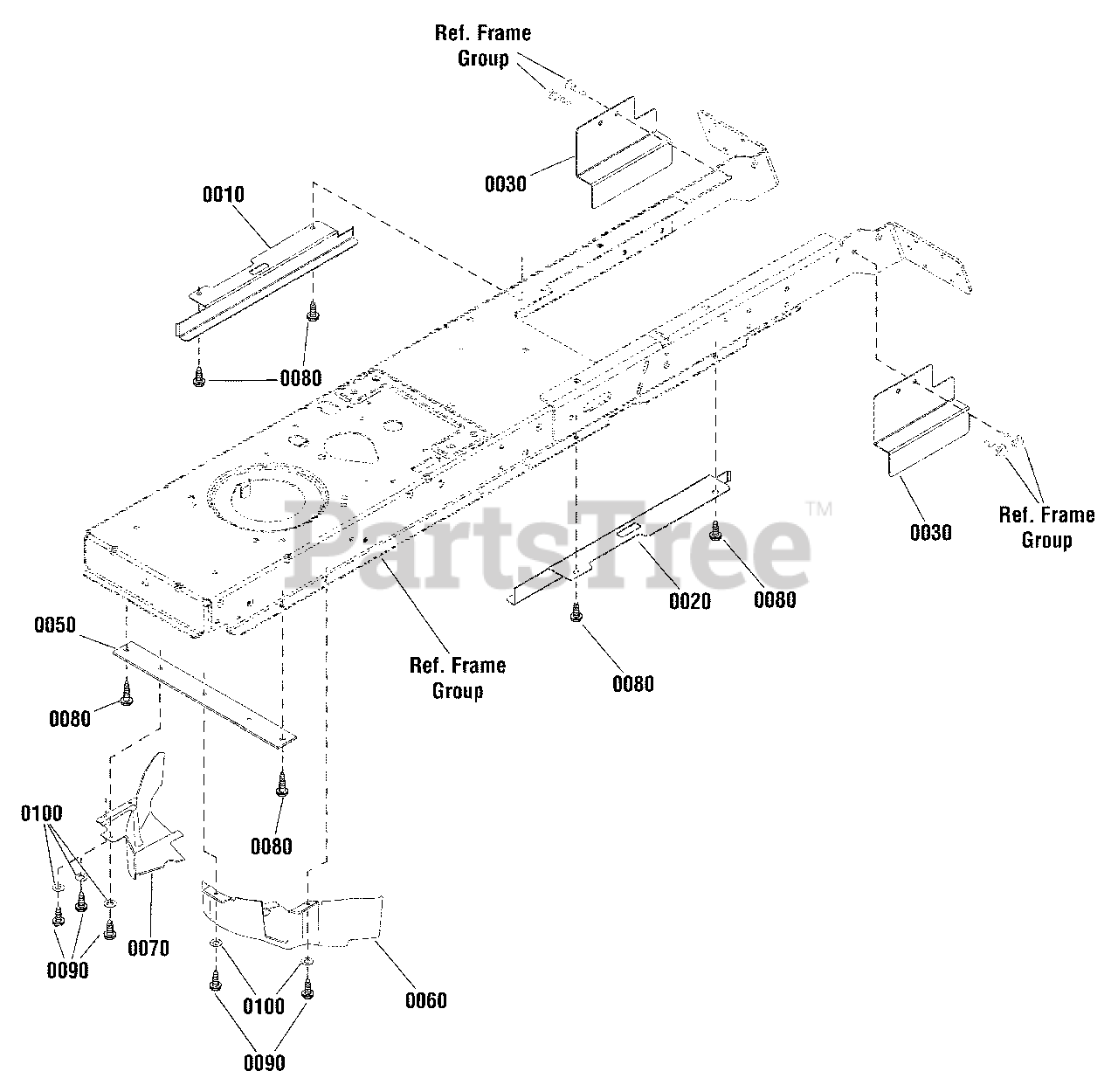

Guard Group - 38" RD Parts Diagram

  • Title

0010

Snapper 885598BM

GUARD, Middle Right
(Superseded to 885598AYP)

$25.99

$

Usually ships in 2-12 days

0

0020

Snapper 885599BM

GUARD, Middle Left
(Superseded to 885599AYP)

$25.99

$

Usually ships in 2-12 days

0

0030

Snapper 885600BM

GUARD, Rear
(Superseded to 885600AYP)

$11.99

$

Usually ships in 2-12 days

0

0050

Snapper 885602BM

BRACE, Guard
(Superseded to 885602AYP)

$47.99

$

Usually ships in 2-12 days

0

0060

Snapper 885604

GUARD, Front, LH
(Superseded to 885604YP)

$110.99

$

Usually ships in 2-12 days

0

0070

Snapper 885605

GUARD, Front, RH
(Superseded to 885605YP)

$110.99

$

Usually ships in 2-12 days

0

0080

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0100

Snapper 2821319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0
