ELT 2240RD (2690785) - Snapper 40" Lawn Tractor, 22hp Collector Group Parts Diagram

40" Lawn Tractor, 22hp

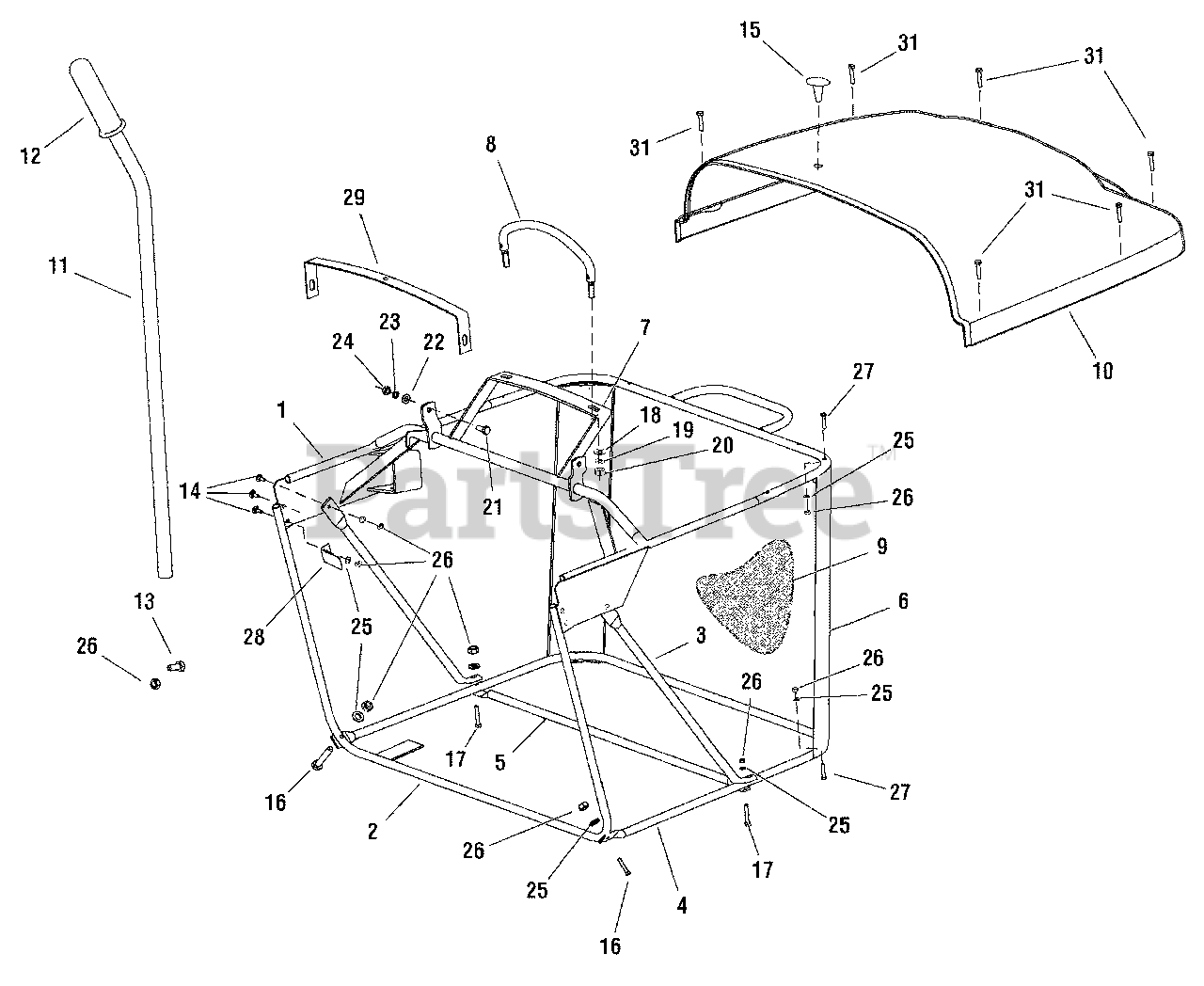

Collector Group Parts Diagram

  • Title

--

Snapper 1737791

CATCHER ASSEMBLY

Note: (Includes Ref Nos: 1 - 30)

$

$

Currently unavailable

1

Snapper 1735897

FRAME, Top

$

$

Not available

2

Snapper 1736463

TUBE, Front

$

$

Not available

3

Snapper 1735877

BRACE

$

$

Not available

4

Snapper 1735984

TUBE, Bottom

$

$

Not available

5

Snapper 1735953

TUBE, Connecting

$

$

Not available

6

Snapper 1736236

REINFORCEMENT, Left

$

$

Not available

7

Snapper 1735954

REINFORCEMENT, Right

$

$

Not available

8

Snapper 1735900

HANDLE, Full

$

$

Currently unavailable

9

Snapper 1735885

COAT, Fabric

$

$

Not available

10

Snapper 1735982D

TOP, Collector 0-7447-260

$

$

Currently unavailable

11

Snapper 1735916

LEVER, Dumping

$

$

Not available

12

Snapper 1735901

HANDLE, Rubber RC/M 25

$

$

Not available

13

Snapper 1735859

BOLT, M5 x 12

$

$

Not available

14

Snapper 1735860

BOLT, M5 x 16

$

$

Not available

15

Snapper 1735948

PLUG, Plastic

$

$

Not available

16

Snapper 1735863

BOLT, M5 x 30

$

$

Not available

17

Snapper 1735864

BOLT, M5 x 35

$

$

Not available

18

Snapper 1735990

WASHER, 10.5

$

$

Not available

19

Snapper 1735991

WASHER, Lock 10

$

$

Not available

20

Snapper 1735925

NUT, M10

Note: (Use with Washers Ref. 18 & 19)

$

$

Not available

20

Snapper 1751830

NUT, Flange Lock, M10

Note: (Washers Ref. 18 & 19 not required)

$

$

Not available

21

Snapper 1735868

BOLT, M8 x 20

$

$

Not available

22

Snapper 1735989

WASHER, 8.4

$

$

Not available

23

Snapper 1736000

WASHER, Lock 8

$

$

Not available

24

Snapper 1735934

NUT, M8

Note: (Use with Washers Ref. 22 & 23)

$

$

Not available

24

Snapper 1735934

NUT, Flange Lock, M8

Note: (Washers Ref. 22 & 23 not required)

$

$

Not available

25

Snapper 1735997

WASHER, 5.3

$

$

Not available

26

Snapper 1735931

NUT, M5

Note: (Use with Washer Ref. 25)

$

$

Not available

26

Snapper 1751832

NUT, DIN 6926, M5

Note: (Washer Ref. 25 not required)

$

$

Not available

27

Snapper 1735862

BOLT, M5 x 25

$

$

Not available

28

Snapper 1735971

SPRING, Flat

$

$

Currently unavailable

29

Snapper 1735955

REINFORCEMENT, Top

$

$

Not available

31

Snapper 1736416

SCREW, 6.3 x 32 DIN 7504-K

$

$

Not available
