EM650 A (EA3) - Honda Generator, Made in Japan (SN: EA3-1000001 - EA3-9999999) EM650 ROTOR + STATOR Parts Diagram

Generator, Made in Japan

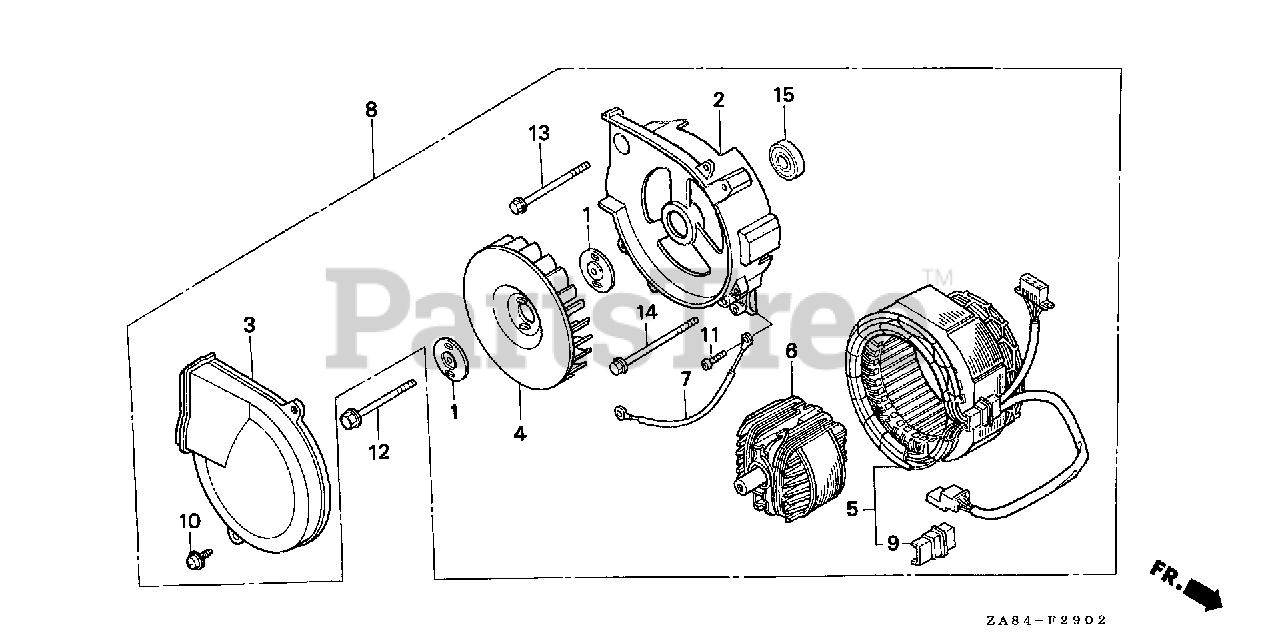

EM650 ROTOR + STATOR Parts Diagram

  • Title

1

Honda 19512-ZA8-000

PLATE, FAN SETTING

$7.49

$

Usually ships in 3-6 days

0

2

Honda 04102-ZA8-800

SEE PART DETAILS - PRI; ROTOR SET

Note: Use up to Frame SN 1031780.

$

$

Not available

2

Honda 31108-ZA8-801

SEE PART DETAILS - SUP; HOUSING, RR.
(Superseded to 04102-ZA8-800)

Note: Use up to Frame SN 1031780.

$

$

Not available

2

Honda 31108-ZA8-802

HOUSING, RR.

Note: Use from Frame SN 1031781.

$

$

Not available

3

Honda 31109-ZA8-801

COVER, GENERATOR FAN

$

$

Not available

4

Honda 31112-ZA8-801

FAN, COOLING

$23.99

$

Usually ships in 3-6 days

0

5

Honda 31120-ZA8-831

STATOR ASSY.

Note: Use up to Frame SN 1046920.

$

$

Not available

5

Honda 31120-ZA8-832

STATOR ASSY.

Note: Use from Frame SN 1046921 to 1110537.

$

$

Not available

5

Honda 31120-ZA8-833

STATOR ASSY.

Note: Use from Frame SN 1110538.

$

$

Not available

6

Honda 31130-ZA8-003

ROTOR

Note: Use up to Frame SN 1031780.

$

$

Not available

6

Honda 31130-ZA8-023

ROTOR

Note: Use from Frame SN 1031781.

$528.99

$

Usually ships in 3-6 days

0

7

Honda 31161-ZA8-801

WIRE, GROUND

$

$

Not available

8

Honda 31200-ZA8-831

GENERATOR ASSY. (EM-A)

Note: Use up to Frame SN 1046920.

$

$

Not available

8

Honda 31200-ZA8-832

GENERATOR ASSY. (EM-A)

Note: Use from Frame SN 1046921 to 1110537.

$

$

Not available

8

Honda 31200-ZA8-833

GENERATOR ASSY. (EM-SA)

Note: Use from Frame SN 1110538.

$

$

Currently unavailable

9

Honda 31481-ZA8-801

GROMMET

$12.99

$

Usually ships in 3-6 days

0

10

Honda 90031-875-003

SCREW, TAPPING (5X12)

$2.99

$

In Stock, only 4 left!

0

11

Honda 90102-899-003

SCREW, PAN (5X12)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90155-ZA8-010

SEE PART DETAILS - PRI; BOLT, FLANGE (8X92)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90157-ZA8-000

BOLT, FLANGE (6X75)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90158-ZA8-000

BOLT, FLANGE (6X95)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 91051-ZA8-003

BEARING ASSY. (6002)

Note: Use from Frame SN 1031781.

$21.99

$

Usually ships in 3-6 days

0

15

Honda 96150-60020-10

BEARING, RADIAL BALL (6002)

Note: Use up to Frame SN 1031780.

$16.99

$

In Stock, only 4 left!

0
