ENFORCER 44 (53AH3AGF050) - Cub Cadet 44" Zero-Turn Mower, 20hp Kohler Command CV20S-65610 Engine Controls Parts Diagram

44" Zero-Turn Mower, 20hp Kohler Command

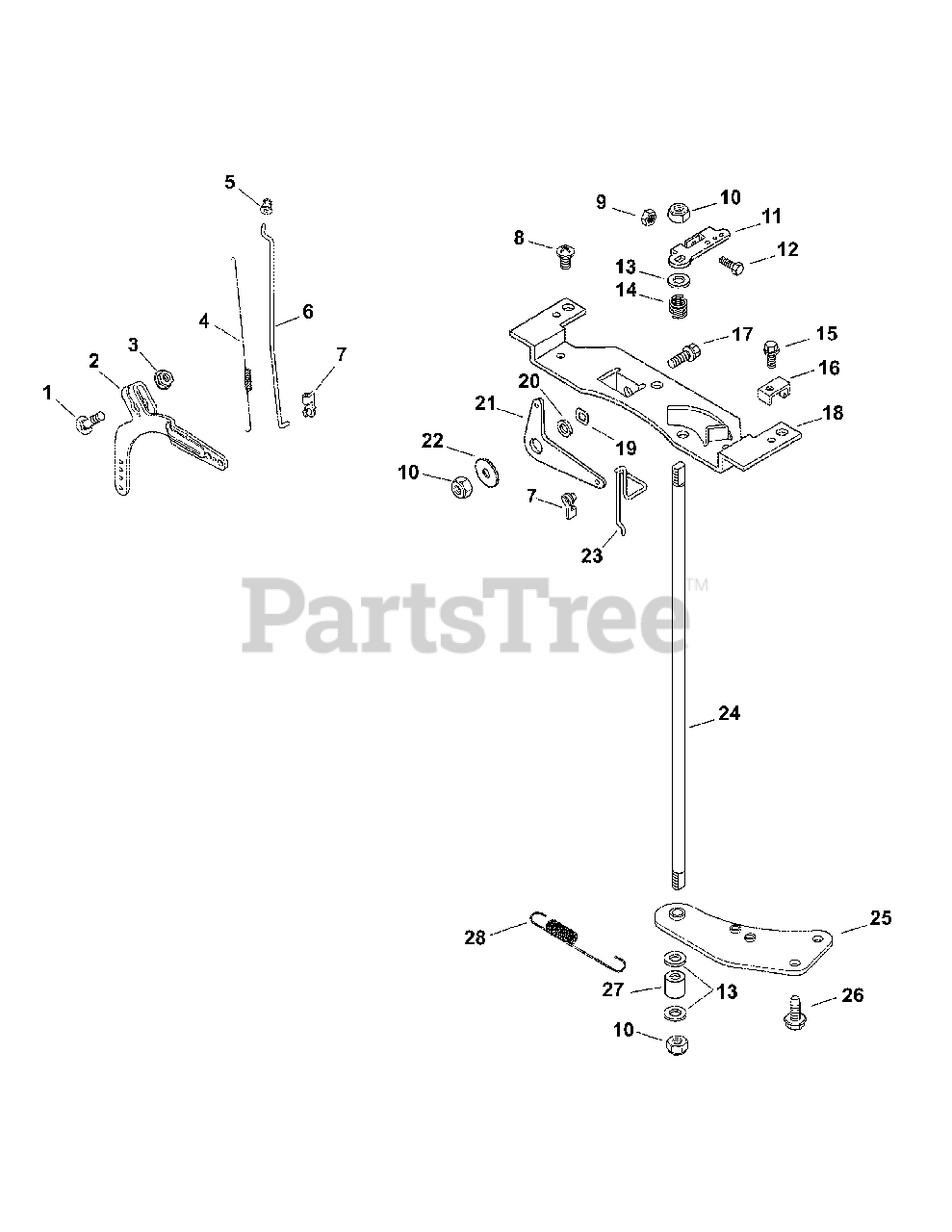

CV20S-65610 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-24-211-03-S

Bolt, Rd Hd Sq Neck M6 x 1.0 x 25

$2.49

$

In Stock, Qty 16

0

2

Cub Cadet KH-24-090-51-S

Lever, Governor
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-M-641060-S

Nut, FLG M6 x 1.0

$4.49

$

In Stock, Qty 15

0

4

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

5

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$

$

Not available

6

Cub Cadet KH-24-079-04

Linkage, Throttle

$

$

Not available

7

Cub Cadet KH-25-158-08

Bushing, Throttle Linkage

$

$

Not available

8

Cub Cadet KH-24-086-06

Screw, Phl Hd 11-16 x 3/4"

$

$

Not available

9

Cub Cadet KH-M-446030-S

Nut, M4 x 0.7

$2.49

$

In Stock, Qty 9

0

10

Cub Cadet KH-M-647060

Nut, Lock M6 x 1.0

Note: NLA

$

$

Not available

11

Cub Cadet KH-24-090-09

Lever, Throttle Control

$

$

Not available

12

Cub Cadet KH-M-401030

Screw, Cap M4 x 0.7 x 30

$

$

Not available

13

Cub Cadet KH-X-25-72

Washer, Flat 1/4"

$

$

Not available

14

Cub Cadet KH-24-089-20

Spring, Throttle Shaft

$

$

Not available

15

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

16

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-M-639016-S

Screw, Flg M6x1.0x16

$2.49

$

In Stock, only 3 left!

0

18

Cub Cadet KH-24-126-111-S

Bracket, Control
(Superseded to KH-24-126-219-S)

$37.99

$

In Stock, only 1 left!

0

19

Cub Cadet KH-277341

Washer, Spring 3/8"

$

$

Not available

20

Cub Cadet KH-25-431-01-S

Spacer

$6.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-24-090-20

Lever, Choke

Note: NLA

$

$

Not available

22

Cub Cadet 736-0173

Washer, Flat 1/4"

$3.99

$

In Stock, Qty 10

0

23

Cub Cadet KH-24-079-10

Linkage, Choke

$

$

Not available

24

Cub Cadet KH-24-144-11

Shaft, Throttle

Note: NLA

$

$

Not available

25

Cub Cadet KH-24-126-162-S

Bracket, Throttle Shaft

$8.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-M-645016-S

Screw, Flg Thd Frm M6 x 1.0 x16

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet KH-24-112-10

Spacer

$

$

Not available

28

Cub Cadet KH-24-089-46-S

Spring, Governor

$8.99

$

In Stock, only 2 left!

0
