ER400 A (GE300) - Honda Generator, Made in Japan (SN: GE300-1175814 - GE300-2147285) FRONT COVER + REAR COVER Parts Diagram

Generator, Made in Japan

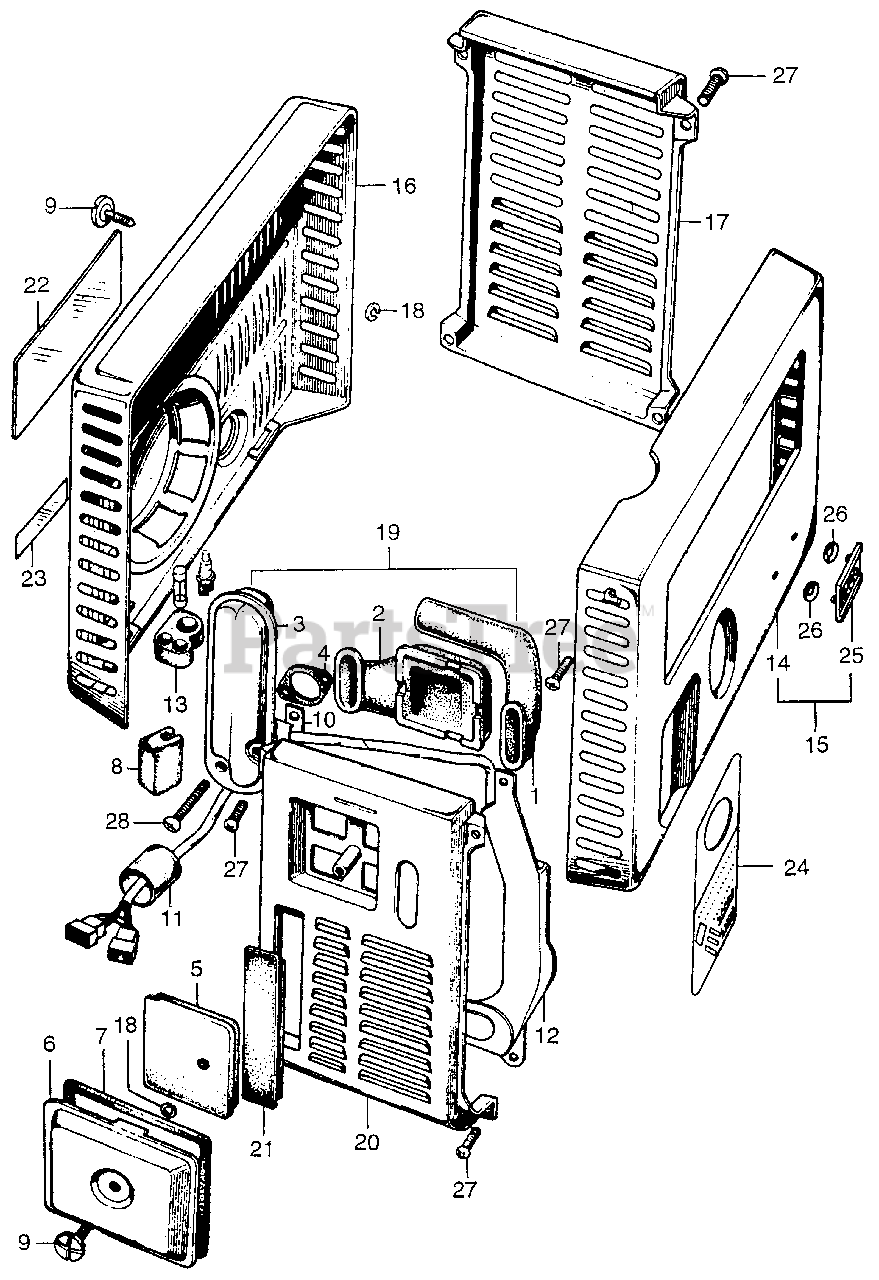

FRONT COVER + REAR COVER Parts Diagram

  • Title

1

Honda 17111-836-000

SEE PART DETAILS - SUP; TUBE, AIR CLEANER

Note: Use up to Frame SN 2000000.

$

$

Currently unavailable

1

Honda 17111-866-000

SEE PART DETAILS - PRI; TUBE, AIR CLEANER (NOT AVAILABLE)

Note: Use from Frame SN 2000001.

$

$

Currently unavailable

2

Honda 17121-836-000

TUBE, IN. MUFFLER CONNECTING

$

$

Currently unavailable

3

Honda 17131-836-000

MUFFLER, IN.

$

$

Currently unavailable

4

Honda 17132-836-000

SEE PART DETAILS - SUP; GASKET, IN. MUFFLER

$

$

Currently unavailable

5

Honda 17211-836-000

ELEMENT, AIR CLEANER

$

$

Not available

6

Honda 17231-836-010T

SEE PART DETAILS - PRI; COVER, AIR CLEANER *NH2M* (METALLIC SILVER) (NOT AVAILABLE)

$29.99

$

Usually ships in 3-6 days

0

7

Honda 17233-866-000

SEE PART DETAILS - PRI; RUBBER, AIR CLEANER SEAL (NOT AVAILABLE)

$

$

Not available

8

Honda 17234-836-700

PROTECTOR, CARBURETOR

$

$

Not available

9

Honda 17241-836-700

SCREW, COVER LATCH (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 30564-848-000

CLAMP, WIRE

$

$

Not available

11

Honda 32347-836-730

TUBE, CONNECTOR

$

$

Not available

12

Honda 32350-836-731

REGULATOR ASSY., TRANSISTOR (E R400)

$

$

Not available

13

Honda 38211-812-010

SEE PART DETAILS - PRI; HOLDER, SPARE PLUG

$

$

Currently unavailable

14

Honda 63310-836-701CQ

COVER, FR. *Y2C* (CANDY GOLD)

$

$

Not available

14

Honda 63310-836-701J

COVER, FR. *R15L* (WINE RED)

$

$

Not available

14

Honda 63310-836-701XE

COVER, FR. *G3C* (CANDY CAT'S EYE GREEN) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 63320-836-730CQ

COVER ASSY., FR. *Y2C* (CANDY GOLD)

$

$

Not available

15

Honda 63320-836-730XE

COVER ASSY., FR. *G3C* (CANDY CAT'S EYE GREEN)

$

$

Not available

16

Honda 63410-836-000CQ

COVER, RR. *Y2C* (CANDY GOLD) (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 63410-836-000J

COVER, RR. *R15L* (WINE RED)

$

$

Not available

16

Honda 63410-836-000XE

COVER, RR. *G3C* (CANDY CAT'S EYE GREEN)

$

$

Not available

17

Honda 63510-836-000N

COVER, R. SIDE *Y3L* (IVORY WHITE)

$

$

Not available

18

Honda 63588-801-000

STOPPER, LATCH (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 63600-836-710N

SEE PART DETAILS - PRI; COVER ASSY., L. SIDE *Y3L* (IVORY WHITE)

$

$

Not available

20

Honda 63610-836-010N

SEE PART DETAILS - SUP; COVER ASSY., L. SIDE *Y3L* (IVORY WHITE)

Note: Use from Frame SN 1175814.

$

$

Currently unavailable

21

Honda 63614-836-700

GROMMET, CHOKE

$

$

Currently unavailable

22

Honda 87521-836-701

PLATE, CAUTION

$

$

Not available

23

Honda 87539-836-700

PLATE, EX. CAUTION

$

$

Not available

24

Honda 87541-836-700

MARK, OIL LEVEL

$

$

Not available

25

Honda 87543-836-700

MARK, FR.

$

$

Not available

26

Honda 90313-567-000

SEE PART DETAILS - PRI; NUT, SPEED (3MM)

$6.49

$

Usually ships in 3-6 days

0

27

Honda 93500-05010-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 9

0

28

Honda 93500-05020-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X20)

$1.49

$

Usually ships in 3-6 days

0
