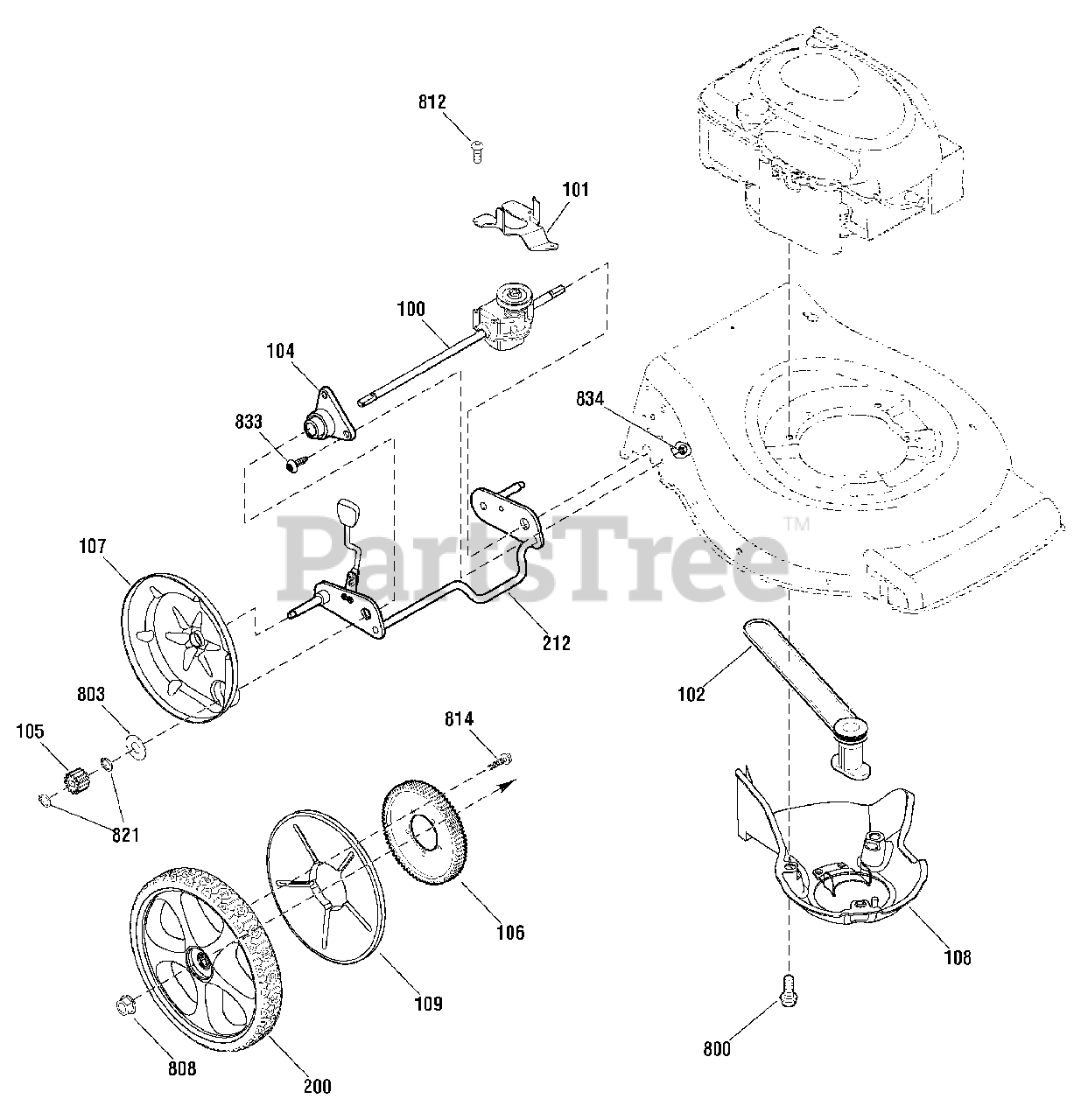

ERDS 19700HW (881037) - Snapper 19" Walk-Behind Mower Drive Group Parts Diagram

19" Walk-Behind Mower

Drive Group Parts Diagram

  • Title

100

Snapper 880604

TRANSMISSION
(Superseded to 880604YP)

$148.99

$

Usually ships in 2-12 days

0

101

Snapper 880282

BELT GUIDE, Transmission
(Superseded to 880282YP)

$12.99

$

Usually ships in 2-12 days

0

102

Snapper 880268

V-BELT
(Superseded to 880268YP)

$26.99

$

Usually ships in 2-12 days

0

104

Snapper 880787

SLEEVE ASSEMBLY, Rear Axle
(Superseded to 880787YP)

$17.99

$

Usually ships in 2-12 days

0

105

Snapper 880527

GEAR, Pinion
(Superseded to 880527YP)

$8.49

$

Usually ships in 2-12 days

0

106

Snapper 880526

GEAR, Drive
(Superseded to 880526YP)

$15.99

$

Usually ships in 2-12 days

0

107

Snapper 880528

DUST COVER
(Superseded to 880528YP)

$18.99

$

Usually ships in 2-12 days

0

108

Snapper 880796

BELT COVER ASSEMBLY
(Superseded to 880796YP)

$22.99

$

Usually ships in 2-12 days

0

109

Snapper 880539

COVER, Wheel
(Superseded to 880539YP)

$19.99

$

Usually ships in 2-12 days

0

200

Snapper 880696

WHEEL, Rear
(Superseded to 880696YP)

$43.99

$

Usually ships in 2-12 days

0

212

Snapper 880854

CROSSBAR ASSEMBLY, Rear

$

$

Currently unavailable

800

Snapper 720044

SCREW, Hex Head, 3/8-16 x 1
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

803

Snapper 880324

WASHER, Thrust
(Superseded to 880324YP)

$3.49

$

Usually ships in 2-12 days

0

808

Snapper 720142

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, only 2 left!

0

812

Snapper 880760

SCREW, #10 x 1
(Superseded to 880760YP)

$4.49

$

Usually ships in 2-12 days

0

814

Snapper 722881

SCREW, 1/4-15 x 3/4
(Superseded to 26X296MA)

$4.49

$

In Stock, only 1 left!

0

821

Snapper 880269

RING, External Retaining
(Superseded to 880269YP)

$3.99

$

Usually ships in 2-12 days

0

833

Snapper 880845

SCREW, Torx, 1/4-20 x 5/8
(Superseded to 880845YP)

$3.49

$

Usually ships in 2-12 days

0

834

Snapper 880859

NUT, Flange Lock, 1/4-20
(Superseded to 880859YP)

$3.99

$

Usually ships in 2-12 days

0
