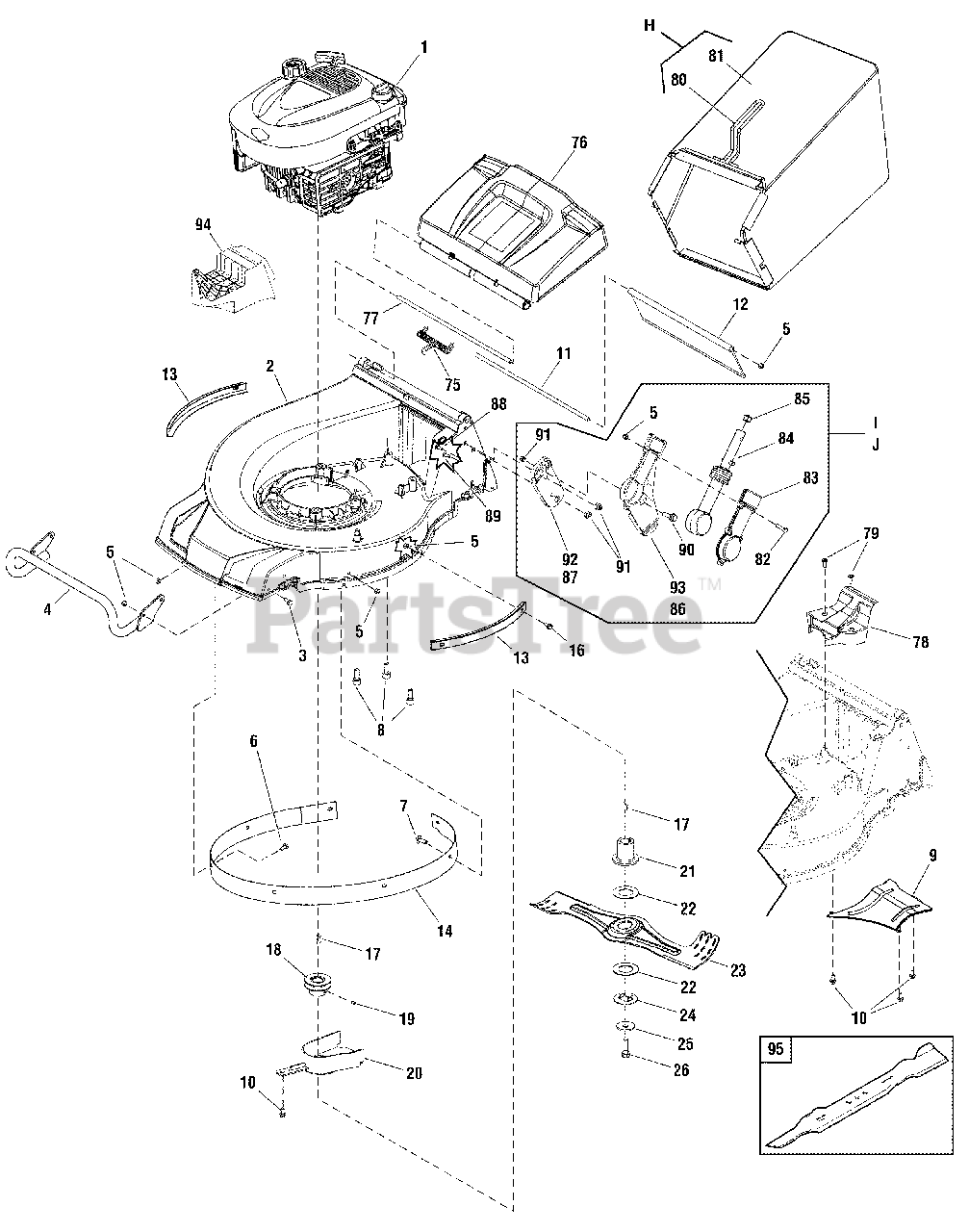

ESPV 21750AL (881223) - Snapper 21" Walk-Behind Mower, 7.5hp Deck & Engine Group Parts Diagram

21" Walk-Behind Mower, 7.5hp

Deck & Engine Group Parts Diagram

  • Title
1

Snapper 100802-0117-B8

* ENGINE, 750 Series, Briggs & Stratton

Note: (Engine Model: 100802-0117-B8)

$

$

Currently unavailable

2

Snapper 701291

DECK, 21"
(Superseded to 701291BJYP)

$826.99

$

Usually ships in 2-12 days

0

3

Snapper 701181

BOLT, Hex Flange
(Superseded to 701181YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 701328

BUMPER, 21"
(Superseded to 701328YP)

$56.99

$

Usually ships in 2-12 days

0

5

Snapper 701183

NUT, Hex, Nylon Insert, Torque Type
(Superseded to 701183YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 701184

SCREW, Truss Head, Cross Recessed
(Superseded to 701184YP)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 701185

SCREW, Truss Head, Cross Recessed
(Superseded to 701185YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 701186

SCREW, Inner Hexagon, Round Head, Tapping
(Superseded to 701186YP)

$5.49

$

In Stock, only 2 left!

0

9

Snapper 701329

DEFLECTOR, Lower
(Superseded to 701329YP)

$58.99

$

Usually ships in 2-12 days

0

10

Snapper 701187

SCREW, Hex Flange, Tapping
(Superseded to 701187YP)

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 701292

SHAFT, Rear Deflector
(Superseded to 701292YP)

$13.99

$

Usually ships in 2-12 days

0

12

Snapper 701293

DEFLECTOR, Rear
(Superseded to 701293YP)

$35.99

$

Usually ships in 2-12 days

0

13

Snapper 701294

SHIELD, Outer
(Superseded to 701294YP)

$19.99

$

Usually ships in 2-12 days

0

14

Snapper 701295

SHIELD, Inner Ring
(Superseded to 701295YP)

$59.99

$

Usually ships in 2-12 days

0

16

Snapper 701297

BOLT, Hex Flange
(Superseded to 701297YP)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 701192

KEY, Woodruff
(Superseded to 701192YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 701331

PULLEY, Engine
(Superseded to 701331YP)

$47.99

$

Usually ships in 2-12 days

0

19

Snapper 701298

SCREW, Inner Hexagon Recessed
(Superseded to 701298YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 701299

SHIELD, Lower Belt
(Superseded to 701299YP)

$14.99

$

Usually ships in 2-12 days

0

21

Snapper 701255

ADAPTOR, Blade
(Superseded to 701255YP)

$23.99

$

Usually ships in 2-12 days

0

22

Snapper 701256

DISC, Friction
(Superseded to 701256YP)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 701332

BLADE, 21"
(Superseded to 701332YP)

$33.99

$

Usually ships in 2-12 days

0

24

Snapper 701257

CLIP
(Superseded to 701257YP)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 701196

SPRING, Dishing
(Superseded to 701196YP)

$11.99

$

Usually ships in 2-12 days

0

26

Snapper 701197

BOLT, Blade
(Superseded to 701197YP)

$9.99

$

Usually ships in 2-12 days

0

75

Snapper 701310

SPRING, Torsion
(Superseded to 701310YP)

$11.99

$

Usually ships in 2-12 days

0

76

Snapper 701311

COVER, Rear
(Superseded to 701311YP)

$131.99

$

Usually ships in 2-12 days

0

77

Snapper 701312

SHAFT, Rear Cover
(Superseded to 701312YP)

$13.99

$

Usually ships in 2-12 days

0

78

Snapper 701313

SHIELD, Upper Pulley
(Superseded to 701313YP)

$37.99

$

Usually ships in 2-12 days

0

79

Snapper 701226

SCREW, Inner Hexagon Tapping
(Superseded to 701226YP)

$3.99

$

Usually ships in 2-12 days

0

H

Snapper 701314

GRASS CATCHER ASSEMBLY
(Superseded to 701314YP)

Note: (Includes Ref. Nos. 80 & 81)

$210.99

$

Usually ships in 2-12 days

0

80

FRAME, Grass Catcher

Note: (Not a serviceable part, order Ref. H)

$

$

Not available

81

BAG, Grass Catcher

Note: (Not a serviceable part, order Ref. H)

$

$

Not available

I

Snapper 701346

BRACKET ASSEMBLY, Right
(Superseded to 701346YP)

Note: (Includes Ref. Nos. 5, 82, 83, 84, 85, 86, 87, 88, 89, 90 & 91)

$227.99

$

Usually ships in 2-12 days

0

J

Snapper 701354

BRACKET ASSEMBLY, Left
(Superseded to 701354YP)

Note: (Includes Ref. Nos. 5, 82, 83, 84, 85, 88, 89, 90, 91, 92 & 93)

$227.99

$

Usually ships in 2-12 days

0

82

Snapper 701347

BOLT, Hexangular, Full Thread
(Superseded to 701347YP)

$3.49

$

Usually ships in 2-12 days

0

83

COVER, Bracket

Note: (Not a serviceable part, order Ref. I or J)

$

$

Not available

84

AVS ASSEMBLY

Note: (Not a serviceable part, order Ref. I or J)

$

$

Not available

85

PLUG, AVS

Note: (Not a serviceable part, order Ref. I or J)

$

$

Not available

86

BRACKET, Right

Note: (Not a serviceable part, order Ref. I)

$

$

Not available

87

BASE, Right Bracket

Note: (Not a serviceable part, order Ref. I)

$

$

Not available

88

Snapper 701319

BOLT, Carriage
(Superseded to 701319YP)

$3.99

$

Usually ships in 2-12 days

0

89

Snapper 701229

BOLT, Carriage
(Superseded to 701229YP)

$3.99

$

Usually ships in 2-12 days

0

90

Snapper 701353

BOLT, Hex Flange
(Superseded to 701353YP)

$3.99

$

Usually ships in 2-12 days

0

91

Snapper 701228

NUT, Hex, Nylon Insert, Torque Type
(Superseded to 701228YP)

$3.49

$

Usually ships in 2-12 days

0

92

BASE, Left Bracket

Note: (Not a serviceable part, order Ref. J)

$

$

Not available

93

BRACKET, Left

Note: (Not a serviceable part, order Ref. J)

$

$

Not available

94

Snapper 702122

PLUG, Mulch, 21"
(Superseded to 702122YP)

$162.99

$

Usually ships in 2-12 days

0

95

Snapper 702121

BLADE, Mulch, 21"
(Superseded to 702121YP)

Note: (Optional Accessory)

$31.99

$

Usually ships in 2-12 days

0
