ET 201 B (80095) - Snapper Edger, 3hp Handles & Controls Parts Diagram

Edger, 3hp

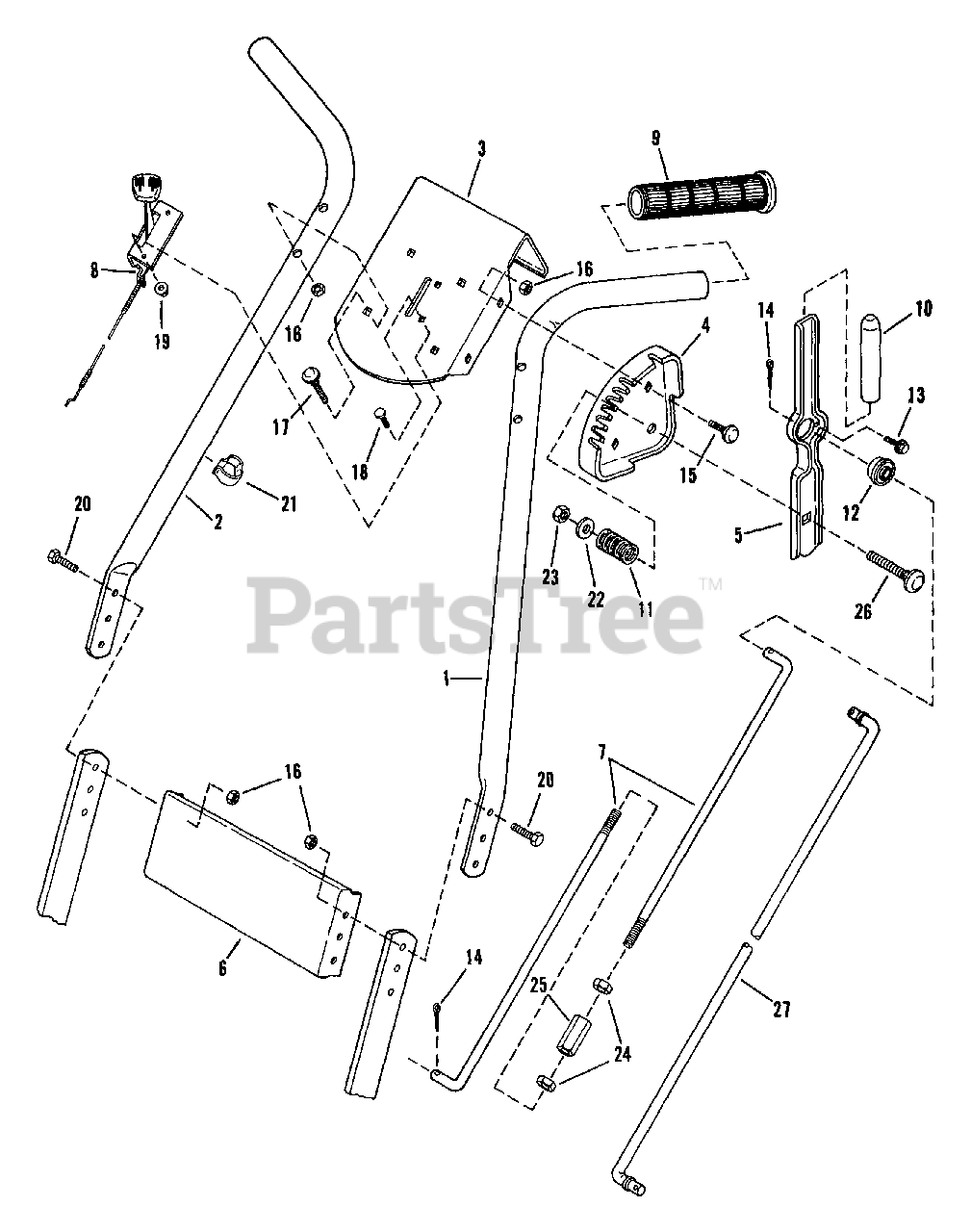

Handles & Controls Parts Diagram

  • Title
1

Snapper 7029556

HANDLE, Left
(Superseded to 7029556YP)

$34.99

$

Usually ships in 2-12 days

0

2

Snapper 7029555

HANDLE, Right
(Superseded to 7029555YP)

$38.99

$

Usually ships in 2-12 days

0

3

Snapper 7036226

PANEL, Control

$

$

Currently unavailable

4

Snapper 7038332

QUADRANT, Depth Control

$

$

Not available

5

Snapper 7038329

HANDLE, Depth Control
(Superseded to 7038329YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 7038279

PANEL, Name Plate

$

$

Currently unavailable

7

Snapper 7015890

ROD, Depth Control

Note: Used on '88 Models Only.

$

$

Currently unavailable

8

Snapper 7015871

THROTTLE, Control

$

$

Not available

9

Snapper 7012031

GRIP, Handle
(Superseded to 7012031YP)

$9.49

$

Usually ships in 2-12 days

0

10

Snapper 7010684

GRIP, Lift

$6.99

$

In Stock, Qty 8

0

11

Snapper 7015918

SPRING, Depth Lever

$

$

Not available

12

Snapper 7015868

BEARING

$

$

Not available

13

Snapper 7090822

SCREW, #10-32 x 1/4" Self-Tapping

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7091598

PIN, 1/8 x 1" Cotter
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

15

Snapper 7091573

BOLT, 1/4-20 x 5/8" Short Neck Carriage
(Superseded to 7091573YP)

Note: Was 90666

$4.49

$

In Stock, only 1 left!

0

16

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

17

Snapper 7090078

BOLT, 1/4-20 x 1-1/4" Carriage (GR.2)
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 5

0

18

Snapper 7090530

BOLT, #10-24 x 1/2" Carriage
(Superseded to 7091085YP)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7090623

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7090643

SCREW, 1/4-20 x 7/8" Hex Cap
(Superseded to 7090643YP)

$

$

Not available

21

Snapper 7023813

CLIP, Cable
(Superseded to 7023813SM)

Note: Was 14374

$3.49

$

In Stock, Qty 9

0

22

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7090499

NUT, 3/8-16 Hex Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130 (Used on '88 Models Only.)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7013889

CONNECTOR
(Superseded to 7016304YP)

Note: Used on '88 Models Only.

$7.49

$

Usually ships in 2-12 days

0

26

Snapper 7090990

BOLT, 3/8-16 x 2" Carriage
(Superseded to 7090990YP)

$5.49

$

Usually ships in 2-12 days

0

27

Snapper 7019048

ROD, Depth Control

Note: Used on '89 Models & Later.

$

$

Not available
