EU6500is A (EASJ) - Honda Generator, Made in Japan (SN: EASJ-1000001 - EASJ-9999999) PISTON@CONNECTING ROD Parts Diagram

Generator, Made in Japan

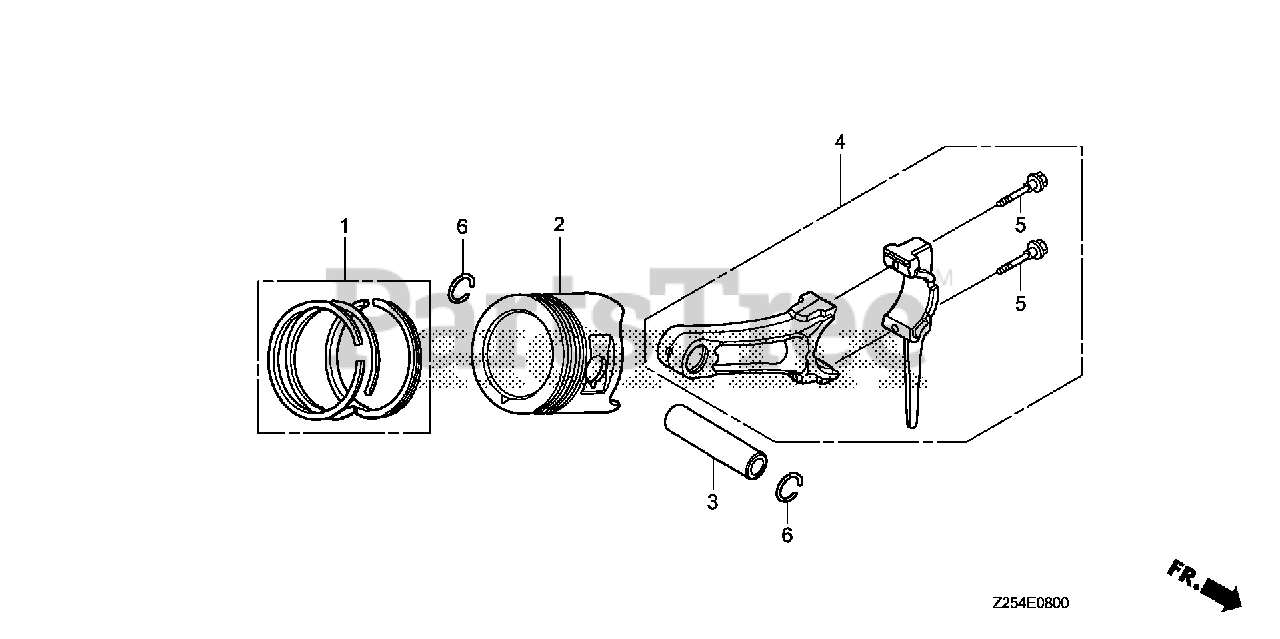

PISTON@CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 3134343).

Note: Use up to Engine SN 4278969.

$46.99

$

In Stock, Qty 5

0

1

Honda 13010-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

Note: Use from Engine SN 4278970.

$54.99

$

In Stock, only 4 left!

0

1

Honda 13011-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 3134368).

Note: (Optional).Use up to Engine SN 4278969.

$74.99

$

Usually ships in 3-6 days

0

1

Honda 13011-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional).Use from Engine SN 4278970.

$

$

Not available

1

Honda 13012-ZF6-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) (Honda Code 3134384).

Note: (Optional).Use up to Engine SN 4278969.

$

$

Not available

1

Honda 13012-ZF6-005

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 3134392).

Note: (Optional).Use up to Engine SN 4278969.

$73.99

$

Usually ships in 3-6 days

0

1

Honda 13012-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional).Use from Engine SN 4278970.

$

$

Not available

1

Honda 13013-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (NIPPON)

Note: (Optional).Use up to Engine SN 4278969.

$74.99

$

Usually ships in 3-6 days

0

1

Honda 13013-Z5R-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional).Use from Engine SN 4278970.

$

$

Not available

2

Honda 13101-ZF6-W00

PISTON (STD)

Note: Use up to Engine SN 4278969.

$70.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZF6-W01

PISTON (STD)

Note: Use from Engine SN 4278970.

$80.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZF6-W00

PISTON (OS 0.25)

Note: (Optional).Use up to Engine SN 4278969.

$124.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZF6-W01

PISTON (0.25)

Note: (Optional).Use from Engine SN 4278970.

$82.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZF6-W00

PISTON (OS 0.50)

Note: (Optional).Use up to Engine SN 4278969.

$

$

Not available

2

Honda 13103-ZF6-W01

SEE PART DETAILS - PRI; PISTON (0.50)

Note: (Optional).Use from Engine SN 4278970.

$82.99

$

In Stock, only 1 left!

0

2

Honda 13104-ZF6-W00

PISTON (OS 0.75)

Note: (Optional).Use up to Engine SN 4278969.

$124.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZF6-W01

PISTON (0.75)

Note: (Optional).Use from Engine SN 4278970.

$84.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZF6-W00

PIN, PISTON

$15.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE3-315

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (US 0.25) (Honda Code 2871218).

Note: (Optional).

$138.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1C-900

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$31.99

$

In Stock, only 1 left!

0

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$4.49

$

In Stock, only 1 left!

0

6

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM) (Honda Code 2108579).

$2.49

$

In Stock, Qty 5

0
