EV3550x4NA - Murray Edger (2006) Edger Blade Assembly Parts Diagram

Edger

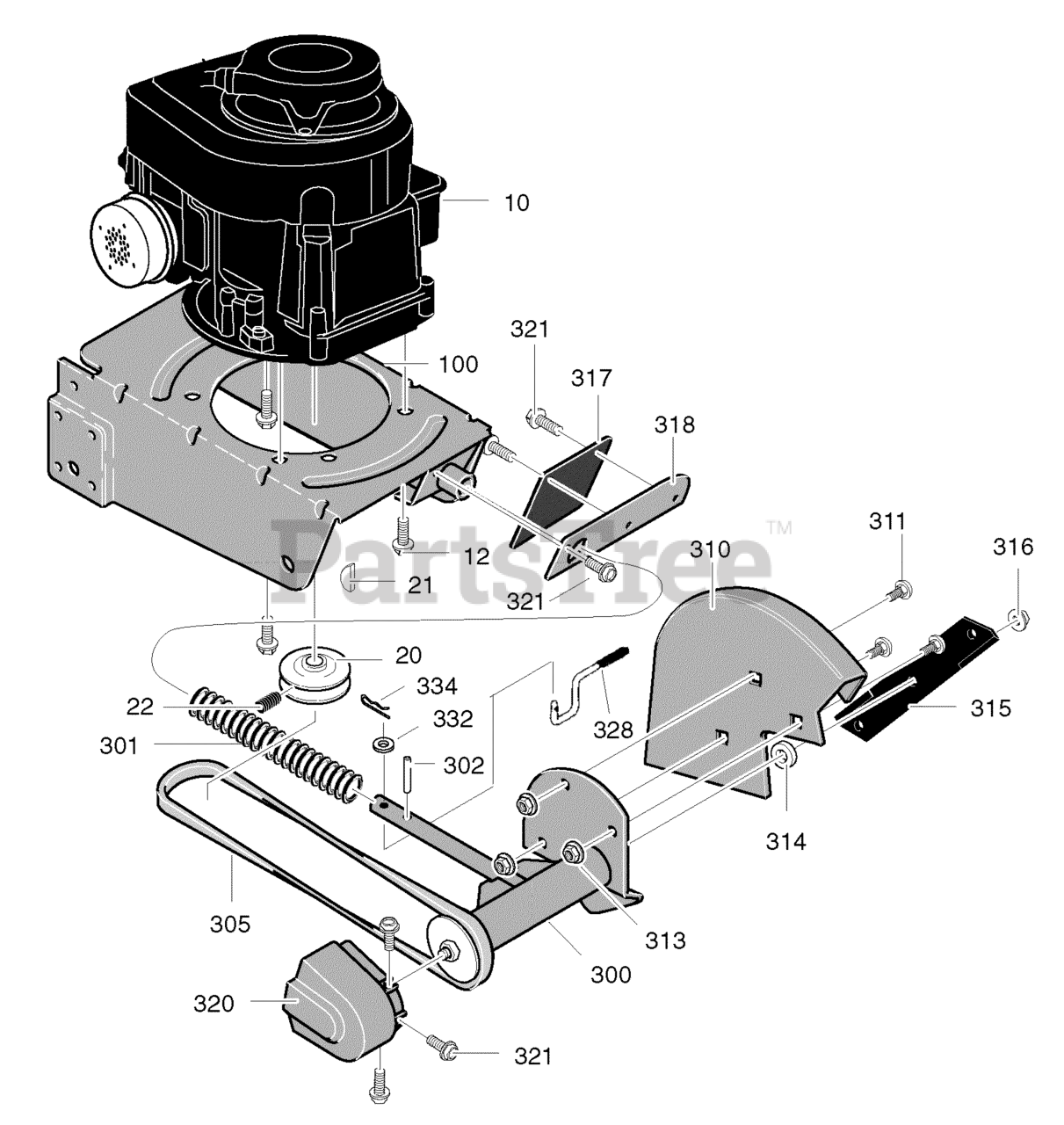

Edger Blade Assembly Parts Diagram

  • Title

10

Engine

$

$

Not available

12

Murray 0025X6MA

Screw

$5.49

$

Usually ships in 2-12 days

0

20

Murray 52052MA

Pulley, V3L

$32.99

$

Usually ships in 2-12 days

0

21

Murray 338490MA

Key, Hi Pro #505

$4.99

$

Usually ships in 2-12 days

0

22

Murray 120580MA

Screw, Set

$3.99

$

Usually ships in 2-12 days

0

100

Murray 740124E701MA

Frame, Edger

$104.99

$

Usually ships in 2-12 days

0

300

Murray 740096E701MA

Quill Assembly

$

$

Not available

301

Murray 51603MA

Spring

$5.49

$

Usually ships in 2-12 days

0

302

Murray 032X72MA

Spring Pin

$3.99

$

Usually ships in 2-12 days

0

305

Murray 32668MA

Belt, V4L

$19.99

$

In Stock, Qty 6

0

310

Murray 331076E701MA

Blade Guard

$75.99

$

Usually ships in 2-12 days

0

311

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

313

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

314

Murray 22265MA

Flat washer

$4.99

$

Usually ships in 2-12 days

0

315

Murray 740297MA

Blade, Edger

$

$

Not available

316

Murray 46023MA

NUT, 1/2-20

$5.99

$

Usually ships in 2-12 days

0

317

Murray 338582MA

Deflector, Rubber

$9.99

$

Usually ships in 2-12 days

0

318

Murray 337792E701MA

Plate, Rubber Flap

$7.99

$

Usually ships in 2-12 days

0

320

Murray 336631MA

Belt Guard

$

$

Not available

328

Murray 740086MA

Lever, Blade

$35.99

$

Usually ships in 2-12 days

0

321

Murray 26X245MA

Screw, 10-16x.50

$4.49

$

In Stock, Qty 6

0

332

Murray 783641MA

Washer

$4.99

$

Usually ships in 2-12 days

0

334

Murray 36368MA

Pin, Hair

$3.99

$

Usually ships in 2-12 days

0

-

Murray 333874MA

Decal, Caution Rotating Blade

$10.99

$

Usually ships in 2-12 days

0

-

Murray 276342

Instruction Manual

$

$

Currently unavailable
