EV3850x4A - Murray Edger (2002) Engine & Blade Assembly Parts Diagram

Edger

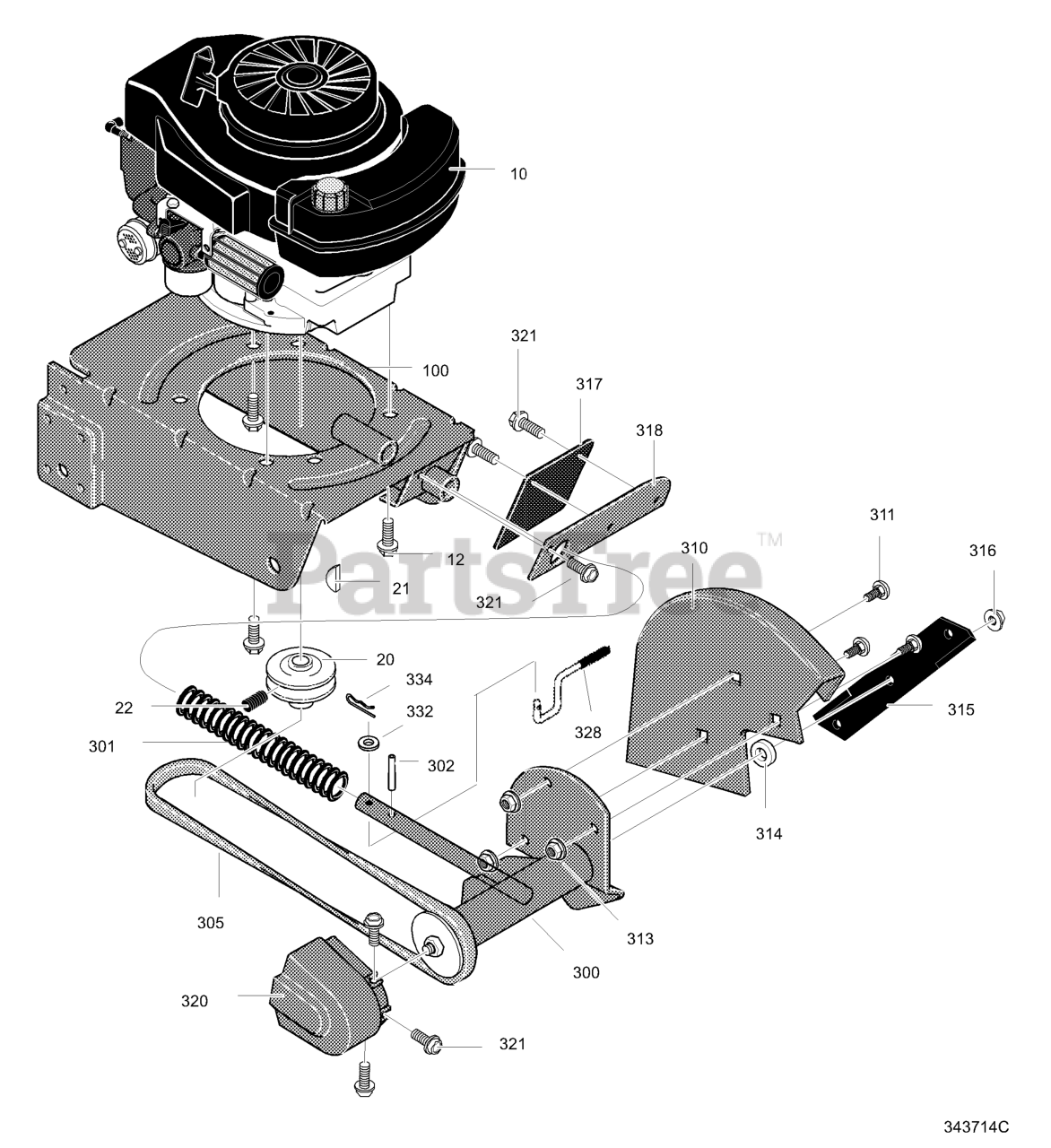

Engine & Blade Assembly Parts Diagram

  • Title

10

Engine

$

$

Not available

12

Murray 47792MA

Screw

$3.99

$

Usually ships in 2-12 days

0

20

Murray 52052MA

Pulley, V3L

$32.99

$

Usually ships in 2-12 days

0

21

Murray 338490MA

Key, Hi Pro #505

$4.99

$

Usually ships in 2-12 days

0

22

Murray 102580

Screw, Set

$1.99

$

Usually ships in 2-12 days

0

100

Murray 740124-860

Frame, Edger

$

$

Currently unavailable

300

Murray 740096

Quill Assembly

$

$

Not available

301

Murray 51603MA

Spring

$5.49

$

Usually ships in 2-12 days

0

302

Murray 412281

Spring Pin

$3.99

$

Usually ships in 2-12 days

0

305

Murray 32668MA

Belt, V4L

$19.99

$

In Stock, Qty 6

0

310

Murray 331076-860

Blade Guard

$

$

Currently unavailable

311

Murray 57072

Bolt, Carriage

$

$

Not available

313

Murray 015X88MA

Nut, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

314

Murray 22265MA

Flat washer

$4.99

$

Usually ships in 2-12 days

0

315

Murray 740297MA

Blade, Edger

$

$

Not available

316

Murray 46023MA

Nut, 1/2-20

$5.99

$

Usually ships in 2-12 days

0

317

Murray 338582

Deflector, Rubber

$9.99

$

Usually ships in 2-12 days

0

318

Murray 337792-860

Plate, Rubber Flap

$

$

Currently unavailable

320

Murray 740098MA

Belt Guard

$21.99

$

Usually ships in 2-12 days

0

328

Murray 740086

Lever, Blade

$35.99

$

Usually ships in 2-12 days

0

321

Murray 710271

Screw, 10-16x.50

$

$

Currently unavailable

332

Murray 783641

Washer

$4.99

$

Usually ships in 2-12 days

0

334

Murray 36368MA

Pin, Hair

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-011100M

Instruction Manual

$

$

Currently unavailable
