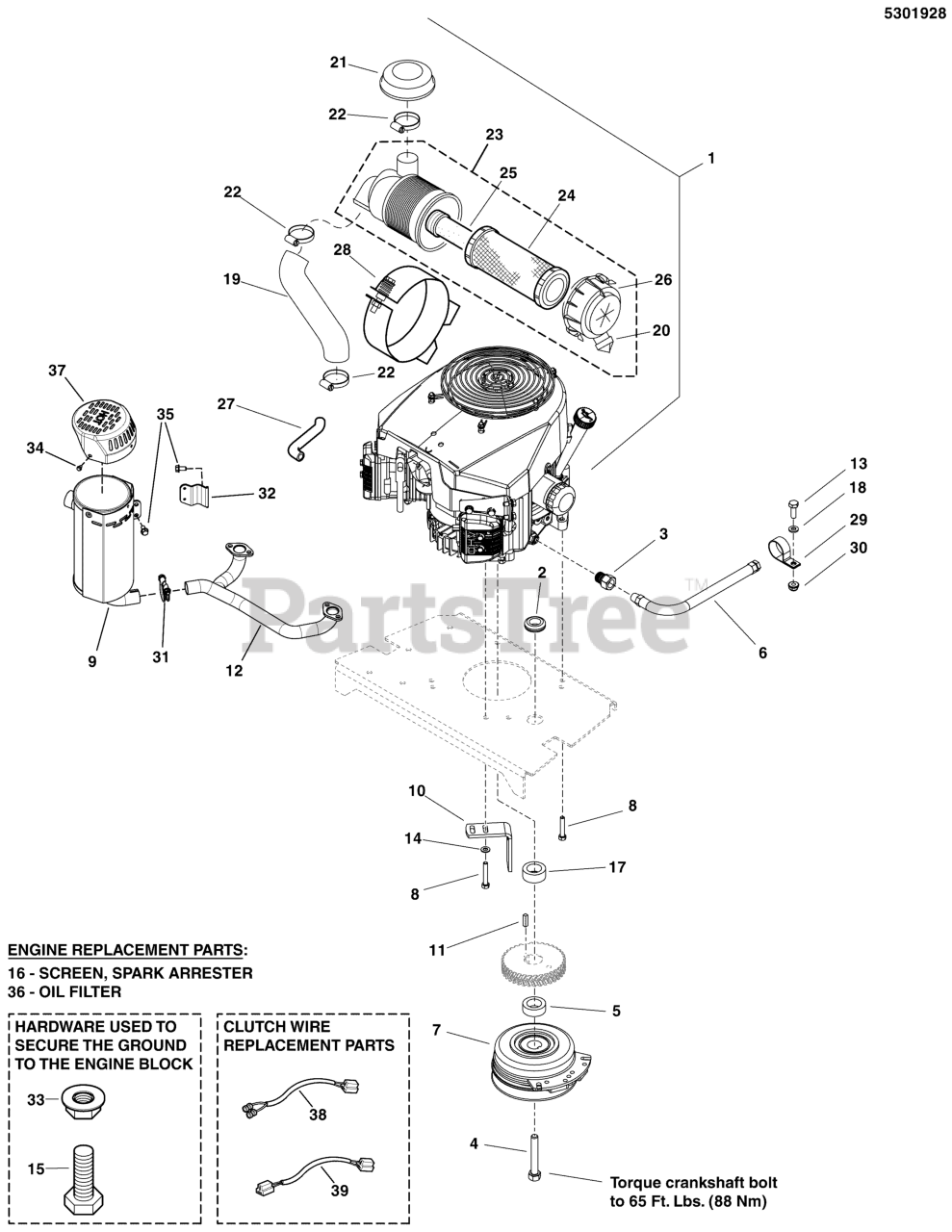

Evolution (5900834) - Ferris Evolution Series 48" Stand-On Mower, 20hp Kawasaki Engine & PTO Group - Kawasaki FX600V Parts Diagram

Evolution Series 48" Stand-On Mower, 20hp Kawasaki

Engine & PTO Group - Kawasaki FX600V Parts Diagram

  • Title

1

ENGINE, 20HP, KAWASAKI

$

$

Not available

2

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

3

Ferris 5022234

ADAPTER-OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Ferris 5045289

BOLT, CRANKSHAFT, 7/16 X 2-1/2
(Superseded to 5102864)

$5.49

$

Usually ships in 2-12 days

0

5

Ferris 5048135

SPACER, 1.13 X 1.75 X .62
(Superseded to 5048135FS)

$17.99

$

Usually ships in 2-12 days

0

6

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

7

Ferris 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

Usually ships in 2-12 days

0

8

Ferris 5025532

BOLT,HEX FLG, SER GD5 3/8-16X1-1/4,PATCH
(Superseded to 84003591)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5102259

MUFFLER

$330.99

$

Usually ships in 2-12 days

0

10

Ferris 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

11

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5102260

MANIFOLD, EXHAUST

$125.99

$

Usually ships in 2-12 days

0

13

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025249

BOLT, M8-1.25 X 20MM GD8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

16

Ferris 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

$84.99

$

Usually ships in 2-12 days

0

17

Ferris 5101289

SPACER, 1.13 X 1.75 X .75

$20.99

$

Usually ships in 2-12 days

0

18

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5023149

AIR INLET TUBE

$

$

Not available

20

Ferris 5023144

RUBBER DUST CAP

$

$

Not available

21

Ferris 5023143

RAIN COVER

$

$

Not available

22

Ferris 5023146

CLAMP

$11.99

$

Usually ships in 2-12 days

0

23

Ferris 5023139

AIR FILTER ASSEMBLY
(Superseded to 5023139SM)

$272.99

$

Usually ships in 2-12 days

0

24

Ferris 5023141

AIR FILTER, ELEMENT, PRIMARY
(Superseded to 5023141SM)

$

$

Not available

25

Ferris 5023140

AIR FILTER, ELEMENT, SECONDARY
(Superseded to 5023140SM)

$

$

Not available

26

Ferris 5023138

CAP END, FILTER CASE

$

$

Not available

27

Ferris 5023148

BREATHER TUBE

$

$

Not available

28

Ferris 5023145

BRACKET, COMPLETE

$

$

Not available

29

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

30

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

31

Ferris 5102262

BAND, CLAMP

$19.99

$

Usually ships in 2-12 days

0

32

Ferris 5102261

BRACKET

$17.99

$

Usually ships in 2-12 days

0

33

Ferris 5025355

NUT, M8-1.25 SERR. FLANGE, CZ
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

34

Ferris 5100566X3

BOLT

$2.99

$

Usually ships in 2-12 days

0

35

Ferris 5102263

BOLT, FLANGED

$

$

Currently unavailable

36

Ferris 5021334X1

OIL FILTER
(Superseded to 5213341SM)

$

$

Not available

37

Ferris 5102264

COVER-MUFFLER

$31.99

$

Usually ships in 2-12 days

0

38

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

Note: (SV - S/N: 2015375706 & Above)

$66.99

$

Usually ships in 2-12 days

0

39

Ferris 5403576

JUMPER HARNESS, WARNER CLUTCH
(Superseded to 5403576YP)

Note: (SV - S/N: 2015375705 & Below)

$65.99

$

Usually ships in 2-12 days

0
