Evolution (5900930) - Ferris Evolution Series 52" Stand-On Mower, 22hp Kawasaki Engine & PTO Group - Kawasaki FX651V & FX730V Parts Diagram

Evolution Series 52" Stand-On Mower, 22hp Kawasaki

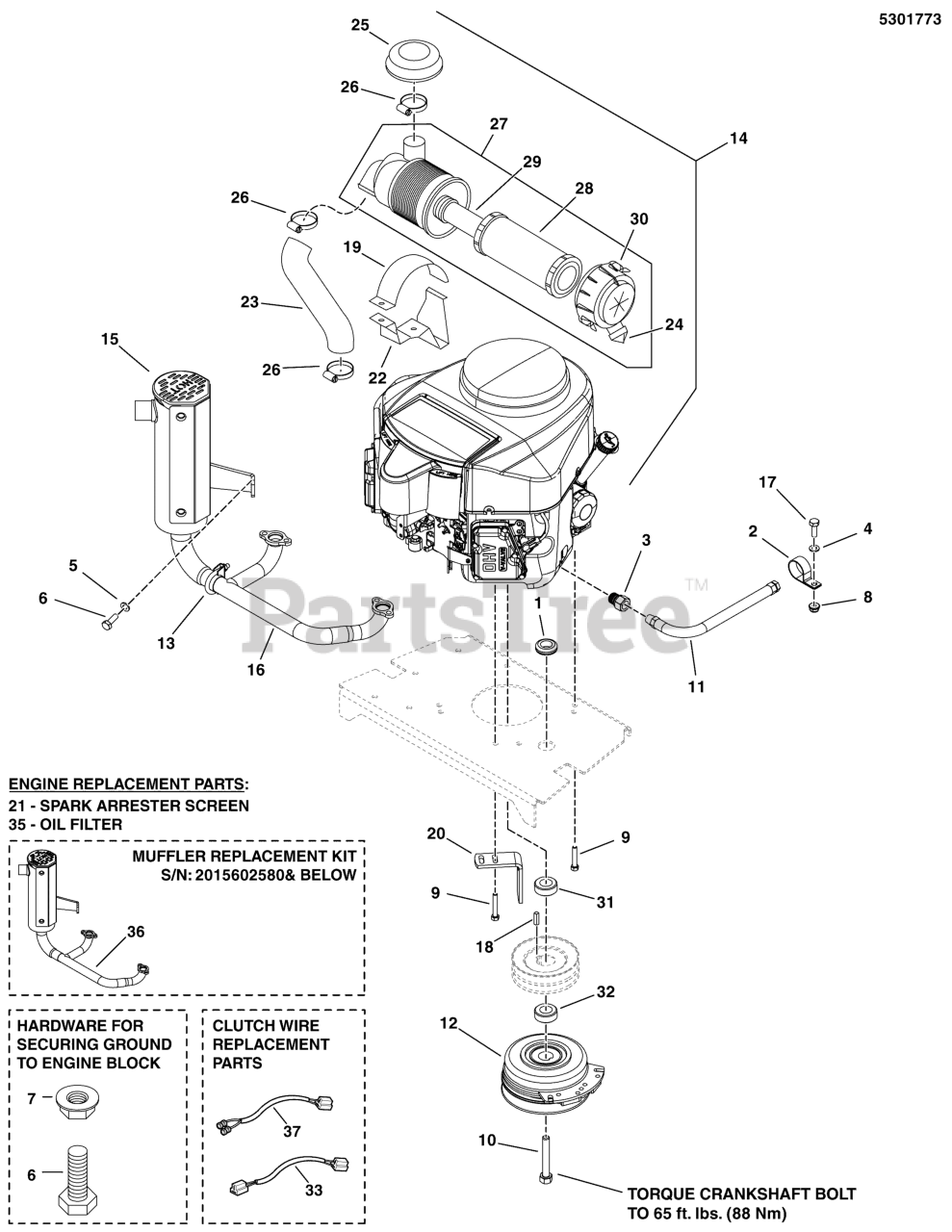

Engine & PTO Group - Kawasaki FX651V & FX730V Parts Diagram

  • Title

1

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

2

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

3

Ferris 5022234

ADAPTER-OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025249

BOLT, M8-1.25 X 20MM GD8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

7

Ferris 5025355

NUT, M8-1.25 SERR. FLANGE, CZ
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025532

BOLT,HEX FLG, SER GD5 3/8-16X1-1/4,PATCH
(Superseded to 84003591)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5102864

BOLT, CRANKSHAFT, 7/16X2-1/2
(Superseded to 5102864YP)

$5.49

$

Usually ships in 2-12 days

0

11

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

12

Ferris 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

13

Ferris 5022810

CLAMP, EXHAUST EXTENSION
(Superseded to 5022810FS)

$7.49

$

Usually ships in 2-12 days

0

14

ENGINE, KAWASAKI

$

$

Not available

15

Ferris 5102389

MUFFLER
(Superseded to 5102389FS)

Note: (S/N: 2015602581 & Above)

$385.99

$

Usually ships in 2-12 days

0

16

Ferris 5102390

MANIFOLD
(Superseded to 5102390FS)

Note: (S/N: 2015602581 & Above)

$168.99

$

Usually ships in 2-12 days

0

17

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

18

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5101545

BRACKET PLATE, UPPER

$17.99

$

Usually ships in 2-12 days

0

20

Ferris 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

21

Ferris 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

$84.99

$

Usually ships in 2-12 days

0

22

Ferris 5101546

BRACKET PLATE, LOWER

$29.99

$

Usually ships in 2-12 days

0

23

Ferris 5101548

AIR INLET TUBE

$88.99

$

Usually ships in 2-12 days

0

24

Ferris 5023144

RUBBER DUST CAP

$

$

Not available

25

Ferris 5101538

RAIN COVER

$

$

Currently unavailable

26

Ferris 5101539

CLAMP

$8.99

$

Usually ships in 2-12 days

0

27

Ferris 5101540

AIR FILTER ASSEMBLY

$

$

Currently unavailable

28

Ferris 5101543

AIR FILTER, ELEMENT, PRIMARY

$

$

Currently unavailable

29

Ferris 5101542

AIR FILTER, ELEMENT, SECONDARY

$

$

Currently unavailable

30

Ferris 5101544

CAP END, FILTER CASE

$

$

Currently unavailable

31

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

32

Ferris 5044062

SPACER, 1.13 X 1.75 X .50
(Superseded to 5044062SM)

$19.99

$

In Stock, only 1 left!

0

33

Ferris 5403576

WIRE HARNESS, JUMPER, WARNER CLUTCH
(Superseded to 5403576YP)

Note: (SV - S/N: 2015375705 & Below)

$65.99

$

Usually ships in 2-12 days

0

34

Ferris 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0

35

Ferris 5102278X1

FILTER, OIL, KAWASAKI

$

$

Not available

36

Ferris 5600597

KIT, MUFFLER & MANIFOLD

Note: (S/N: 2015602580 & Below)

$628.99

$

Usually ships in 2-12 days

0

37

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

Note: (SV - S/N: 2015375706 & Above)

$66.99

$

Usually ships in 2-12 days

0
