EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki Fuel Tank Mount Group Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

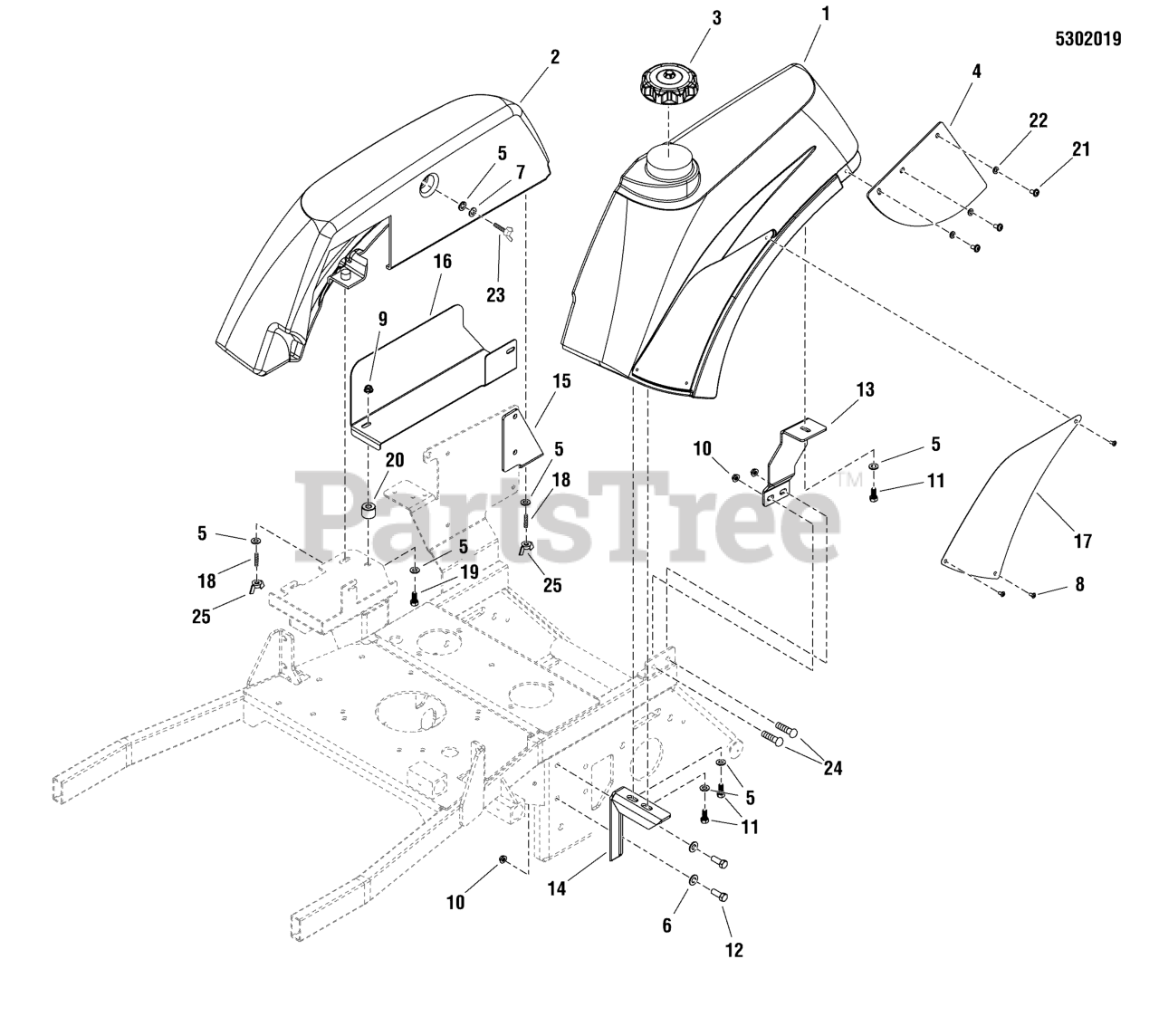

Fuel Tank Mount Group Parts Diagram

  • Title

1

Snapper Pro 5101808

TANK, FUEL, LH, EVOLUTION

$290.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5101809

TANK, FENDER, RH, EVOLUTION

$165.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

$30.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5101766

FLAP, RUBBER, SPLASH GUARD

$36.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

11

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

12

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

13

Snapper Pro 5404759D

PLATE, REAR TANK MOUNT - RED

$

$

Currently unavailable

14

Snapper Pro 5404760D

PLATE, FRONT TANK MOUNT - RED

$

$

Currently unavailable

15

Snapper Pro 5404764D

PLATE, RIGHT REAR TANK MOUNT - RED

$

$

Currently unavailable

16

Snapper Pro 5404913D

GUARD, OIL FILTER - RESERVOIR, EVO - RED

$

$

Currently unavailable

17

Snapper Pro 5404641D

PLATE, BADGE EVOLUTION, LH - RED

$

$

Currently unavailable

18

Snapper Pro 5025530

SOC SET SCREW, 5/16-18 X 1-1/2 SS

$2.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5046446

SPACER, .39 X 1.00 X .80
(Superseded to 5046446SM)

$7.49

$

In Stock, only 1 left!

0

21

Snapper Pro 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, only 3 left!

0

22

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025525X10

WING, SCREW, 5/16-18 X 1-1/4, CZ

$5.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025501

SCREW, BUTTON HD. SOC CAP, 3/8-16X1. BZ

$2.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025277

NUT, 5/16-18 WING NYLON LOCK

$3.99

$

Usually ships in 2-12 days

0
