EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki Main Frame Group Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

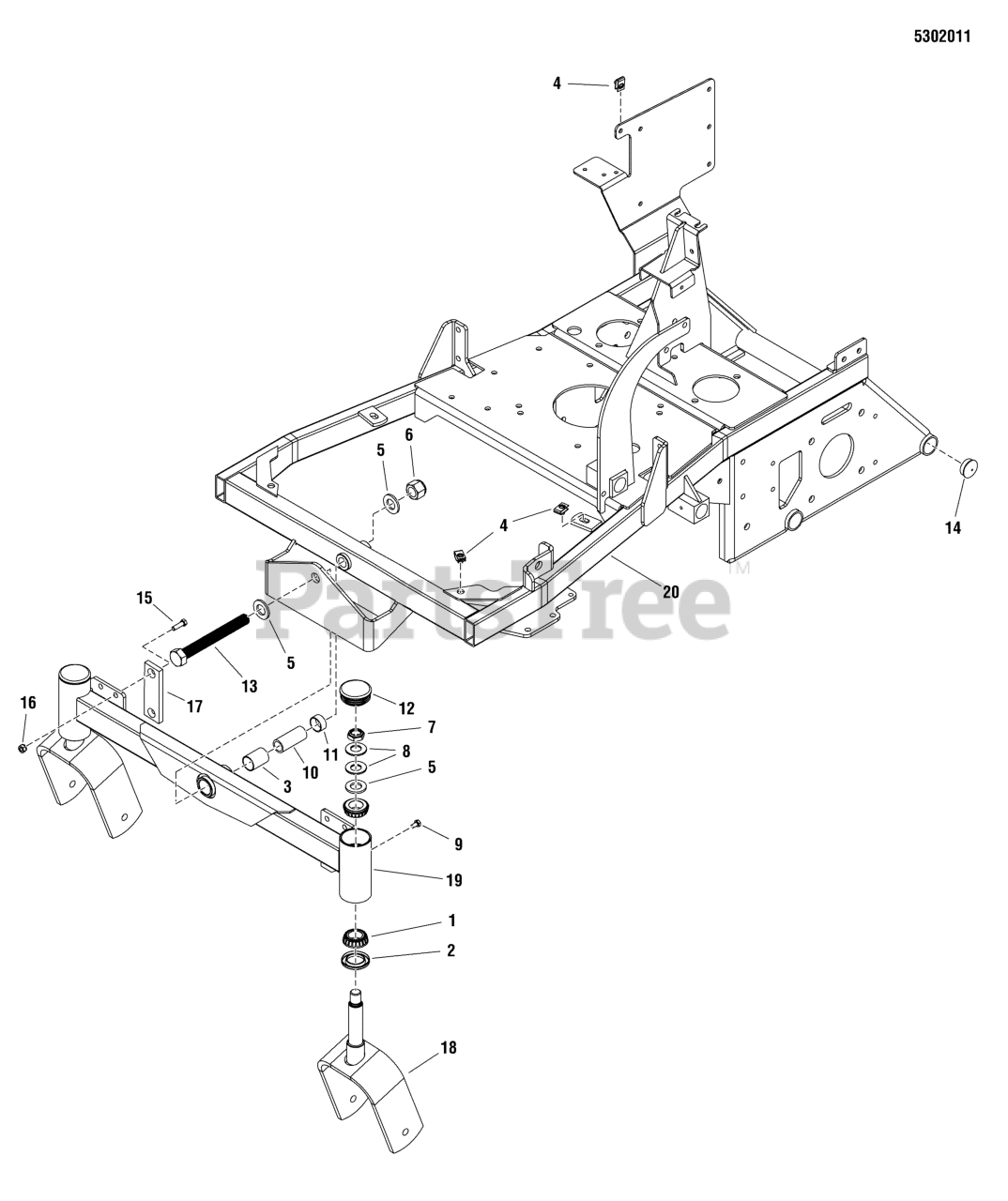

Main Frame Group Parts Diagram

  • Title

1

Snapper Pro 5020884

BEARING, TAPERED ROLLER, 1
(Superseded to 5020884SM)

$25.99

$

In Stock, only 4 left!

0

2

Snapper Pro 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 2 left!

0

3

Snapper Pro 5022852

PIVOT BEARING-1.00 X 1.125 ODX1.50
(Superseded to 5022852SM)

$33.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

5

Snapper Pro 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 1 left!

0

7

Snapper Pro 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5047489

SPACER, .75 X 1.00 X 2.38
(Superseded to 5047489SM)

$35.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5100358

PIVOT BEARING, 1.00 X 1.125 OD X .50
(Superseded to 5100358SM)

$18.99

$

In Stock, only 1 left!

0

12

Snapper Pro 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, only 3 left!

0

13

Snapper Pro 5025265X52

BOLT, 3/4-16 X 6-1/2 YZ GD5
(Superseded to 5025265X52SM)

$15.99

$

In Stock, only 1 left!

0

14

Snapper Pro 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, only 1 left!

0

15

Snapper Pro 5025594

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ
(Superseded to 5025594YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5102702

PAD, FRICTION, .375 X 1.25 X 4.00
(Superseded to 5102702YP)

$6.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5402539D

WELD, CASTER YOKE - RED
(Superseded to 5402539DYP)

$177.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5406506D

WELD, FRONT END PIVOT

$

$

Currently unavailable

20

Snapper Pro 5406161D

WELD, MAIN FRAME, COMPACT RIDER - RED

$

$

Currently unavailable
