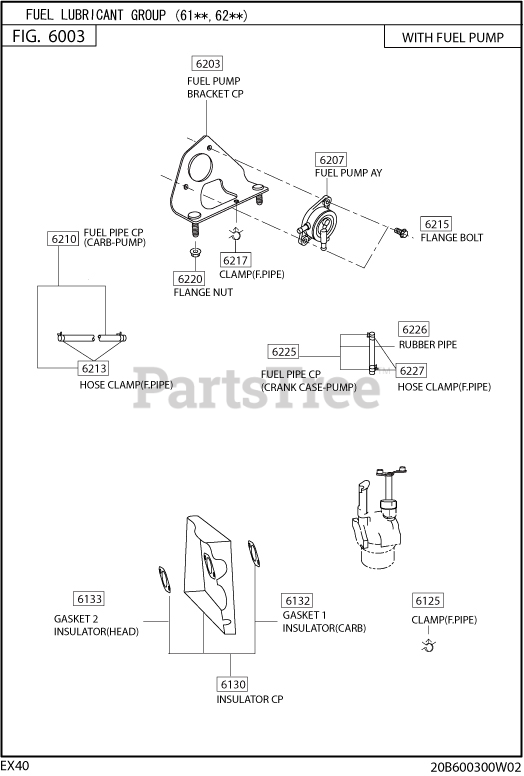

EX400D5250 (EX40) - Subaru Robin Engine 600 Fuel & Lubricant Parts Diagram

Engine

600 Fuel & Lubricant Parts Diagram

  • Title

6102

Subaru Robin 20B-62308-00

CARBURETOR AY

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: FOR FUEL PUMP.

$291.99

$

In Stock, only 3 left!

0

6125

Subaru Robin 056-81200-10

CLAMP

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$3.49

$

Usually ships in 2-12 days

0

6130

Subaru Robin 20B-32901-J1

INSULATOR CP

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$42.99

$

Usually ships in 2-12 days

0

6132

Subaru Robin 20B-35901-H3

GASKET 1

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.5 INSULATOR(CAB).

$5.99

$

Usually ships in 2-12 days

0

6133

Subaru Robin 20B-35902-H3

GASKET 2

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.5 INSULATOR HEAD.

$5.99

$

In Stock, Qty 10

0

6203

20B-65501-01

FUEL PUMP BRACKET CP

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$

$

Not available

6207

Subaru Robin 267-62201-10

FUEL PUMP AY

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: DF52-701A.

$95.99

$

Usually ships in 2-12 days

0

6210

20B-62602-01

FUEL PIPE 2 CP

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX11DX350LCARB-PUMP.

$

$

Not available

6211

085-10621-30

RUBBER PIPE

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX11DX350L.

$

$

Not available

6212

Subaru Robin 056-11000-30

HOSE CLAMP

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10.0D.

$1.99

$

Usually ships in 2-12 days

0

6215

Subaru Robin 011-00601-40

FLANGE BOLT

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X18L.

$2.49

$

Usually ships in 2-12 days

0

6220

Subaru Robin 002-38080-00

FLANGE NUT

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00.

$1.99

$

In Stock, only 4 left!

0

6225

277-62602-21

FUEL PIPE CP

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX11DX130LCRANK CASE-PUMP.

$

$

Not available

6226

085-10619-30

RUBBER PIPE

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX11DX130L.

$

$

Not available

6227

Subaru Robin 056-11000-30

HOSE CLAMP

Note: Start Date: 8/1/2008 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 10.0D.

$1.99

$

Usually ships in 2-12 days

0
