EX800 A (G100) - Honda Generator, Made in Japan (SN: G100-1287874 - G100-9999999) REAR HOUSING Parts Diagram

Generator, Made in Japan

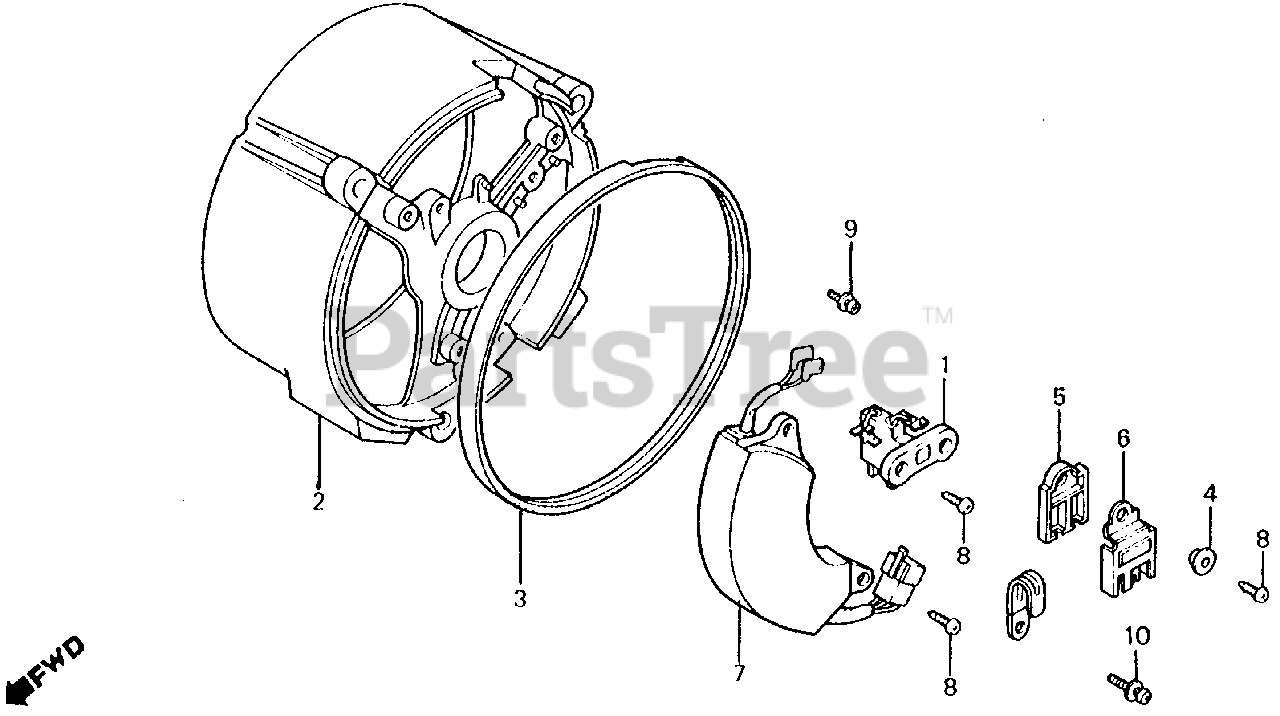

REAR HOUSING Parts Diagram

  • Title
1

Honda 31106-ZA7-003

BRUSH ASSY.

$

$

Not available

2

Honda 31108-ZA7-003ZA

HOUSING, RR. *NH105* (MAT BLACK)

$

$

Currently unavailable

3

Honda 31113-ZA7-003

SEAL, GENERATOR (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31706-880-000

BUSH, INSULATING

$7.99

$

Usually ships in 3-6 days

0

5

Honda 31707-899-003

INSULATOR, DIODE

$17.99

$

Usually ships in 3-6 days

0

6

Honda 31720-899-003

DIODE, D.C.

$

$

Not available

7

Honda 32350-ZA7-003

REGULATOR ASSY., AUTOMATIC VOLTAGE (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90102-899-003

SCREW, PAN (5X12)

Note: Use from Frame SN 1415071.

$3.99

$

Usually ships in 3-6 days

0

9

Honda 93500-05008-3J

SCREW, PAN (5X8)

Note: Use up to Frame SN 1415070.

$1.49

$

Usually ships in 3-6 days

0

10

Honda 93893-05055-00

SCREW-WASHER (5X55) (NOT AVAILABLE)

$

$

Currently unavailable
