EZ 17 (968999502) - Husqvarna 42" Zero-Turn Mower (2007-03) ENGINE 2 Parts Diagram

42" Zero-Turn Mower

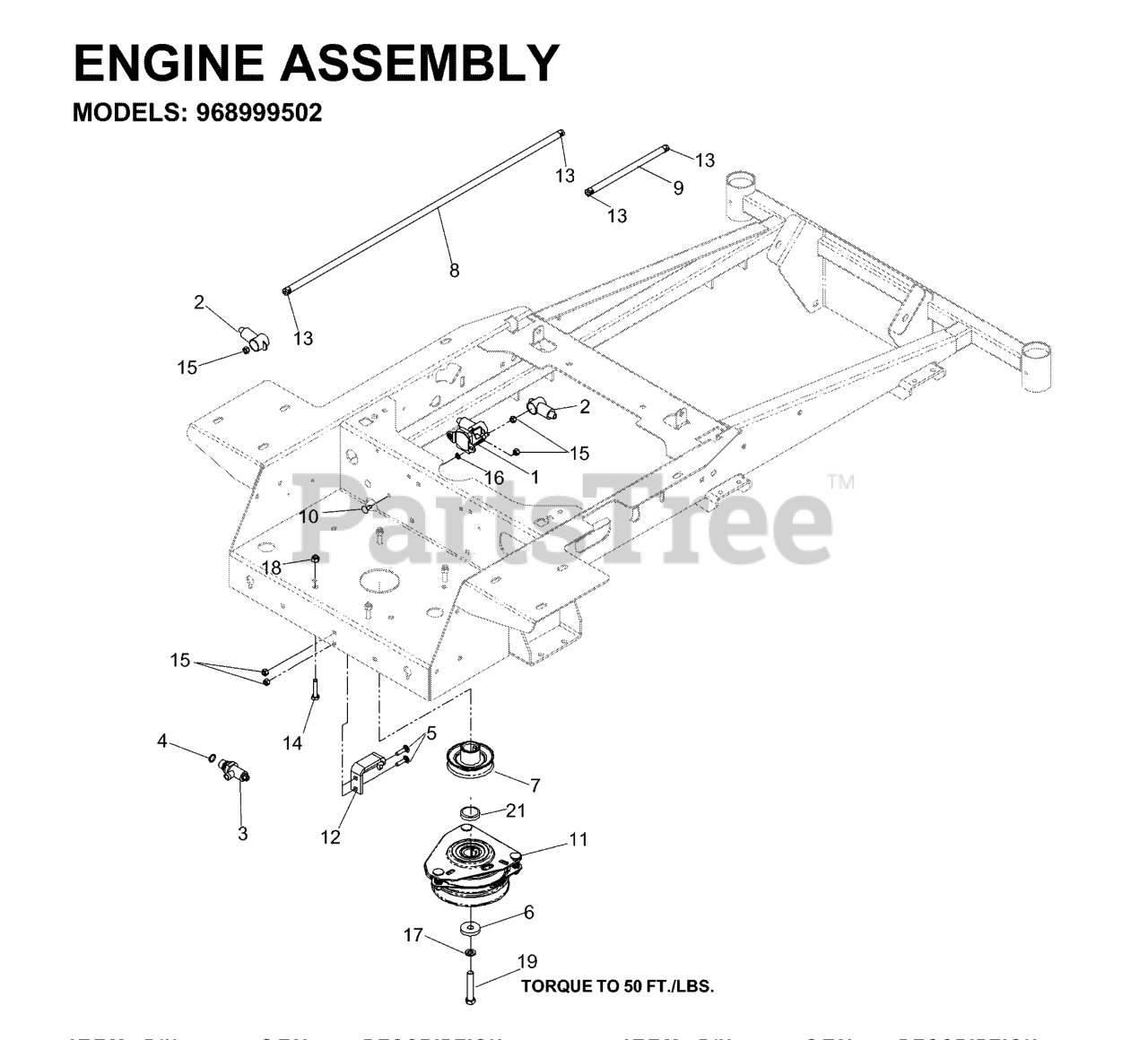

ENGINE 2 Parts Diagram

  • Title

10

Husqvarna 539111786

RHSSNB, 1/4-20X5/8

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

8

Husqvarna 539110424

FUEL LINE 24"
(Superseded to 539107765)

$7.49

$

In Stock, only 3 left!

0

11

Husqvarna 539113977

CLUTCH, 90 FT/LBS

$

$

Not available

2

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

-

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$8.99

$

In Stock, only 1 left!

0

17

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

9

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

18

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539976944

HCS 7/16-20X3-1/2 GR 5 ZN
(Superseded to 581332804)

$4.99

$

In Stock, Qty 5

0

21

Husqvarna 539114541

SPACER, ENGINE, PULLEY

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

1

Husqvarna 539101714

SOLENOID

$26.99

$

In Stock, Qty 20+

0

6

Husqvarna 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, Qty 20+

0

15

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539109587

VALVE ASSEMBLY

$15.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539109618

O-RING

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.49

$

Usually ships in 3-10 days

0

-

Husqvarna 539113598

NEEDS DESCRIPTION

$

$

Currently unavailable

-

Husqvarna 539104415

KAW PIGTAIL

$34.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539112249

CLUTCH TIE DOWN

$

$

Not available

13

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

-

Husqvarna 539102115

TIE-PLASTIC 15X120#

$

$

Not available

7

Husqvarna 539110423

PULLEY

$

$

Not available
